System Specifications

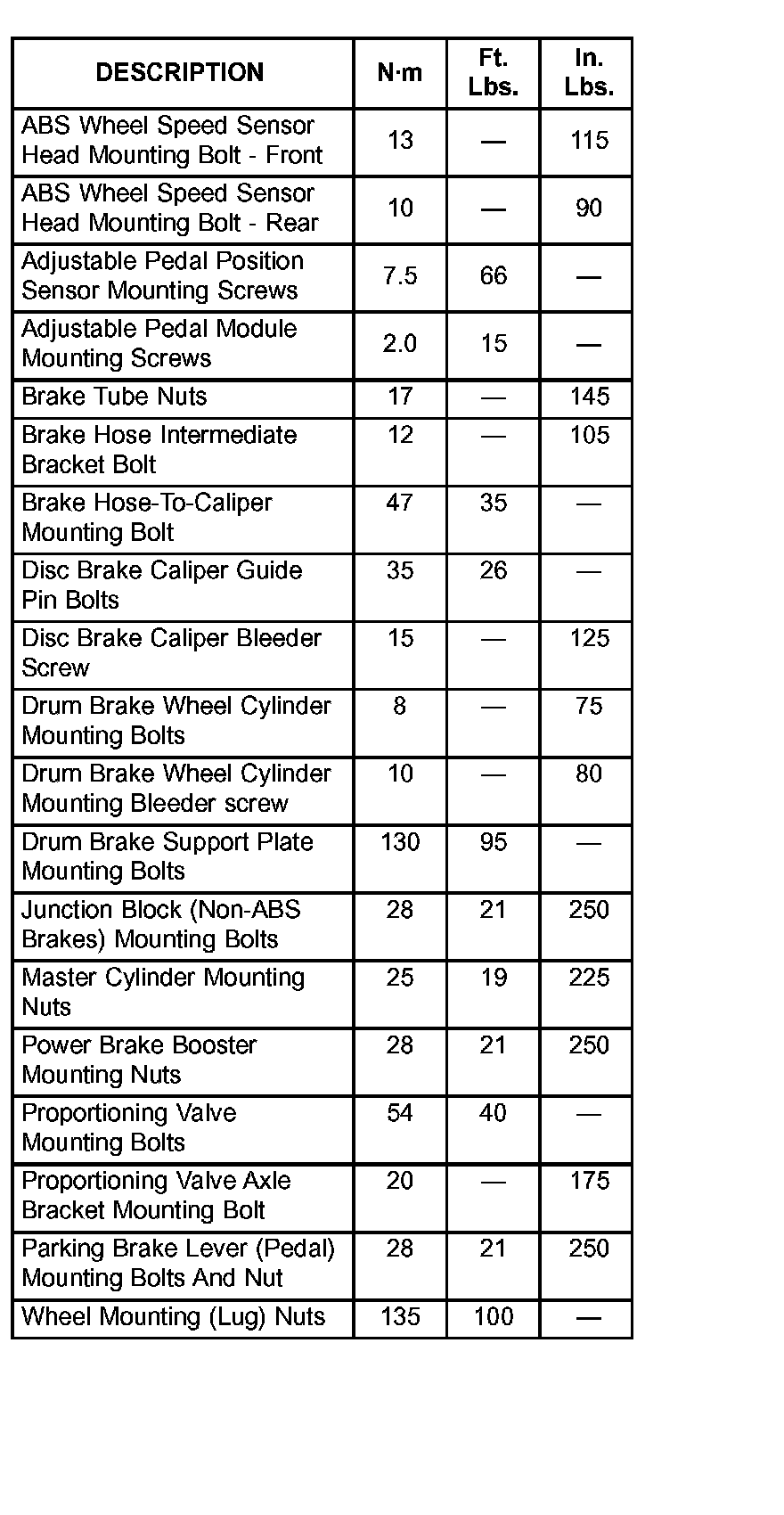

BRAKE FASTENER TORQUE





MASTER CYLINDER





PROPORTIONING VALVE SPECIFICATIONS

BRAKE ROTOR





LIMITS/SPECIFICATIONS

BRAKE ROTOR - EXPORT





LIMITS/SPECIFICATIONS





TONE WHEEL RUNOUT





WHEEL SPEED SENSOR AIR GAP
