Manual Temperature Control Head

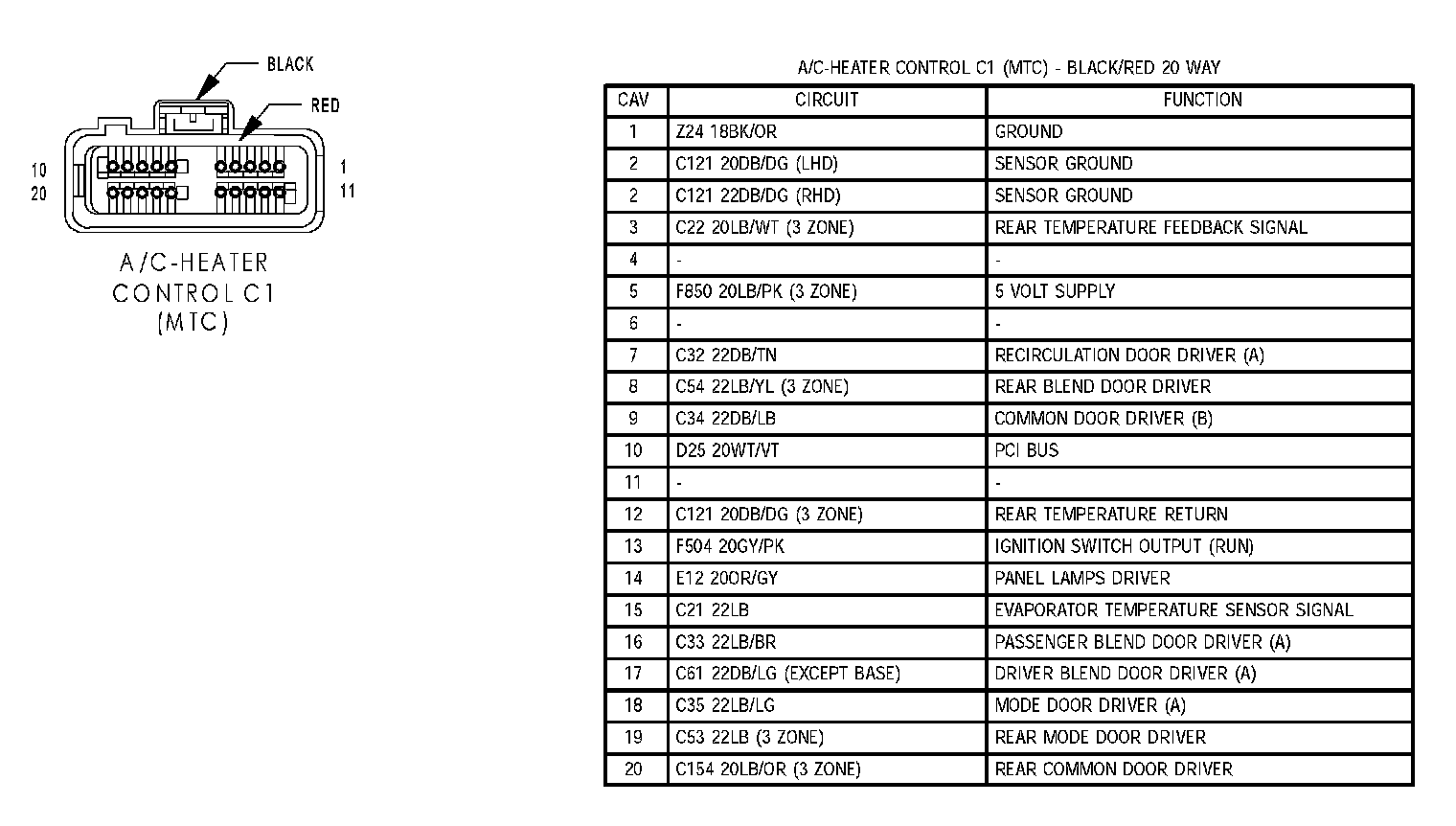

A/C Heater Control C1 (MTC):
A/C Heater Control C2 (MTC):
Rear A/C Heater Unit (3 Zone MTC):
