Illumination Control Module Connector End View (E)

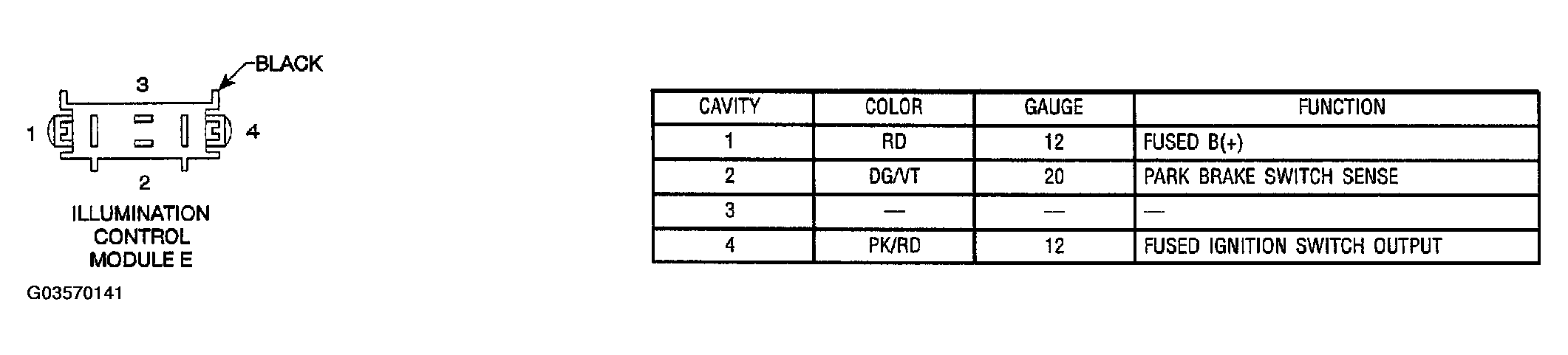

Fig 1: Illumination Control Module Connector End View (E)
G03570141Courtesy of DAIMLERCHRYSLER CORP.
