Left Rear Lamp Assembly Connector End View

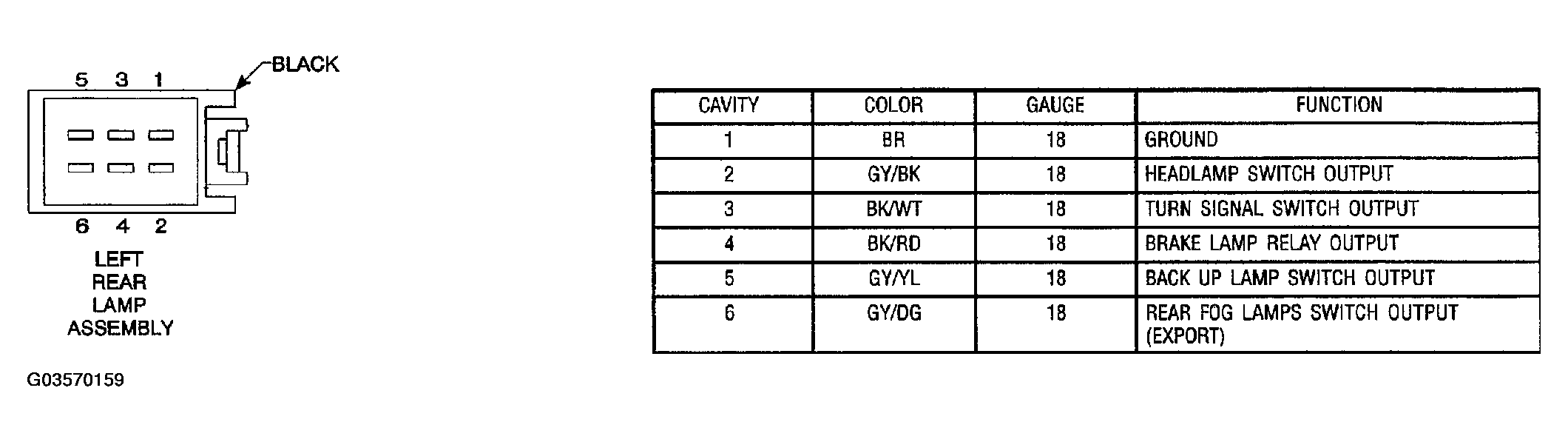

Fig 1: Left Rear Lamp Assembly Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
