Circuit Diagram & Connector Identification

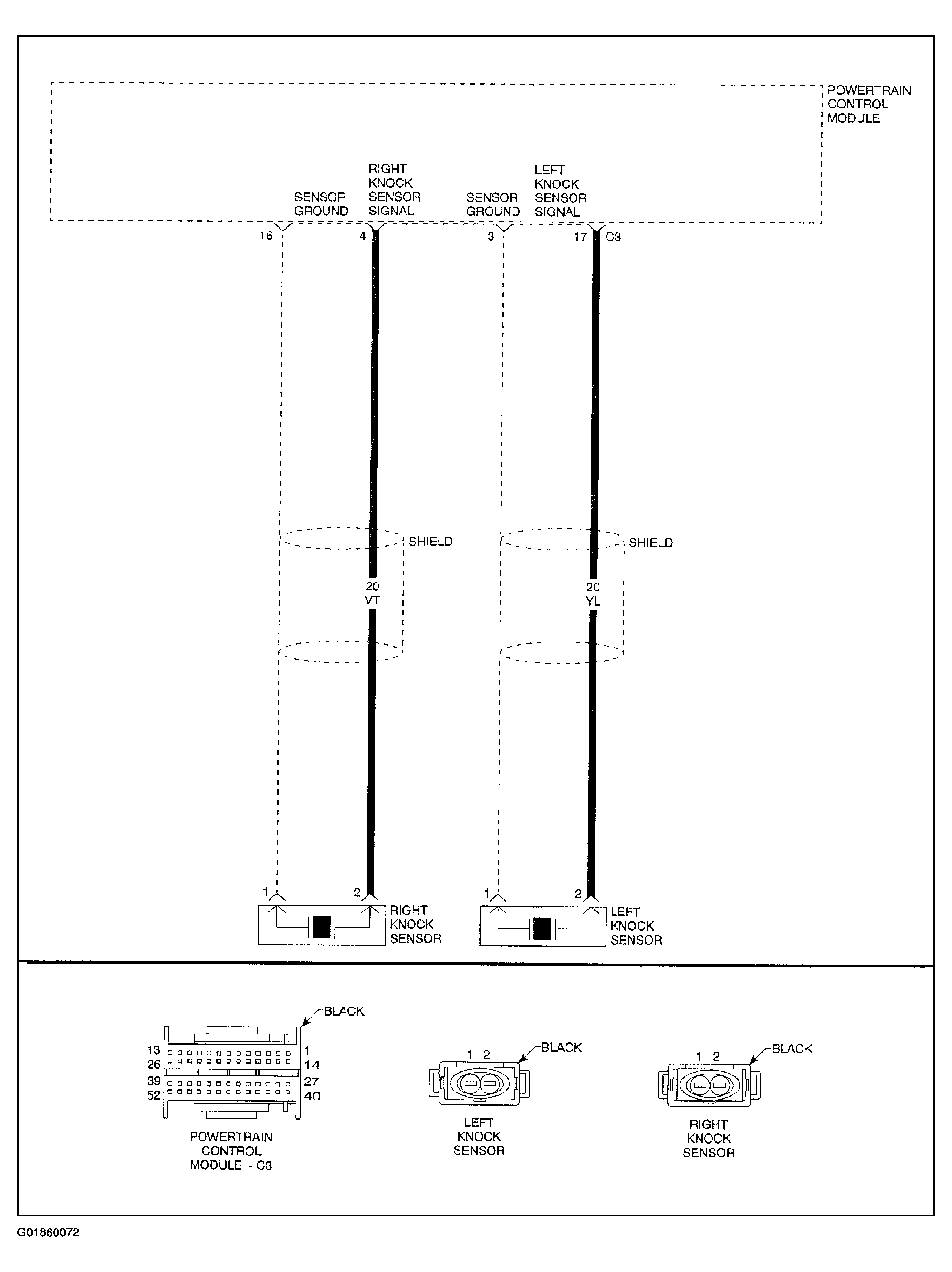

Fig 1: Identifying DTC P0325 Circuit Diagram & Connector Identification
G01860072Courtesy of DAIMLERCHRYSLER CORP.
