Transmission Temp Sensor Specifications

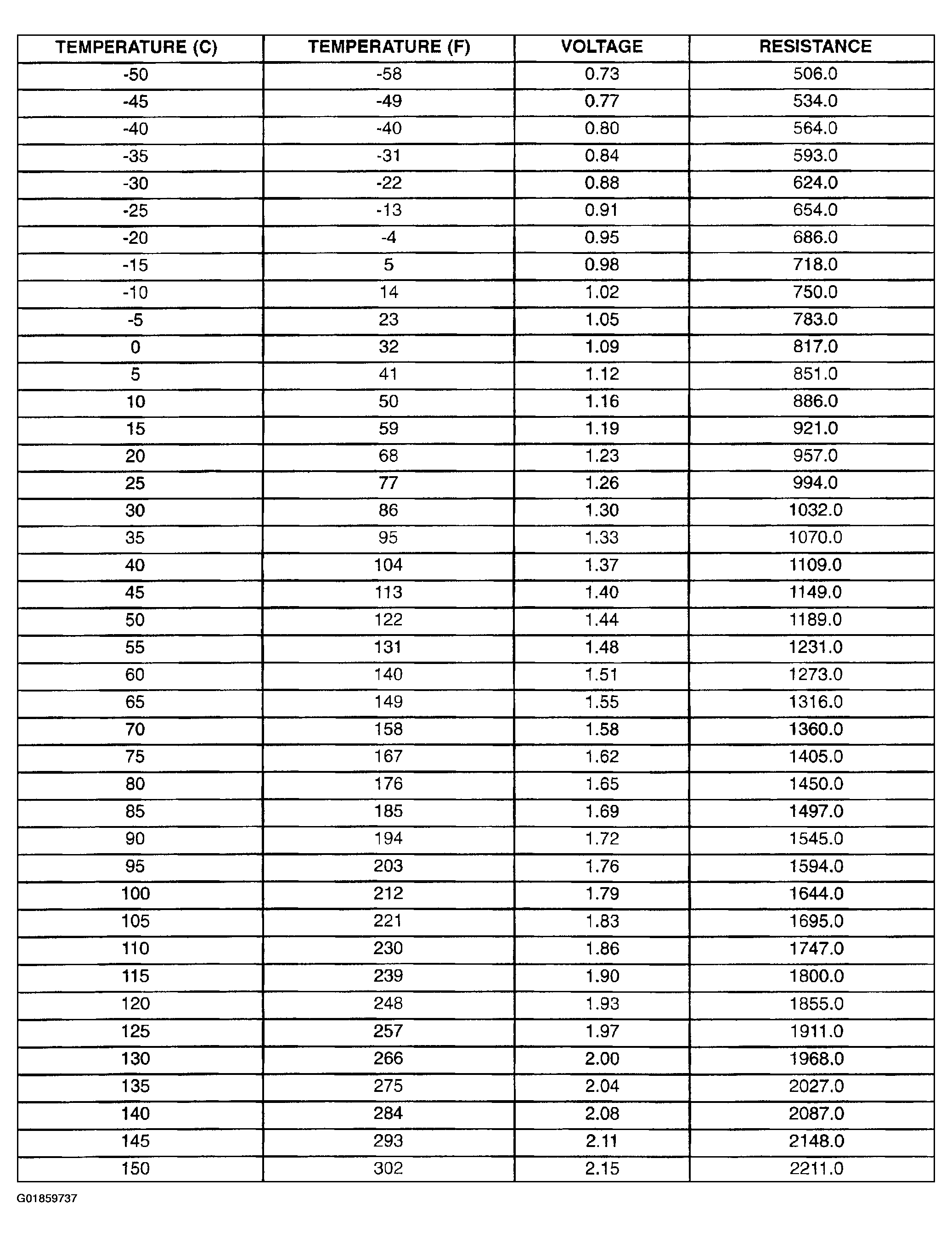

Fig 1: Identifying Transmission Temp Sensor Specifications (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

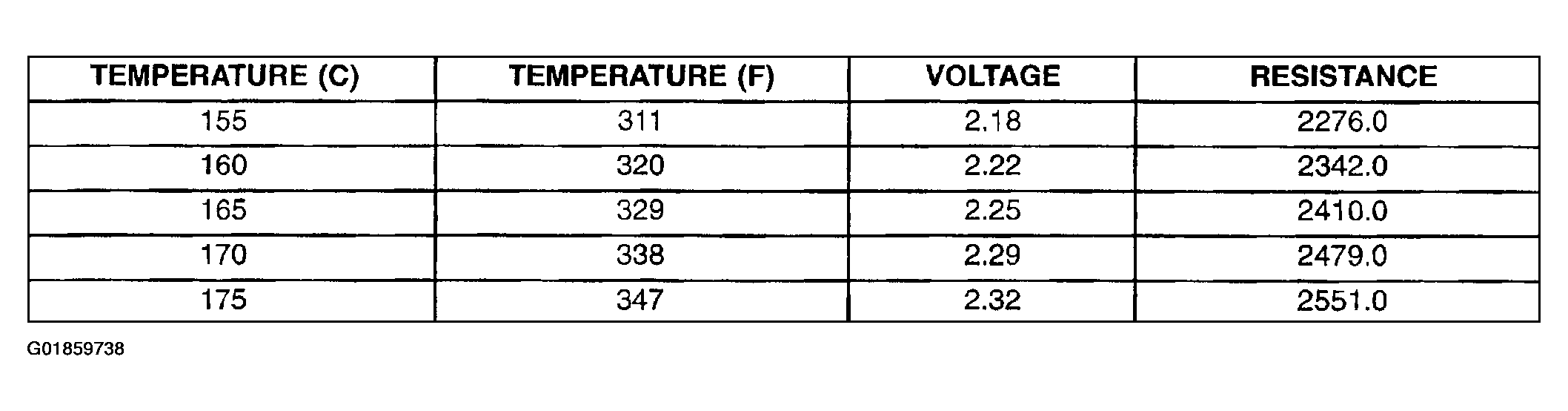

Fig 2: Identifying Transmission Temp Sensor Specifications (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
