*No Response From A/C Heater Control Module
>>
Circuit Diagram & Connector Identification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram & Connector Identification

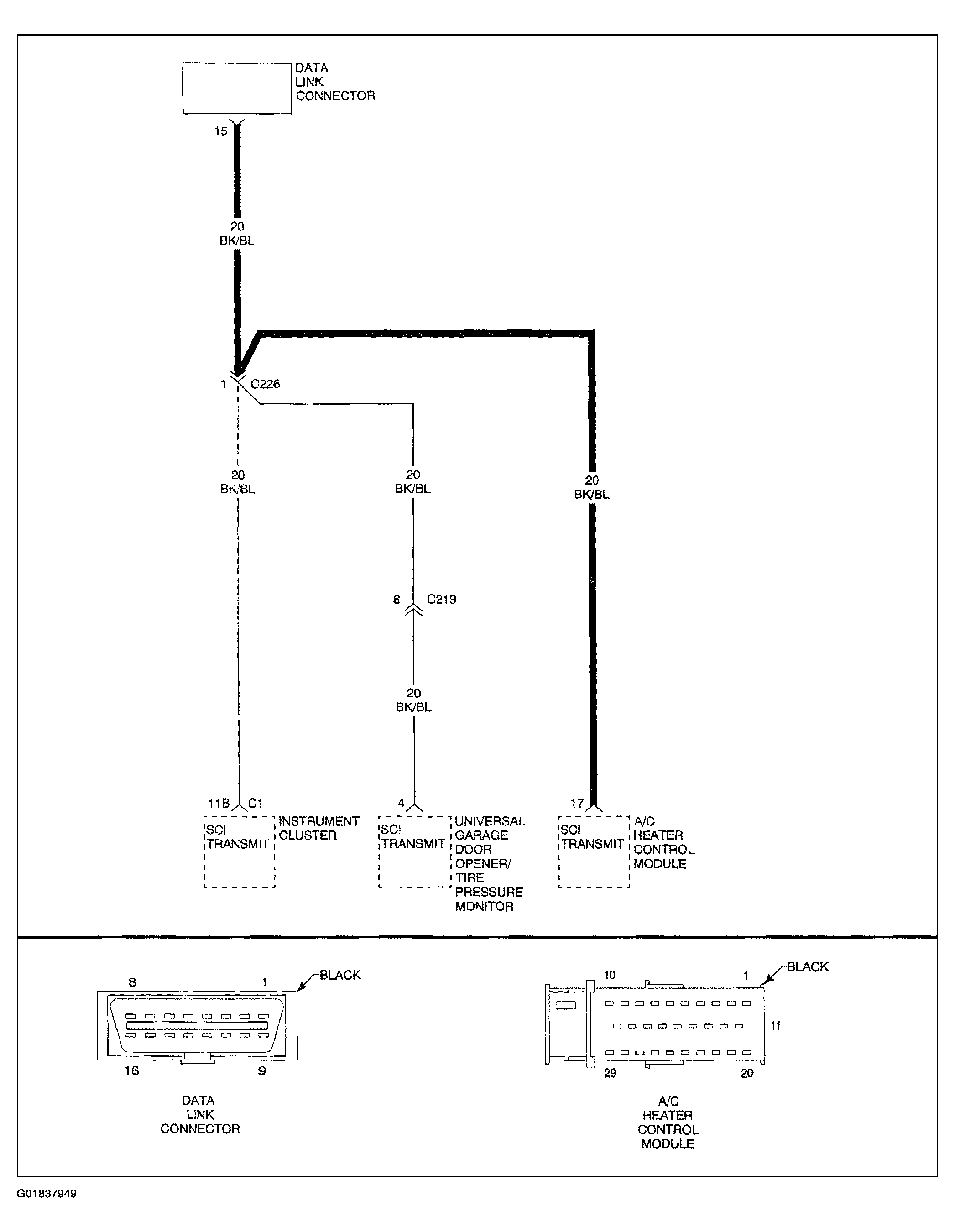

Fig 1: Identifying No Response From A/C Heater Control Module Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
