Circuit Diagram & Connector Identification

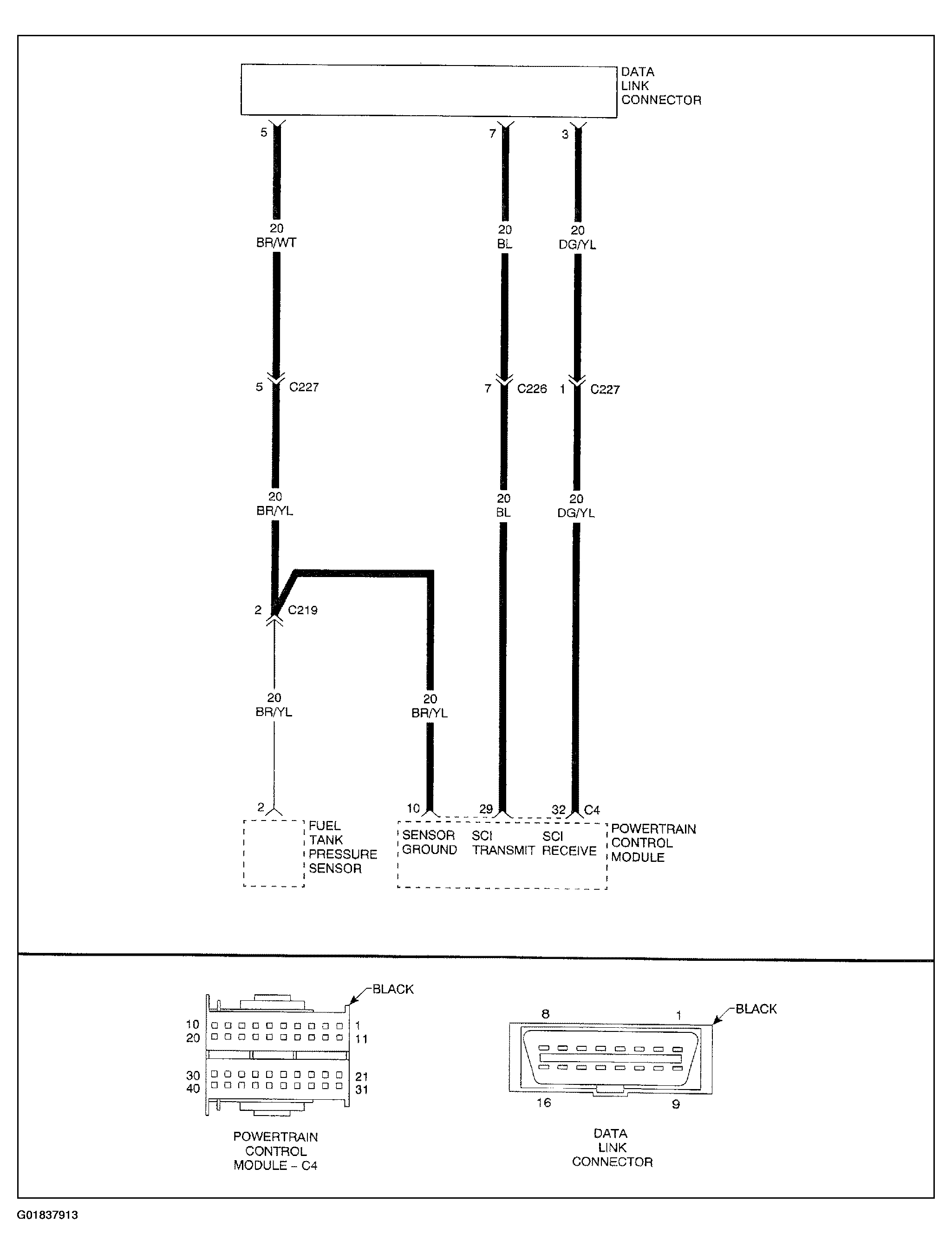

Fig 1: Identifying No Response From Powertrain Control Module Circuit Diagram & Connector Identification
G01837913Courtesy of DAIMLERCHRYSLER CORP.
