Circuit Diagram & Connector Identification

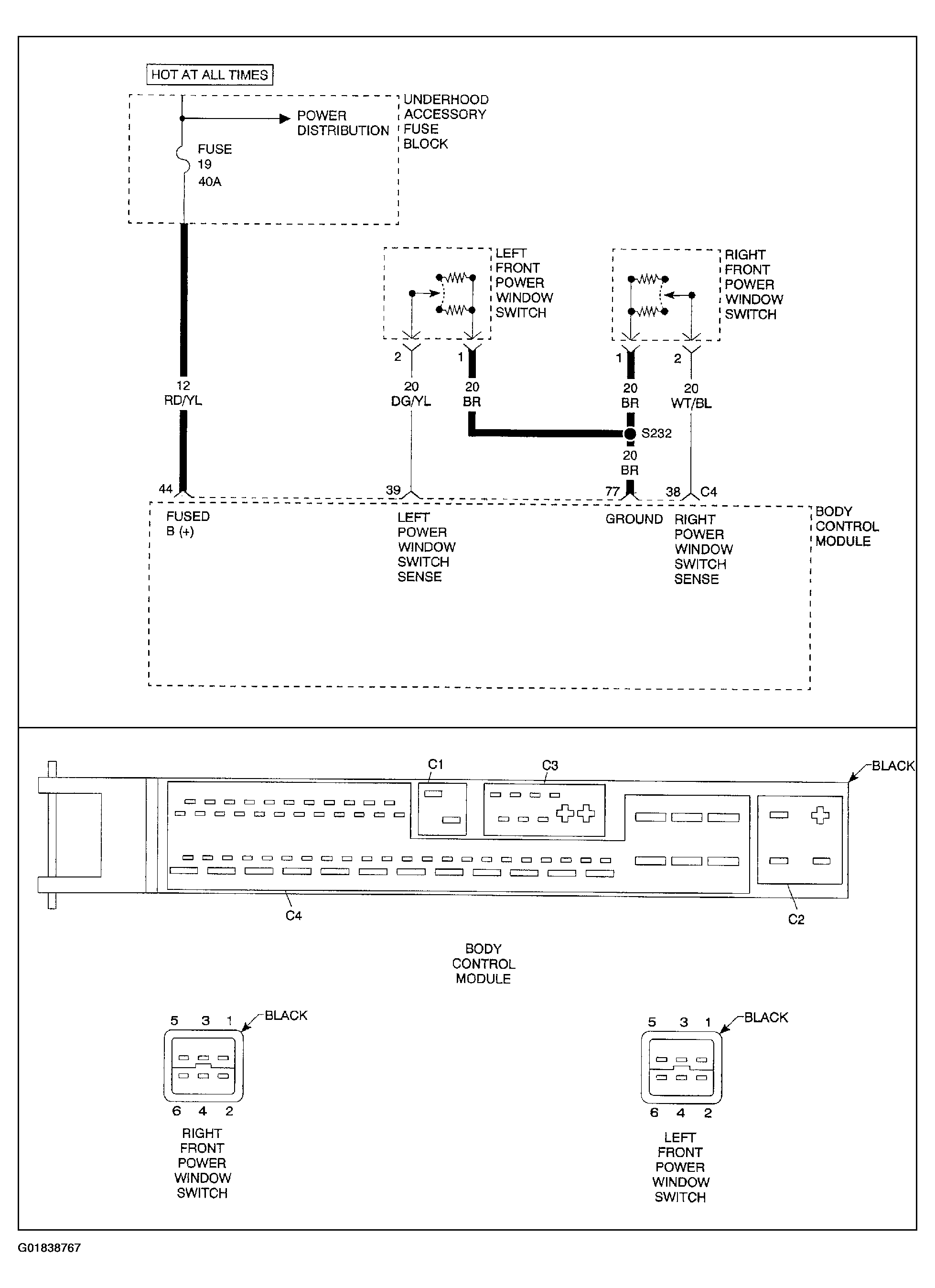

Fig 1: Identifying Both Power Windows Inoperative Circuit Diagram & Connector Identification
G01838767Courtesy of DAIMLERCHRYSLER CORP.
