Circuit Diagram & Connector Identification

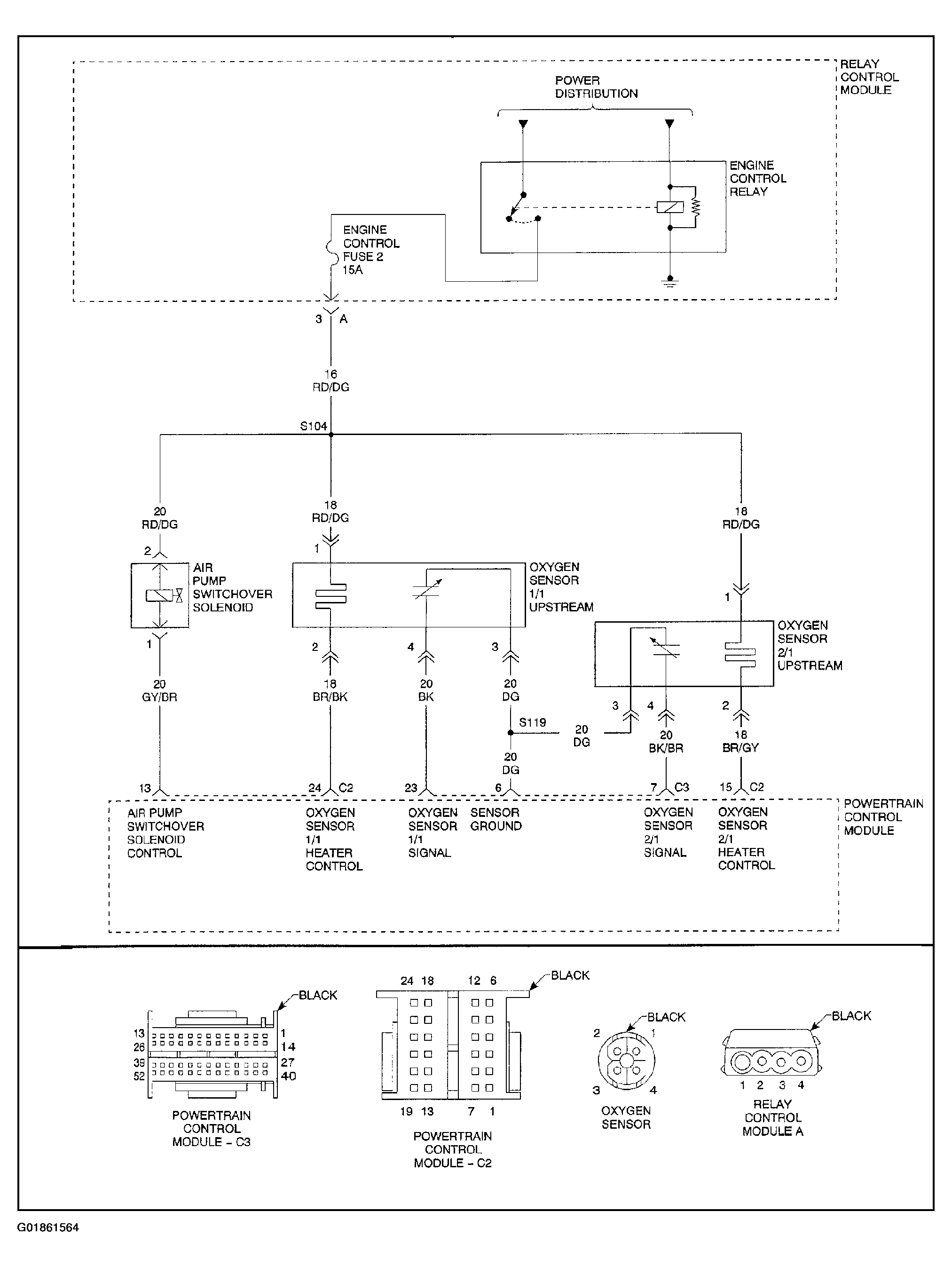

Fig 1: Identifying DTC P0040 Circuit Diagram & Connector Identification
G01861564Courtesy of DAIMLERCHRYSLER CORP.
