Power Seat Switch: Installation

NOTE: Ensure the harness is routed and secured in its original position to avoid potential interference with moving parts.

Install the power seat switch wiring harness in its original location.

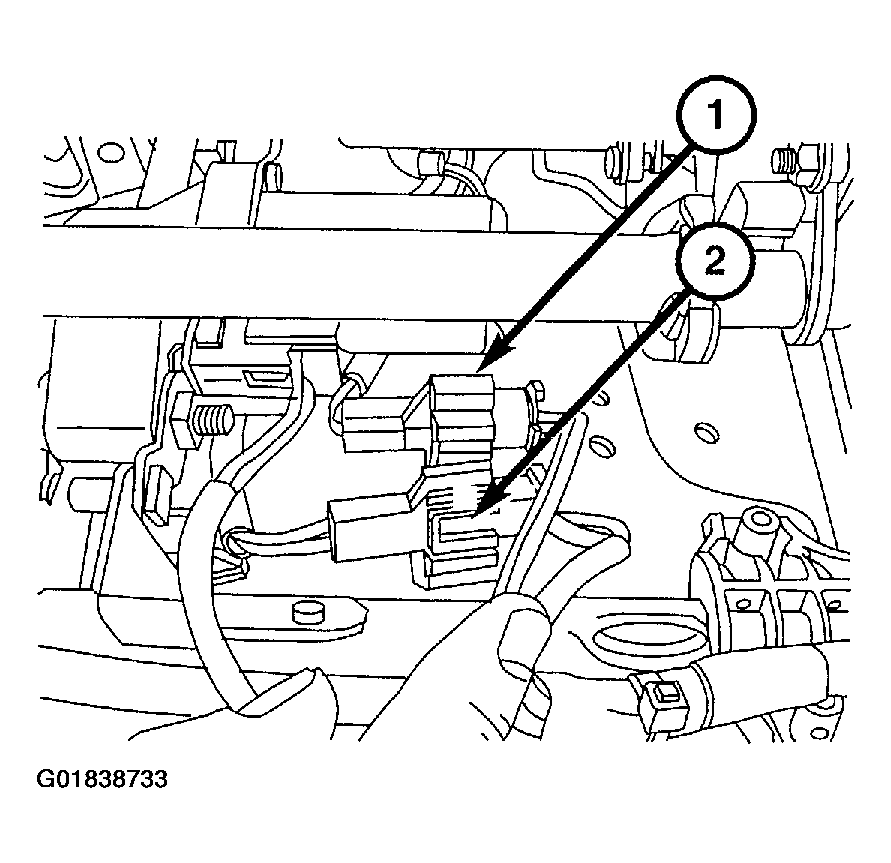

Connect the power seat switch harness connectors (1) and (2).

Fig 1: Connecting Power Seat Switch Harness Connectors
Courtesy of DAIMLERCHRYSLER CORP.

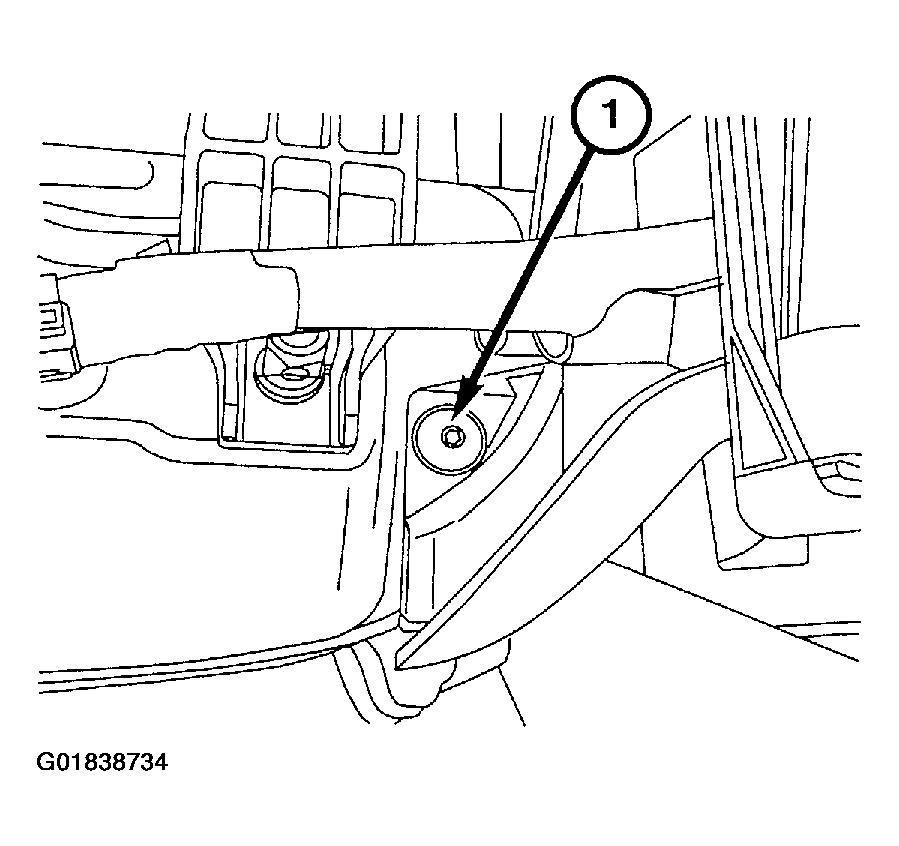

Position the side panel with the switches as one part on the seat base, then install the side panel attaching screw (1).

Fig 2: Positioning & Installing Side Panel With Switches
Courtesy of DAIMLERCHRYSLER CORP.
Install the front seat. See BODY article.
Connect the negative battery cable.
