Rear Wheel Speed Sensor: Removal

  1. Remove the bolt (1) attaching the wheel speed sensor to the rear knuckle.
  2. Remove the rear wheel speed sensor (2) from the knuckle.
  3. Pull the rubber grommet (1) out of the body. Unhook the wheel speed sensor wire harness from the mount (2).
    Fig 1: Removing Rear Wheel Speed Sensor
    G01837688Courtesy of DAIMLERCHRYSLER CORP.
    Fig 2: Unhooking Wheel Speed Sensor Wire Harness
    G01837689Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the wheel speed sensor harness connector (1).

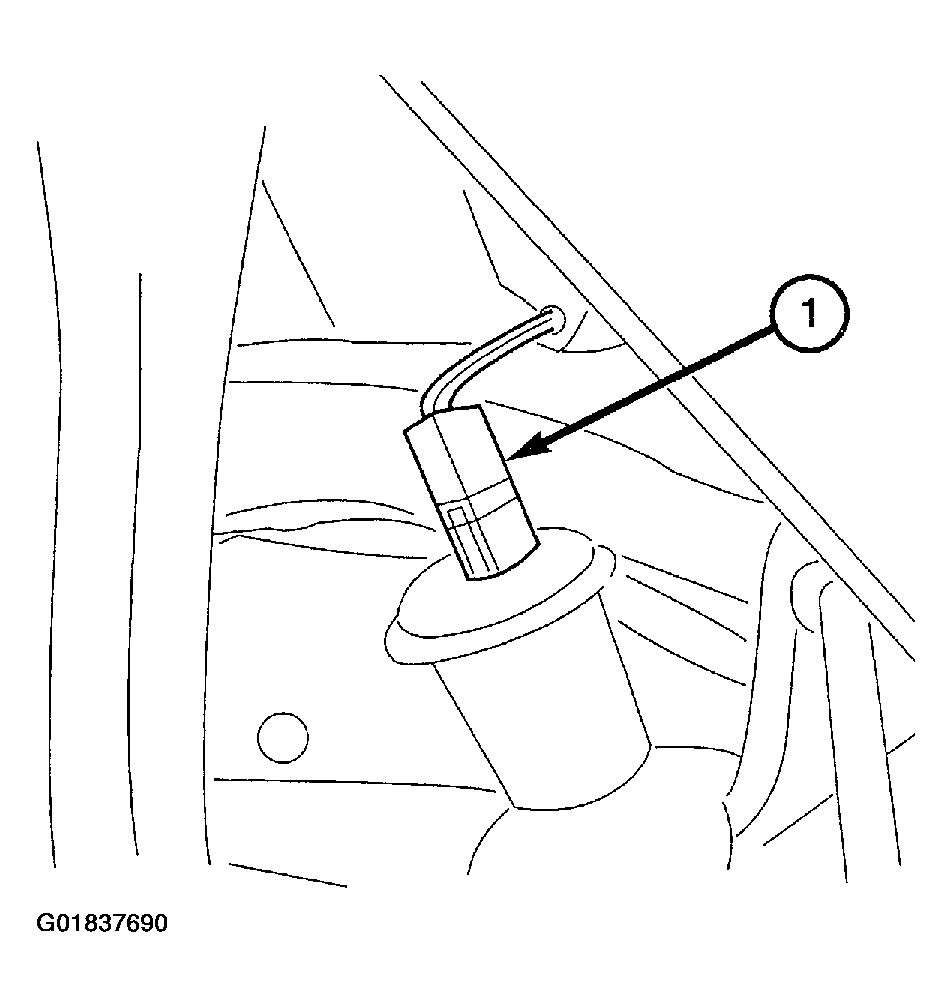

    Fig 3: Disconnecting Wheel Speed Sensor Harness Connector
    G01837690Courtesy of DAIMLERCHRYSLER CORP.
