Coil On Plug Connector End View (6)

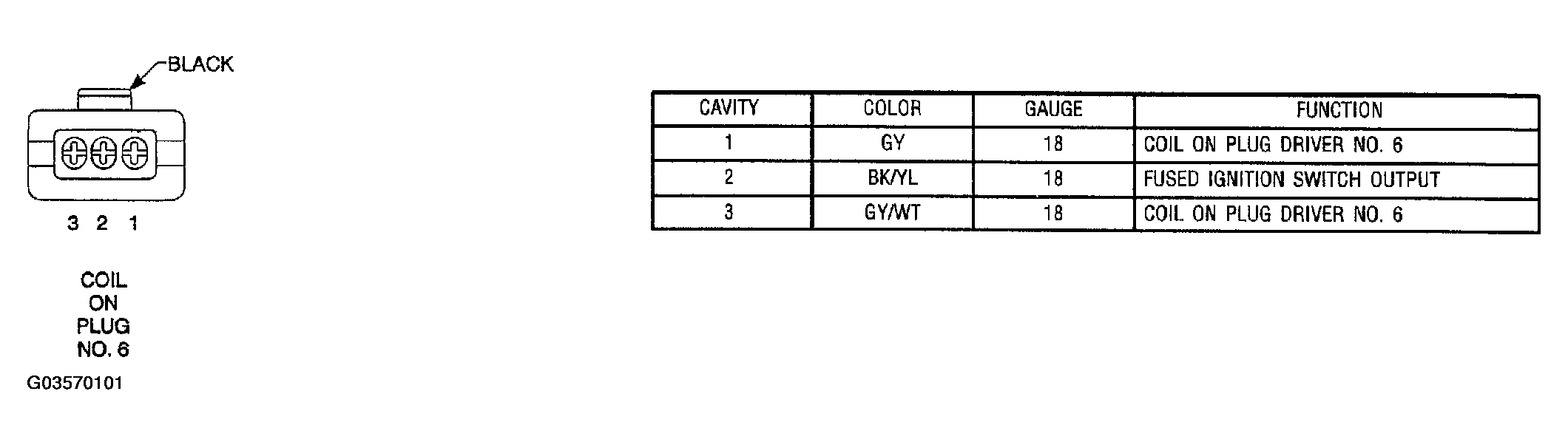

Fig 1: Coil On Plug Connector End View (6)
Courtesy of DAIMLERCHRYSLER CORP.
