EVAP Purge Solenoid: Removal

  1. Disconnect harness connector from solenoid (2).
  2. Disconnect vapor hoses (1 and 4) from solenoid (3).
  3. Remove solenoid (3) from bracket (5).

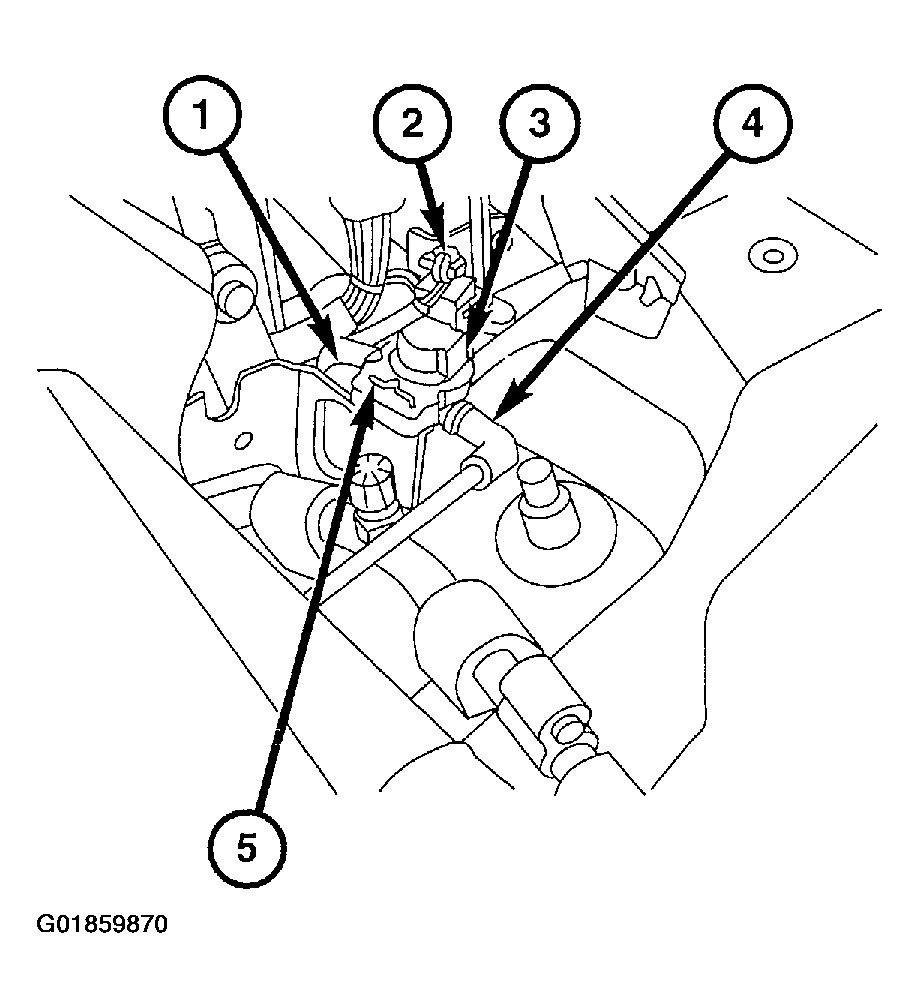

    Fig 1: Disconnecting Harness Connector, Vapor Hoses & Solenoid
    G01859870Courtesy of DAIMLERCHRYSLER CORP.
