Upstream Oxygen Sensor 1/1 Connector End View

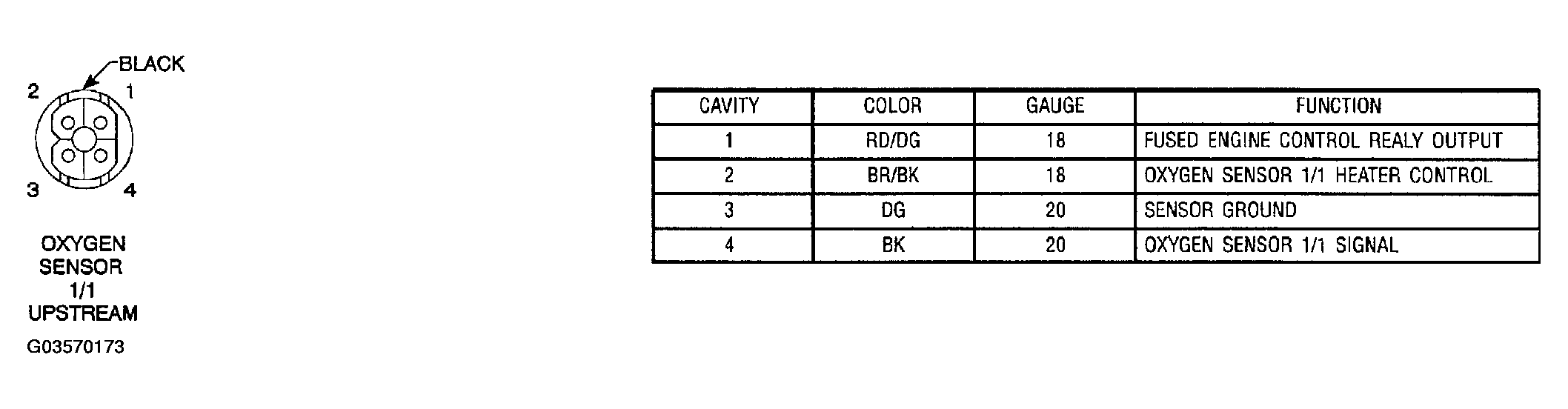

Fig 1: Upstream Oxygen Sensor 1/1 Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
