Rack & Pinion Power Steering System: Damper: Installation

  1. Install the steering damper into the vehicle.
  2. Install the nut and bolt to the drag link. Tighten to 40 N.m (29 ft. lbs.).
  3. Install the bolt and nut (1) to the steering damper bracket. Tighten to 40 N.m (29 ft. lbs.).

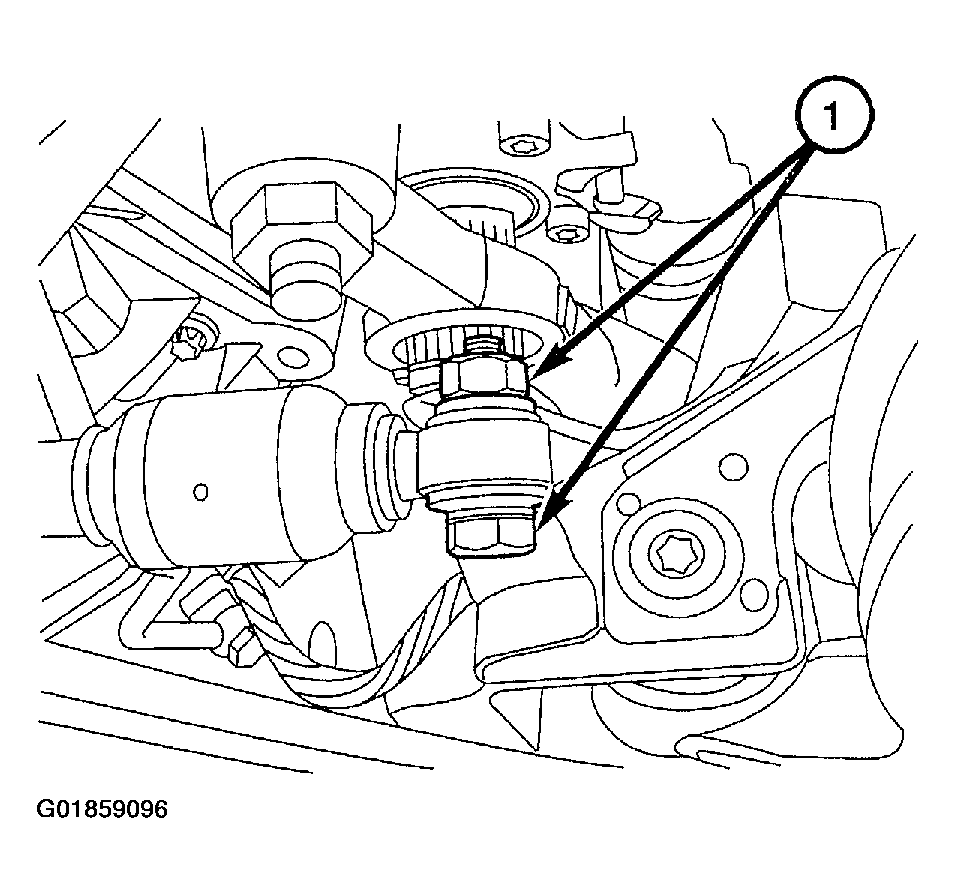

    Fig 1: Installing Damper
    G01859096Courtesy of DAIMLERCHRYSLER CORP.
