Pitman Arm: Installation

Remove any oil and grease from the splined section of the pitman arm shaft and the pitman arm.
Install the pitman arm (1) to the pitman arm shaft (2).

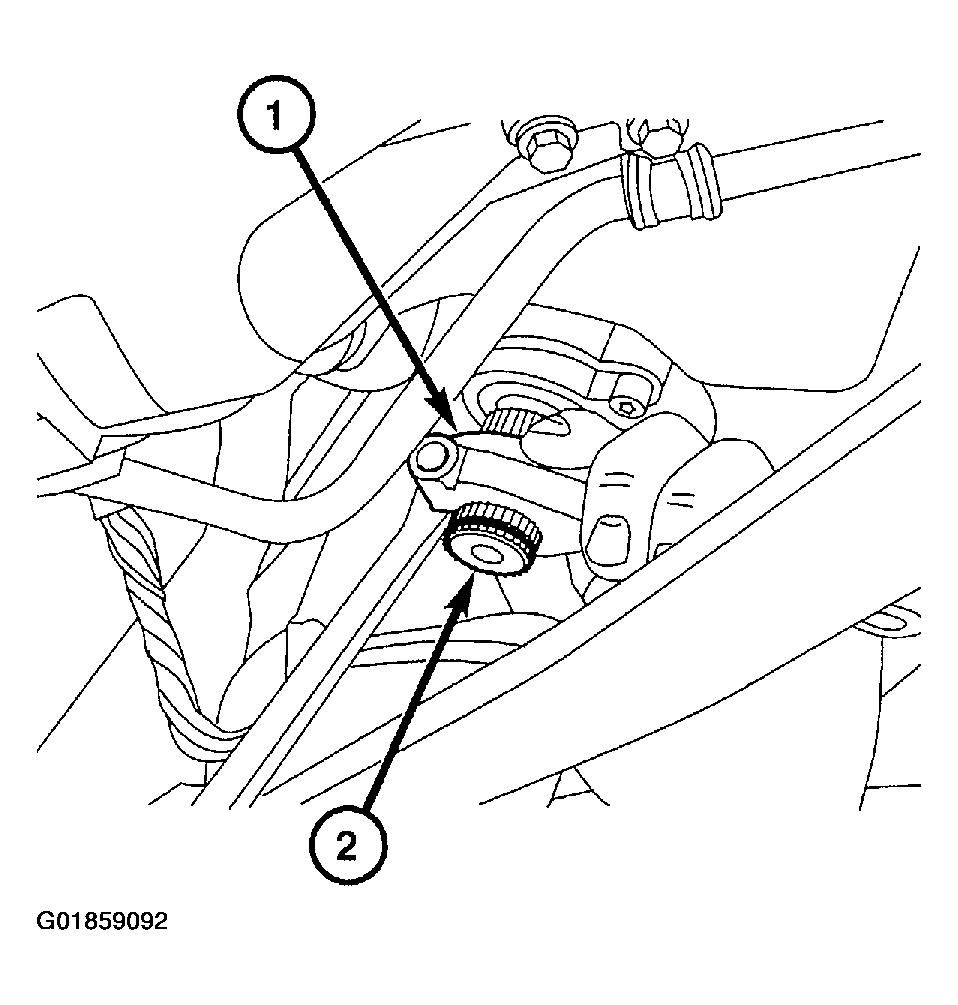

Fig 1: Installing Pitman Arm To Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Install the snap ring (2).

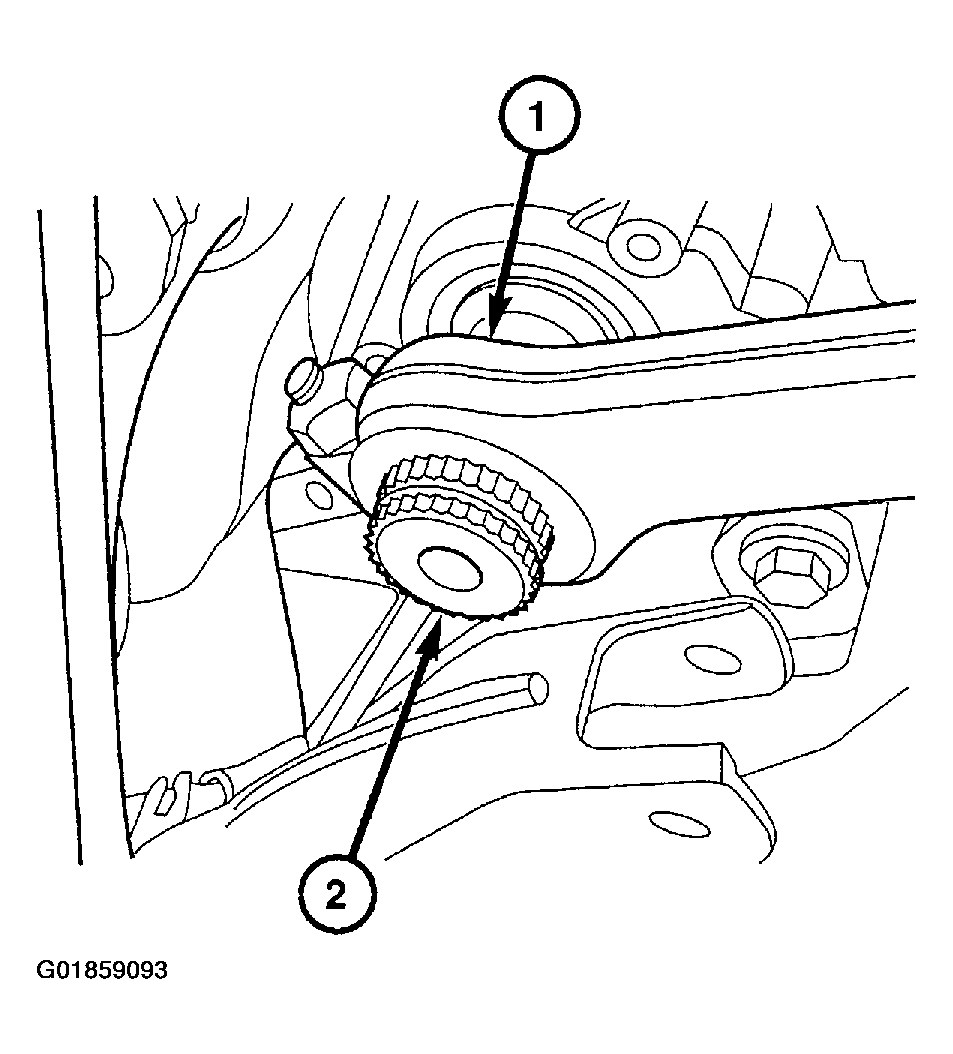

Fig 2: Installing Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Install the pitman arm to the previously measured depth of measurement "A". Tighten the pinch bolt to 55 N.m (41 ft. lbs.).

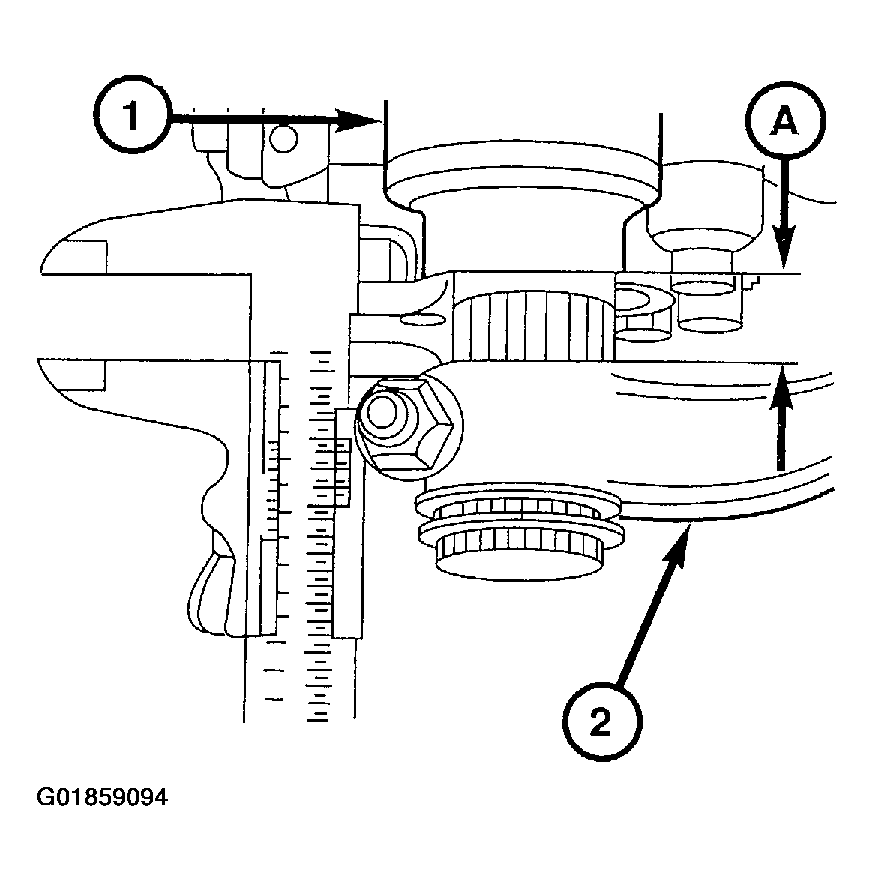

Fig 3: Installing Pitman Arm To Measured Depth Of Measurement "A"
Courtesy of DAIMLERCHRYSLER CORP.
