Torque Specifications

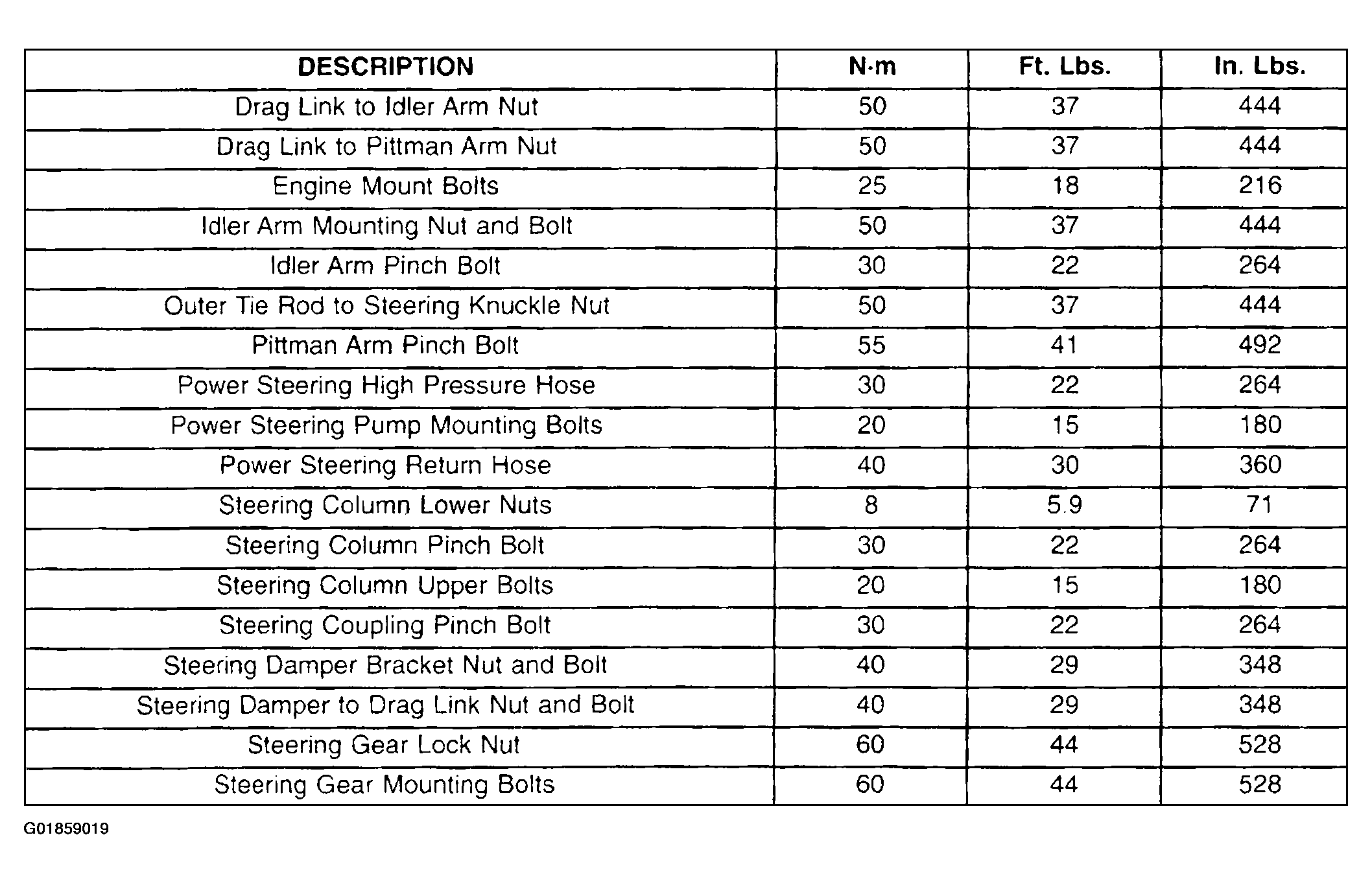

Fig 1: Fastener Tightening Torque Specifications Table

G01859019

Courtesy of DAIMLERCHRYSLER CORP.
