Checking and Adjusting Rear Axle Toe

STANDARD PROCEDURE - CHECKING AND ADJUSTING REAR AXLE TOE





1. Check the vehicle level at the front and rear axles and adjust if necessary.
2. Check the vehicle level at the front and rear axles with an electronic inclinometer and adjust if necessary.

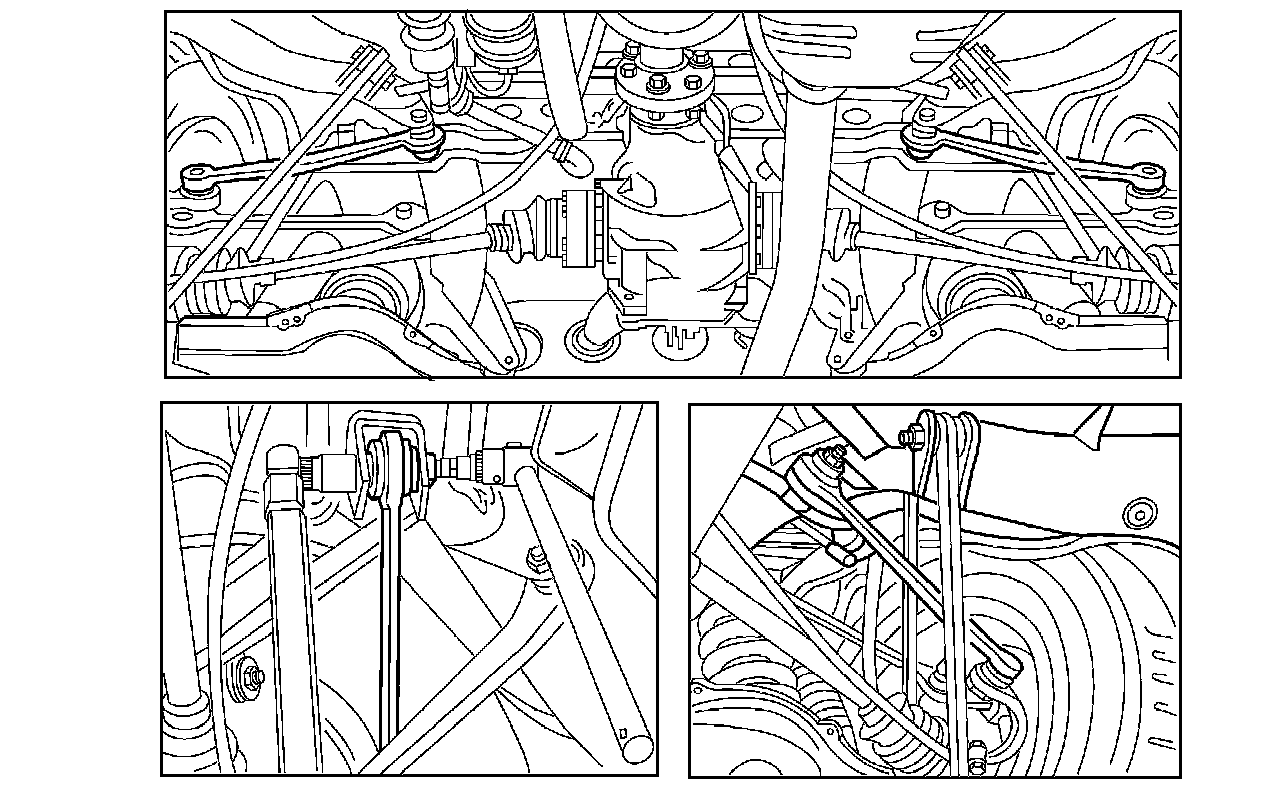

3. Adjust the toe with the cam bolt on the mounting of the left and right tie rod on rear axle carrier.
