Junction Block C6 Connector End View

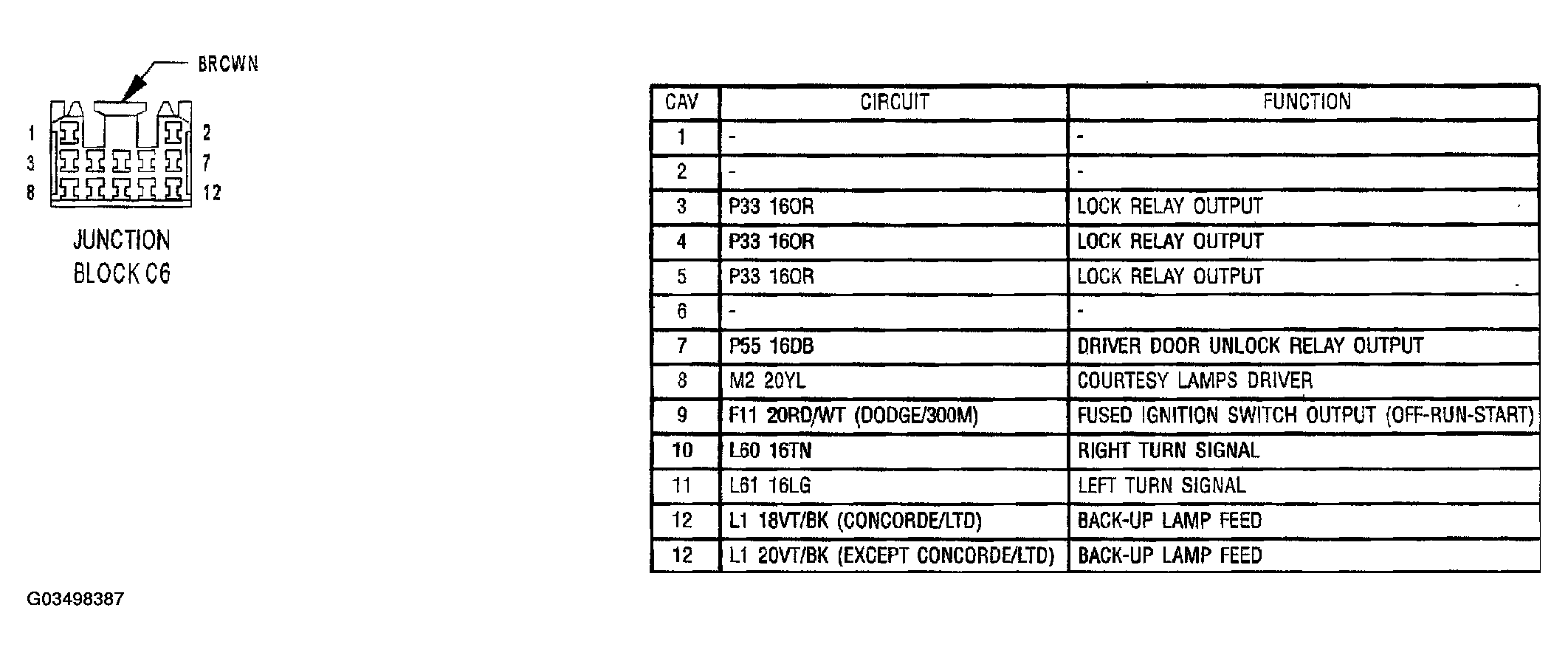

Fig 1: Junction Block Connector End View (C6)
Courtesy of DAIMLERCHRYSLER CORP.
