Specifications - Body Opening Dimension

SPECIFICATIONS - BODY OPENING DIMENSION

DESCRIPTION	FIGURE
WINDSHIELD AND FRONT DOOR OPENINGS	Fig 1
REAR DOOR OPENINGS - CONCORDE/300M	Fig 2
REAR DOOR OPENINGS - INTREPID	Fig 3
REAR WINDOW AND TRUNK OPENING - CONCORDE	Fig 4
REAR WINDOW AND TRUNK OPENINGS - INTREPID	Fig 5
REAR WINDOW AND TRUNK OPENINGS - 300M	Fig 6

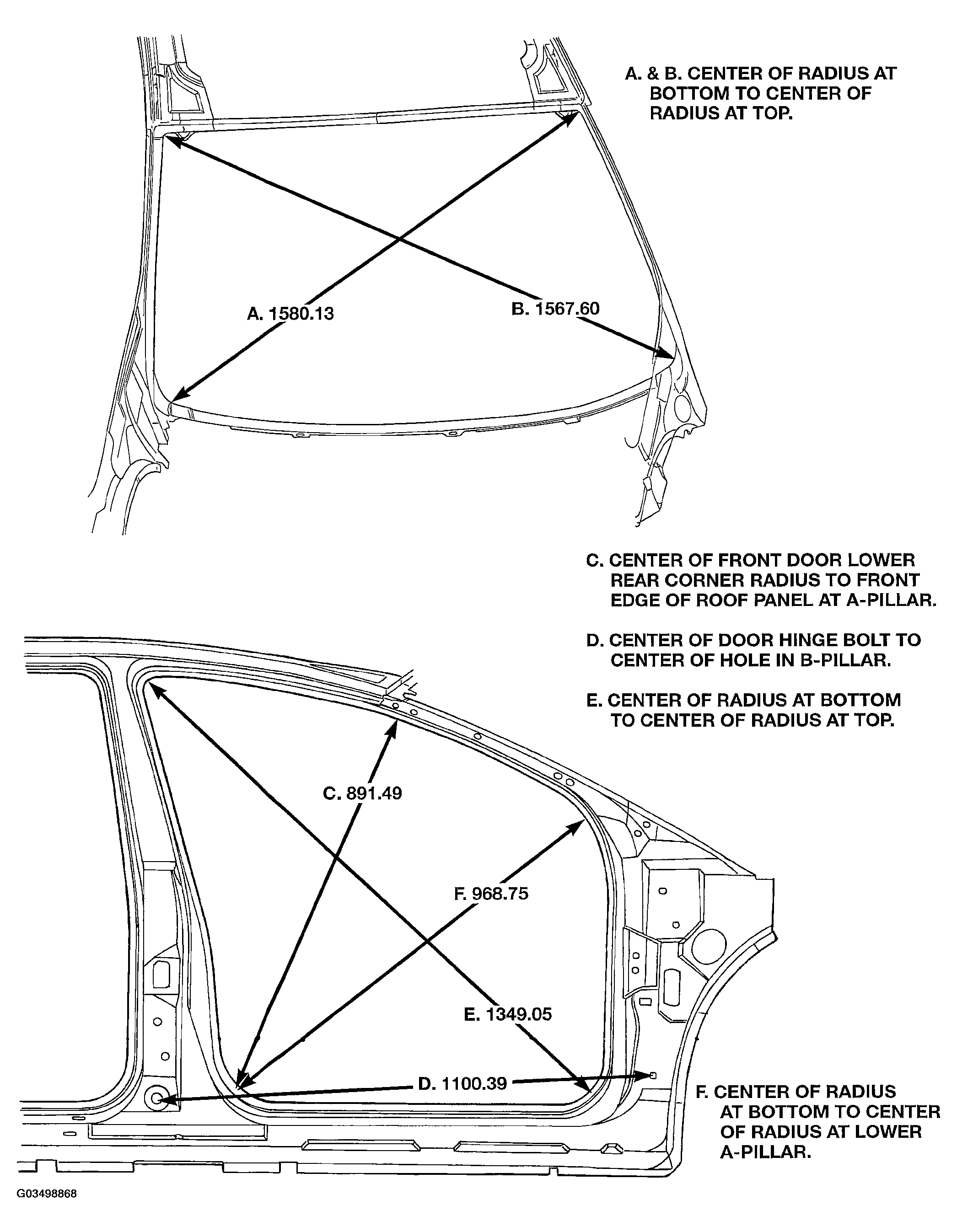

Fig 1: Windshield And Front Door Openings

G03498868

Courtesy of DAIMLERCHRYSLER CORP.

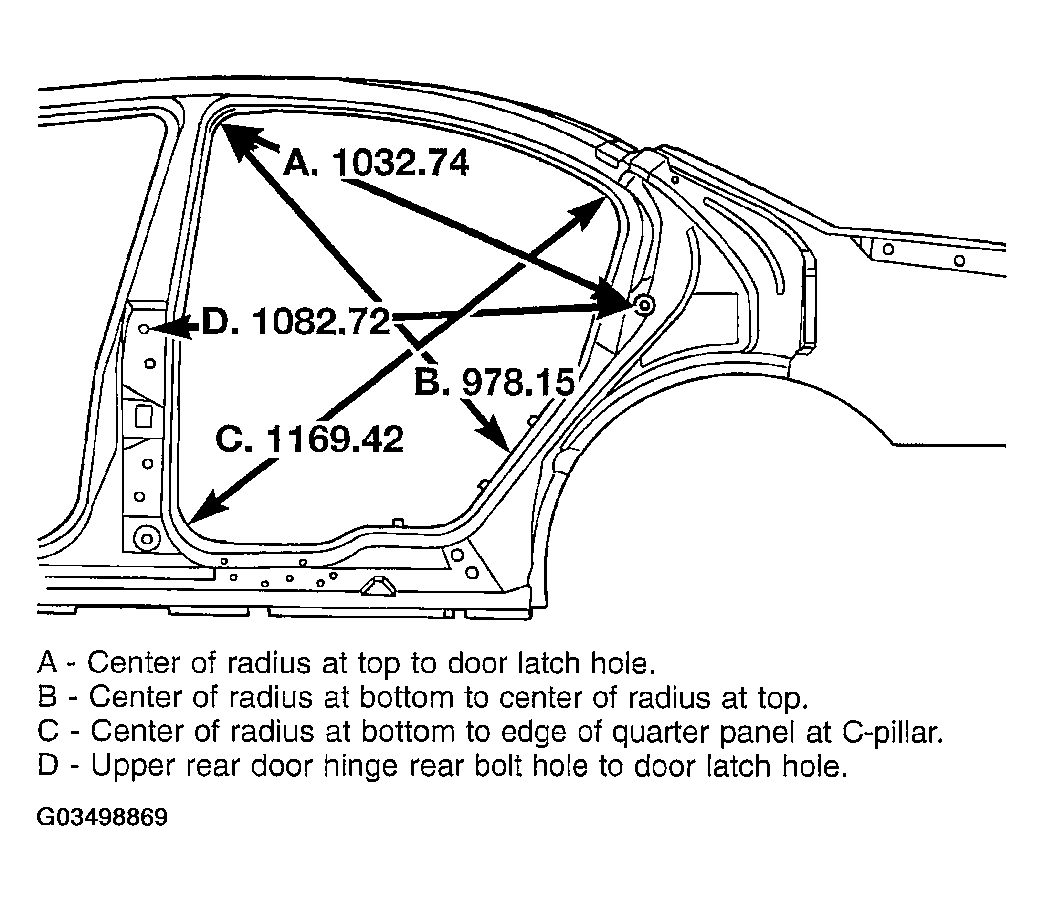

Fig 2: Rear Door Openings - Concorde/300M

G03498869

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Rear Door Openings - Intrepid

G03498870

Courtesy of DAIMLERCHRYSLER CORP.

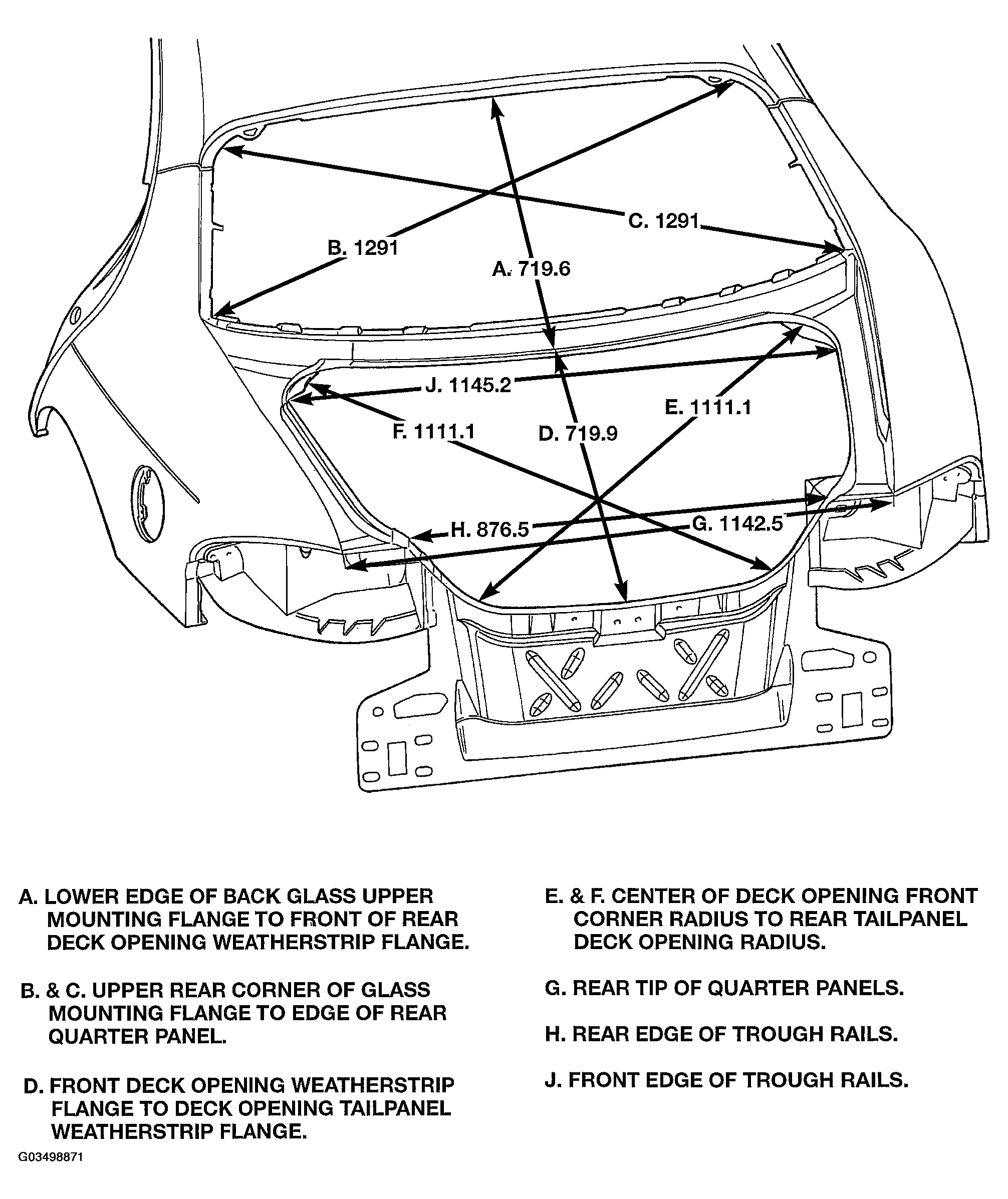

Fig 4: Rear Window And Trunk Opening - Concorde

G03498871

Courtesy of DAIMLERCHRYSLER CORP.

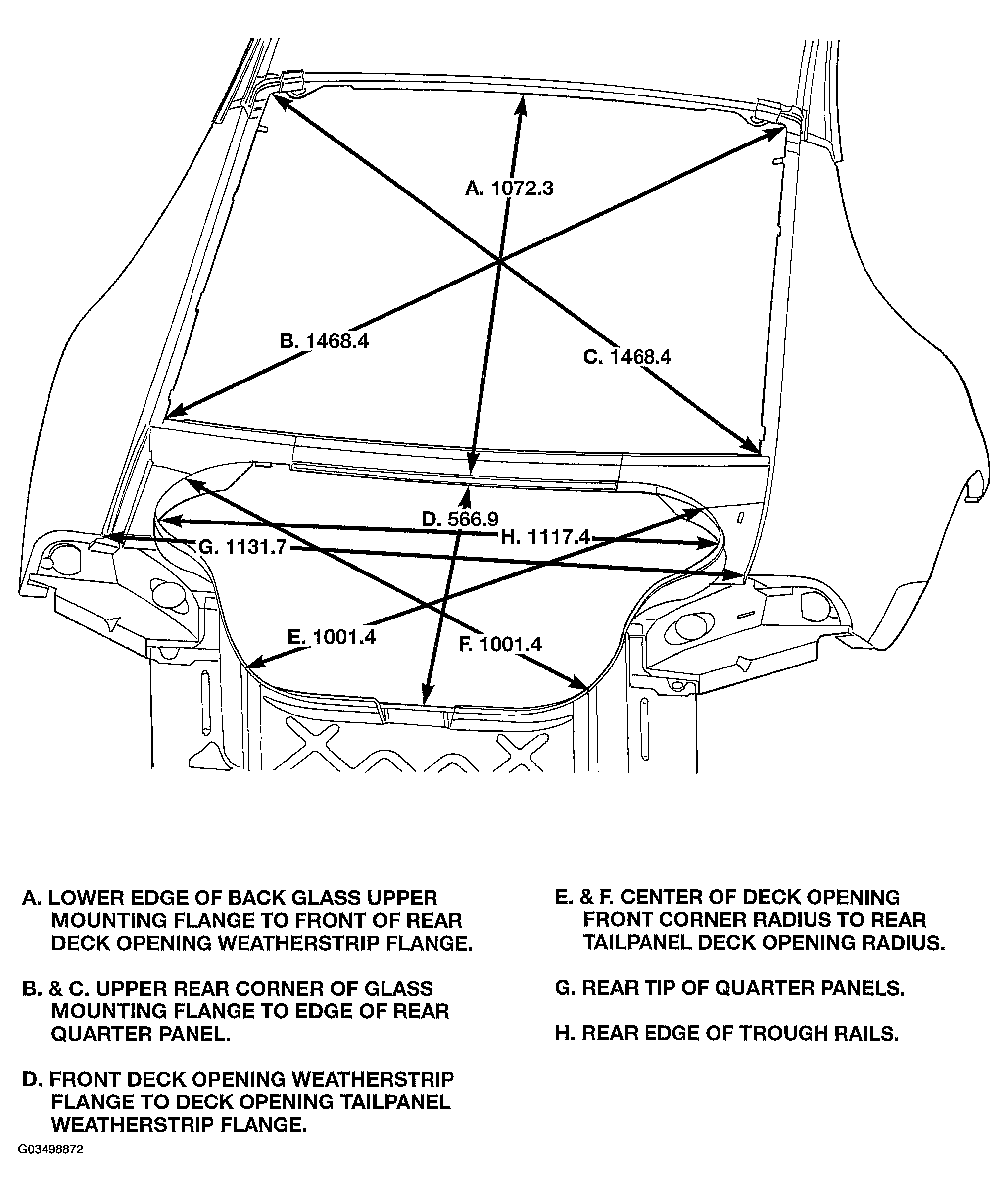

Fig 5: Rear Window And Trunk Openings - Intrepid

G03498872

Courtesy of DAIMLERCHRYSLER CORP.

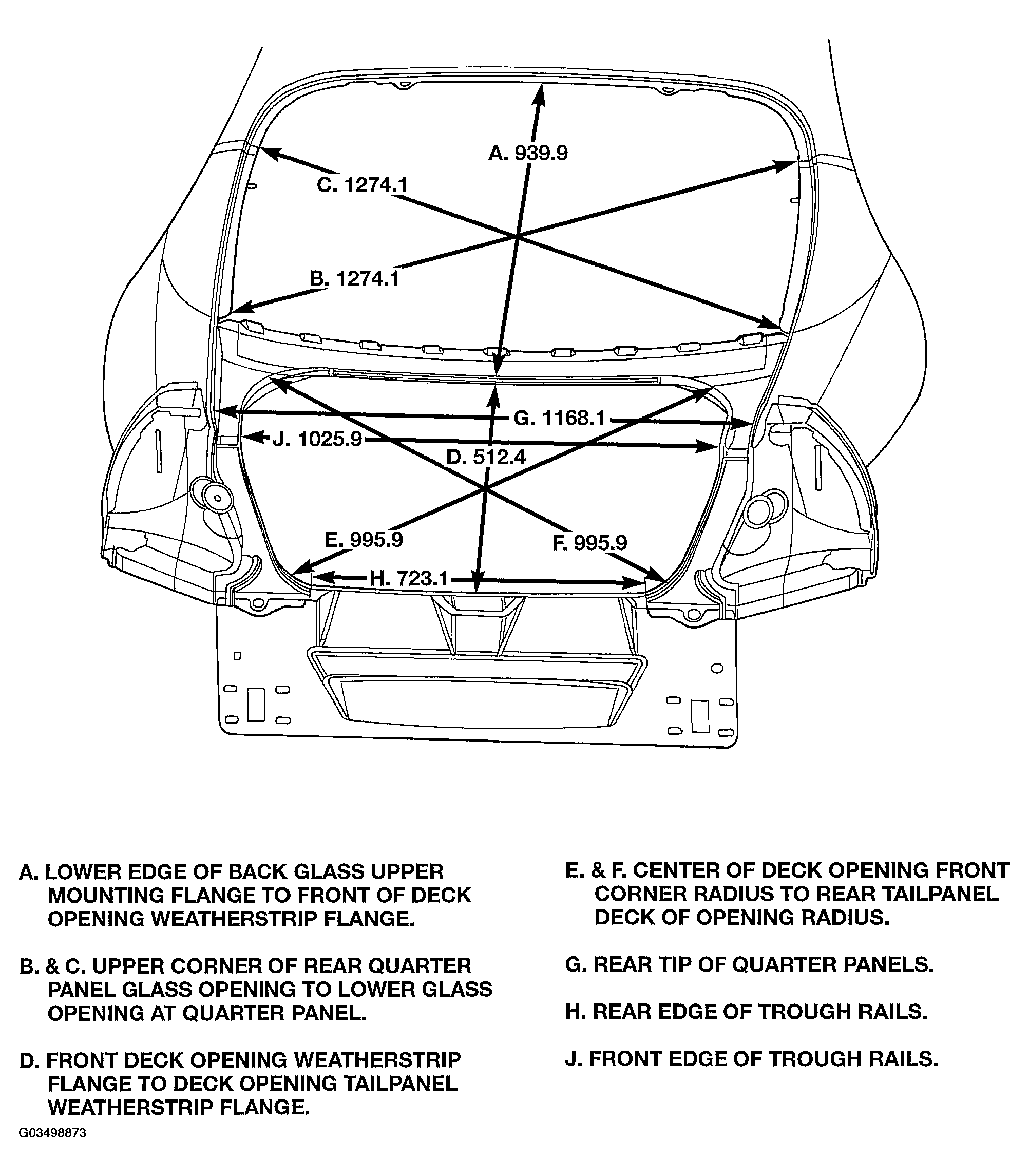

Fig 6: Rear Window And Trunk Openings - 300M

G03498873

Courtesy of DAIMLERCHRYSLER CORP.
