Specifications - Structural Adhesive Locations

INDEX

DESCRIPTION	FIGURE
HOOD - CONCORDE AND 300M	Fig 1
HOOD - INTREPID	Fig 2
FRONT FENDER	Fig 3
ROOF	Fig 4
SUNROOF	Fig 5
DOORS	Fig 6
DECKLID	Fig 7

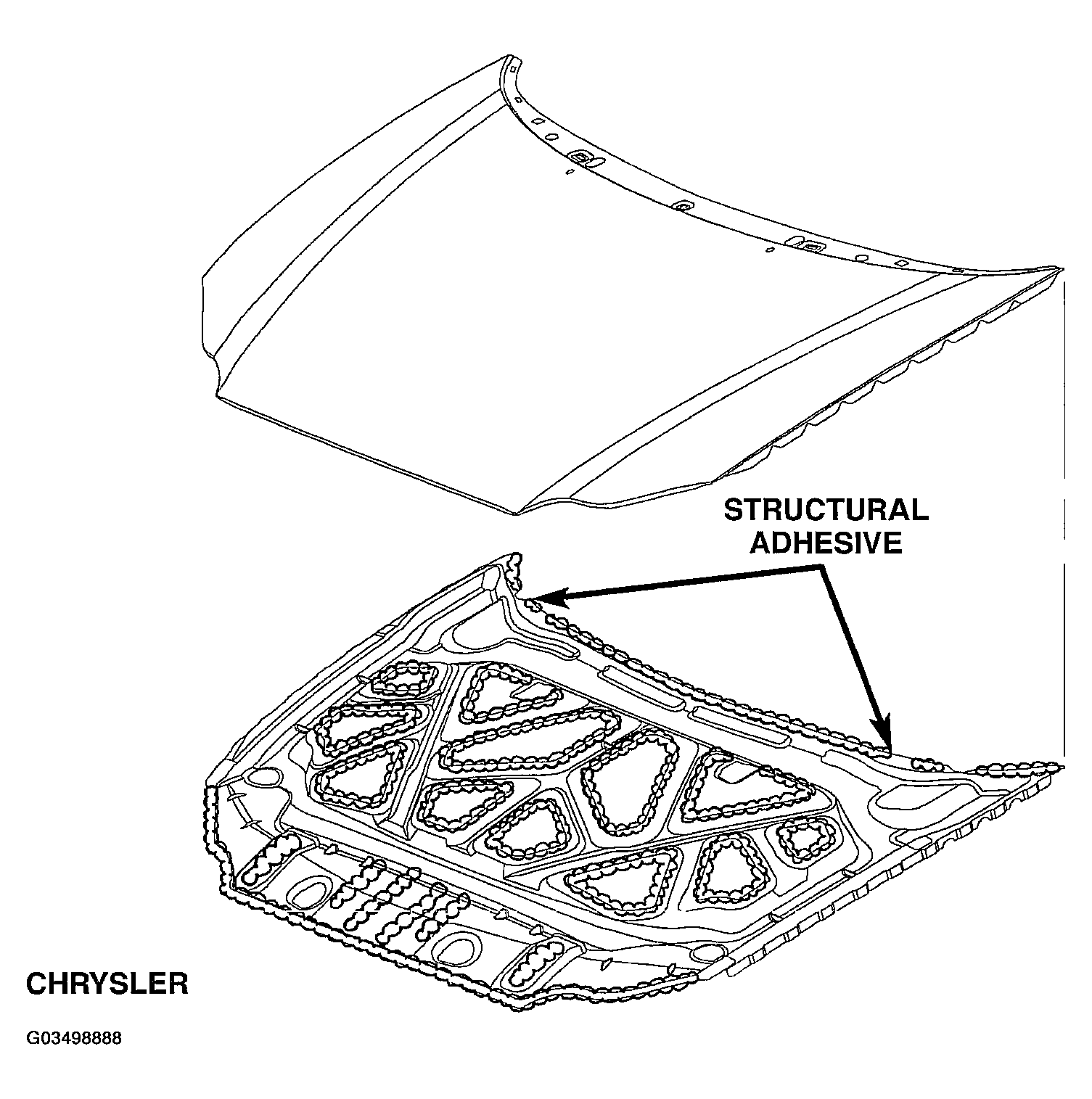

Fig 1: Hood - Concorde And 300M

G03498888

Courtesy of DAIMLERCHRYSLER CORP.

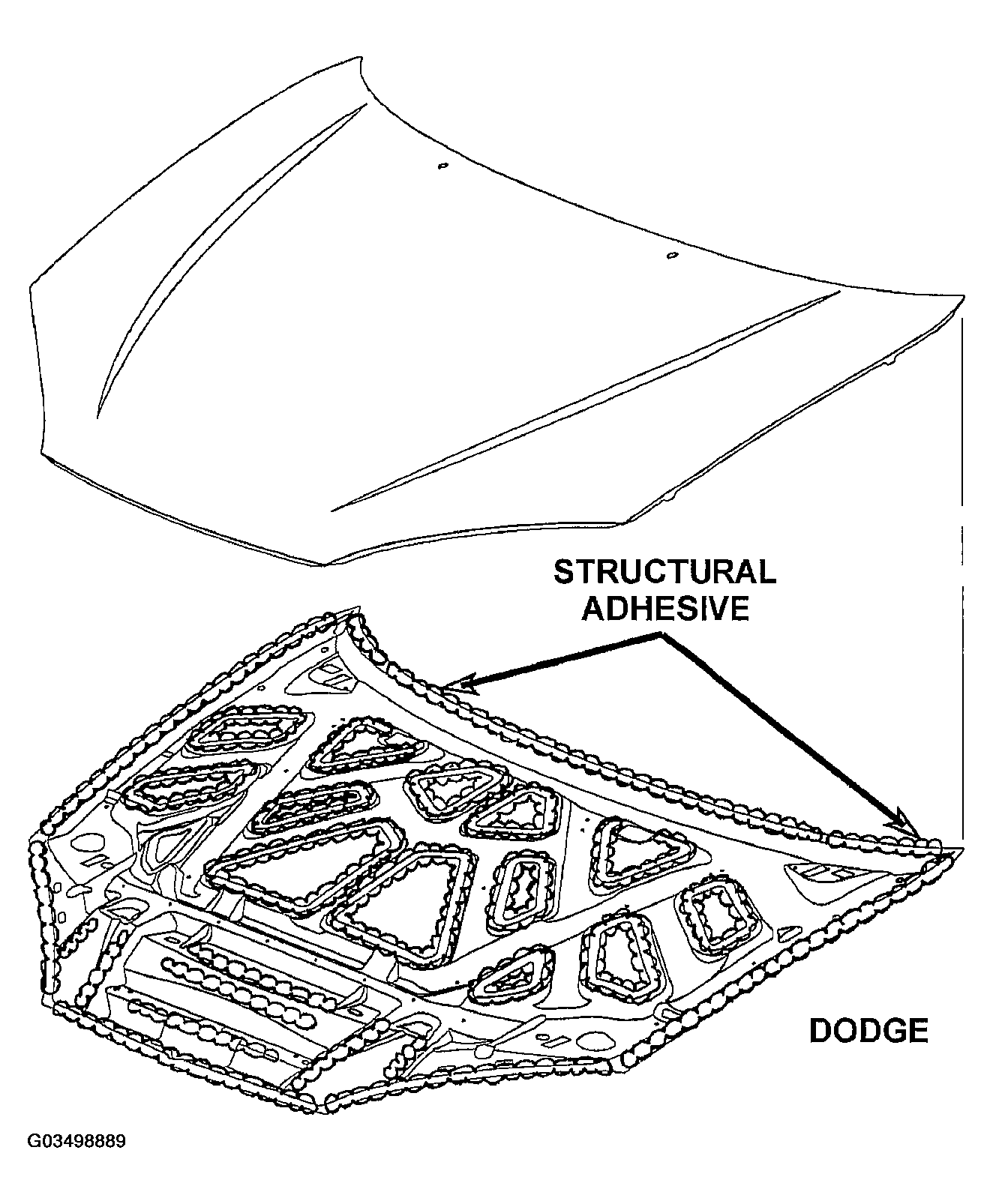

Fig 2: Hood - Intrepid

G03498889

Courtesy of DAIMLERCHRYSLER CORP.

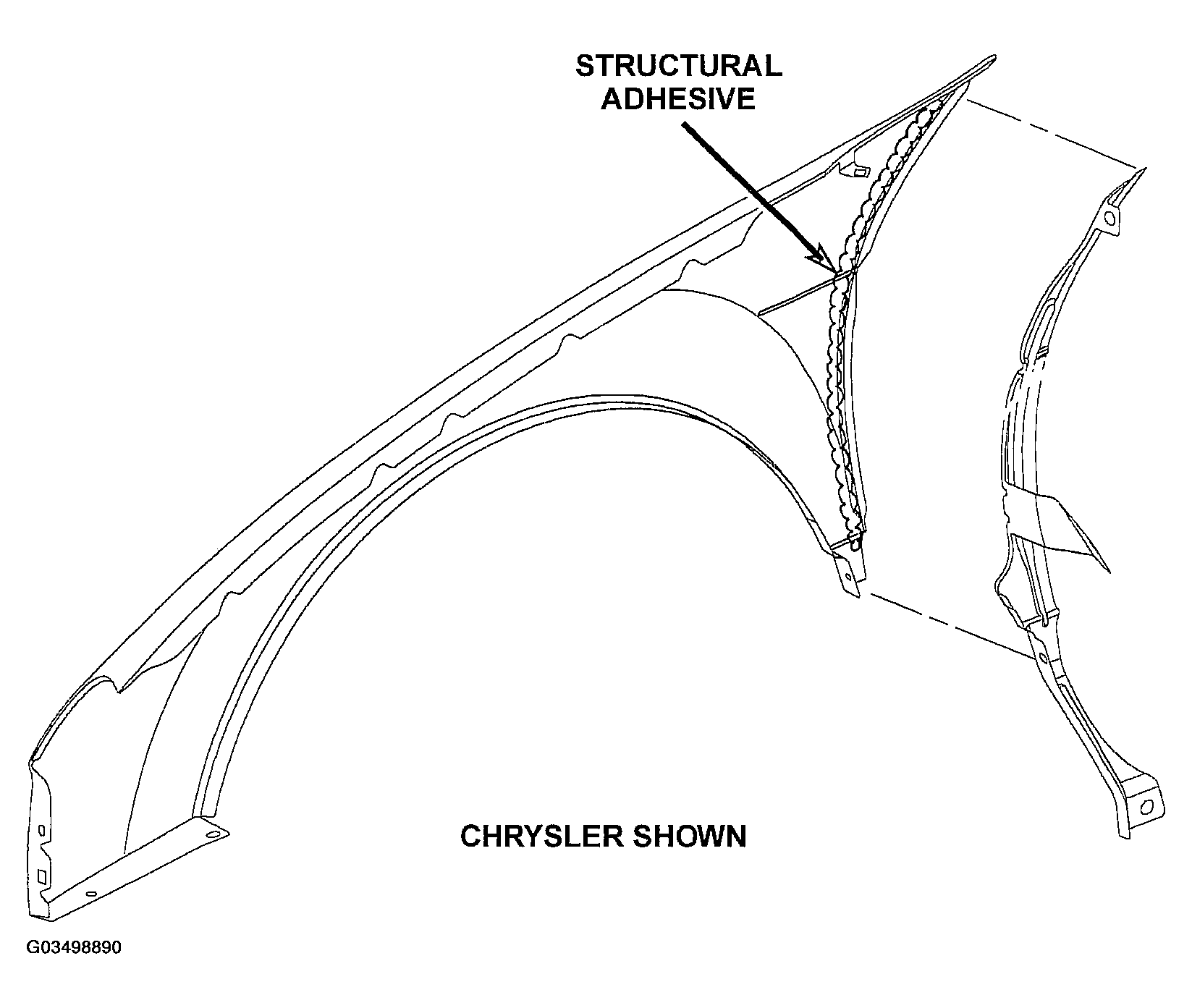

Fig 3: Front Fender

G03498890

Courtesy of DAIMLERCHRYSLER CORP.

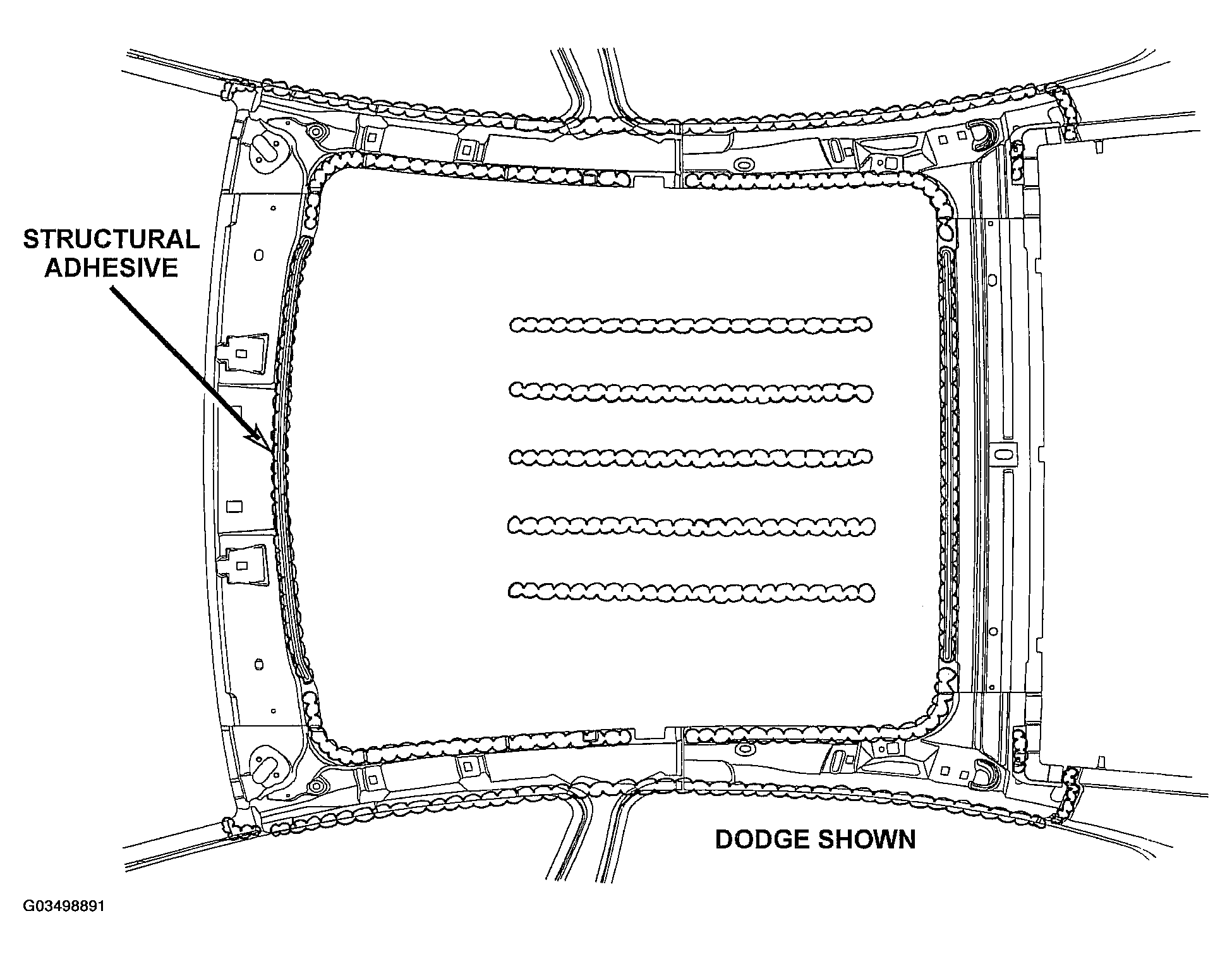

Fig 4: Roof

G03498891

Courtesy of DAIMLERCHRYSLER CORP.

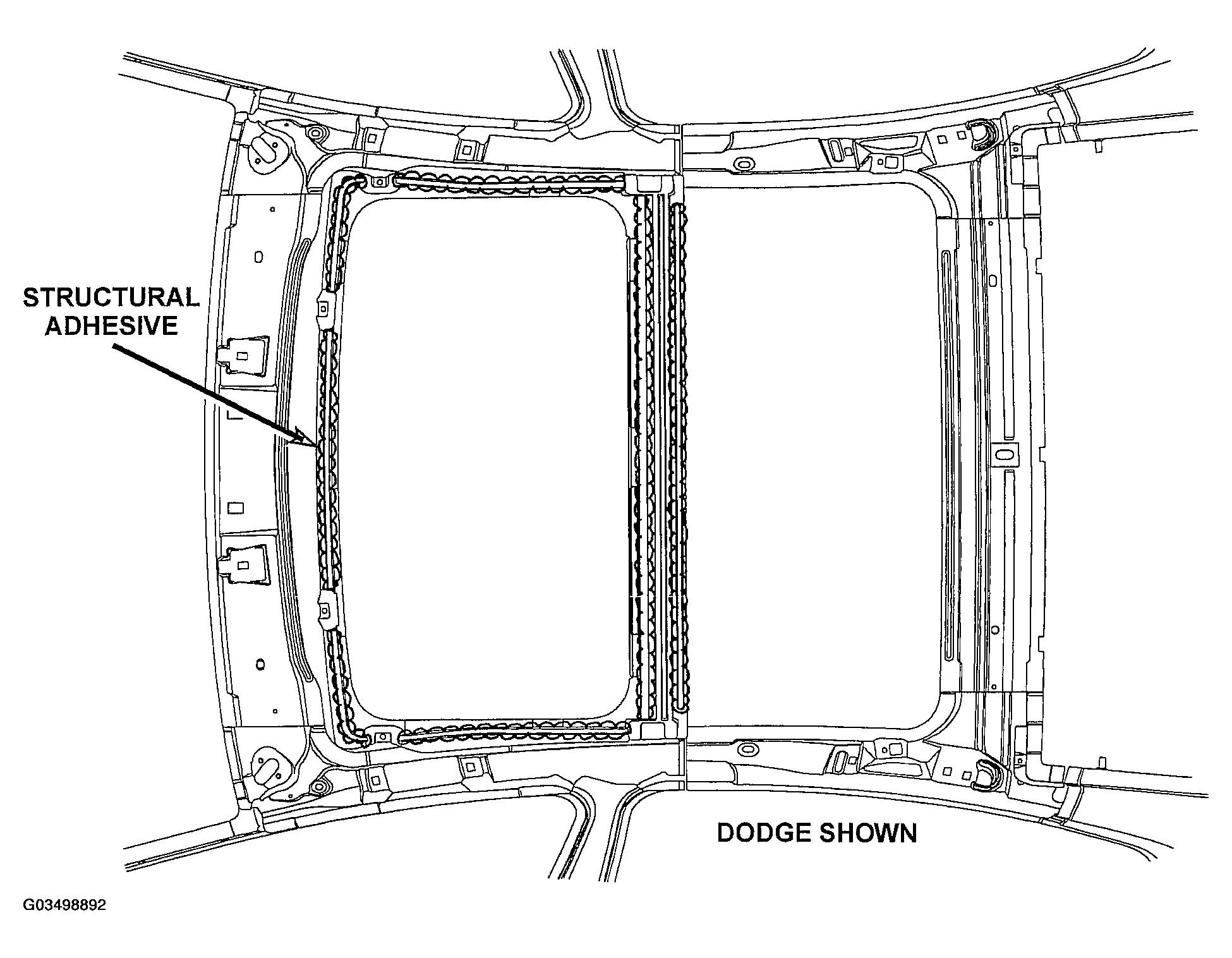

Fig 5: Sunroof

G03498892

Courtesy of DAIMLERCHRYSLER CORP.

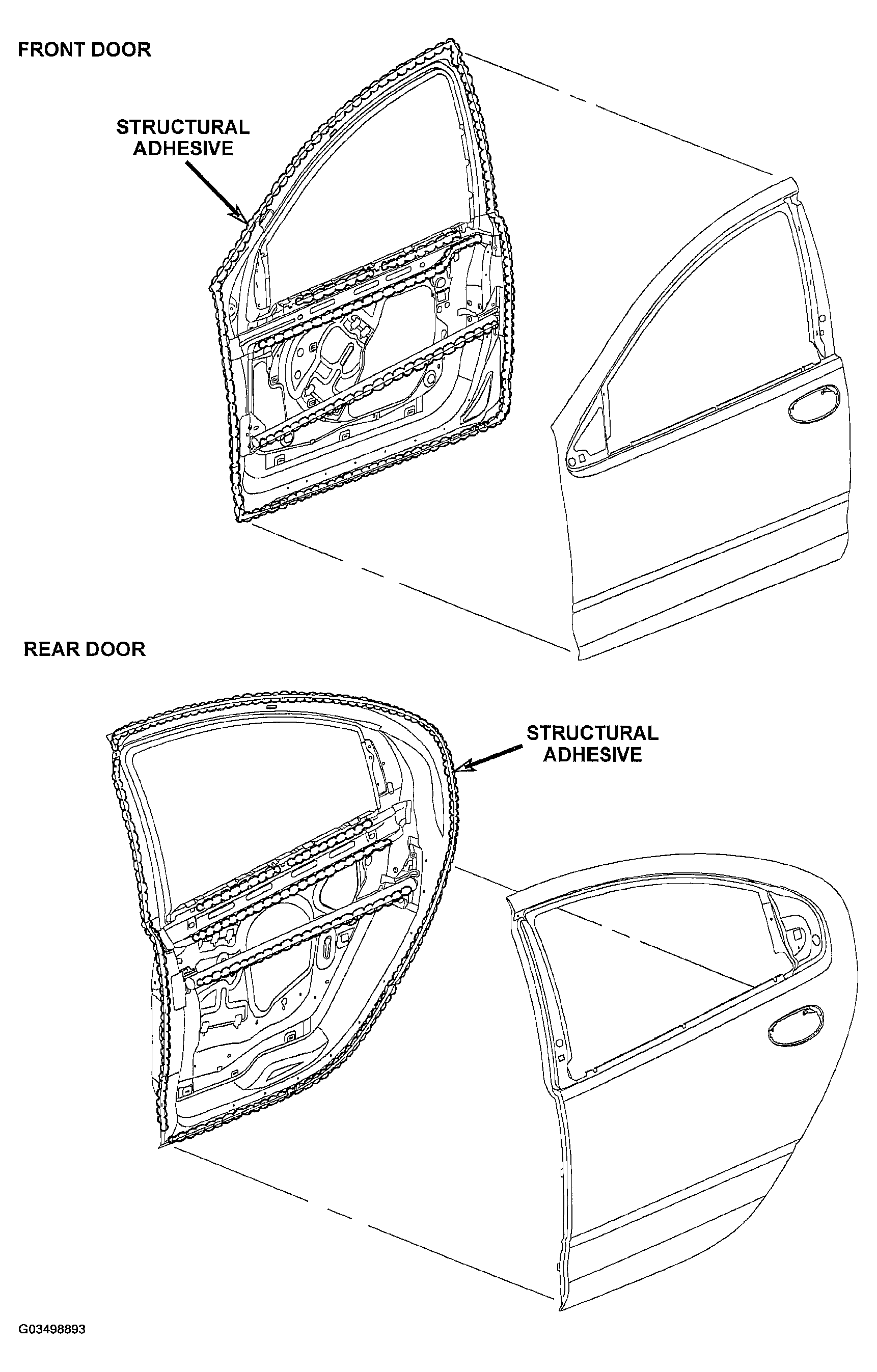

Fig 6: Doors

G03498893

Courtesy of DAIMLERCHRYSLER CORP.

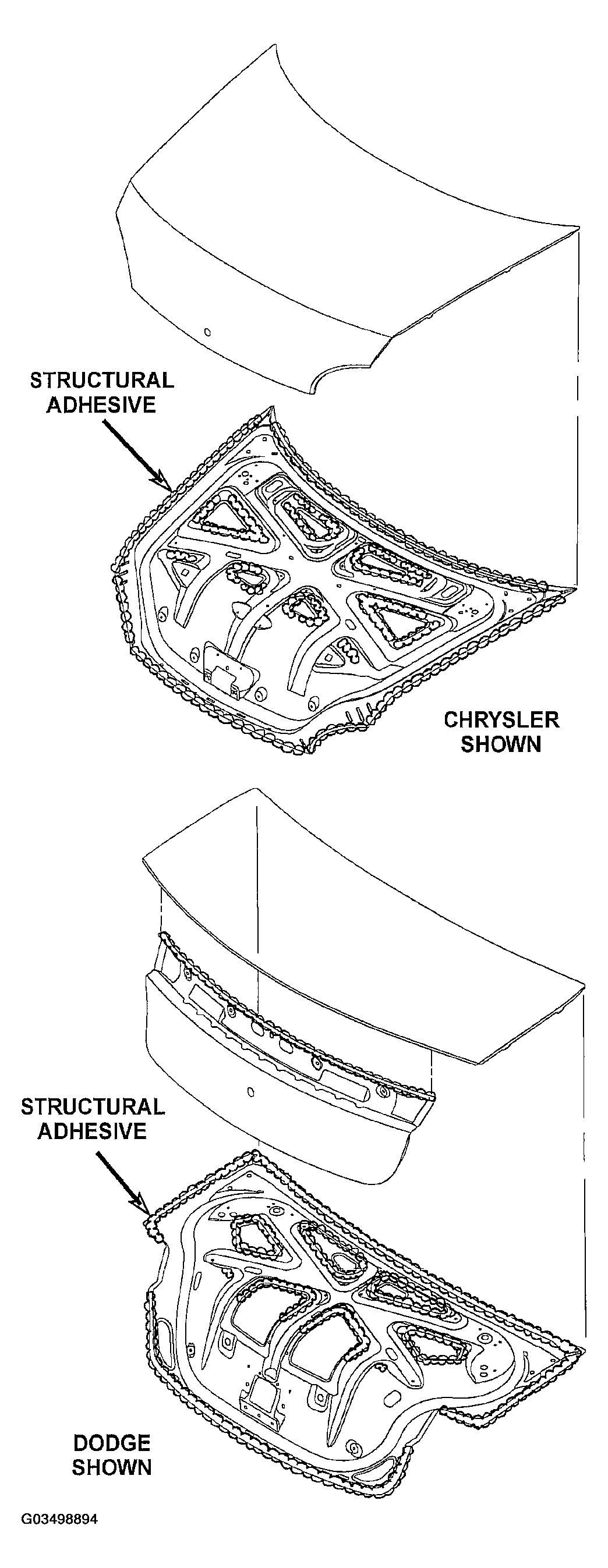

Fig 7: Decklid

G03498894

Courtesy of DAIMLERCHRYSLER CORP.
