Left Headlamp Leveling Module (Export) Connector End View

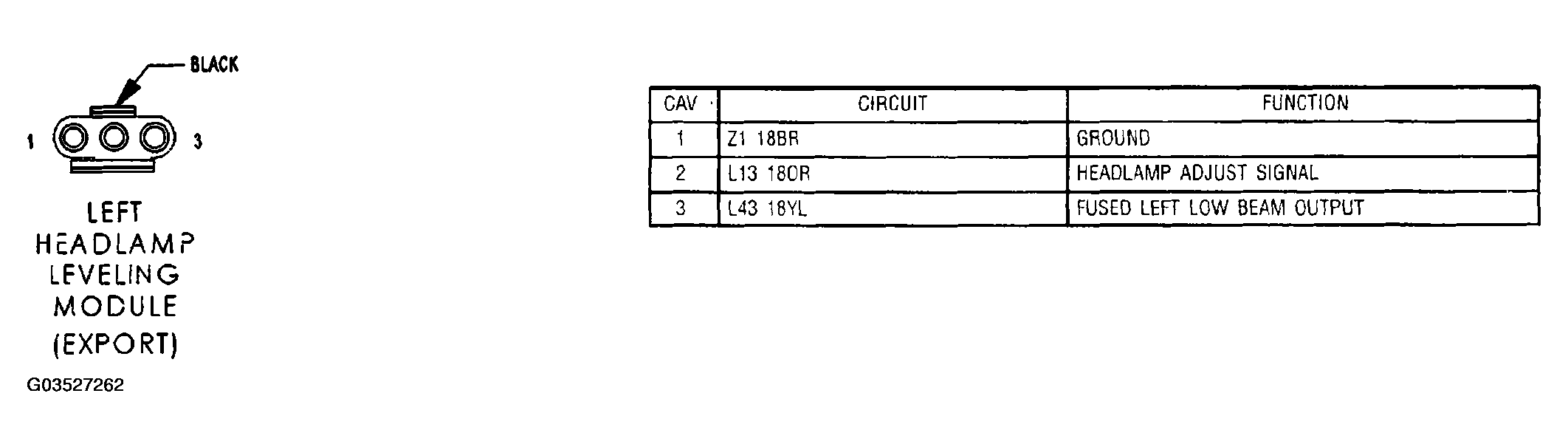

Fig 1: Left Headlamp Leveling Module (Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
