EVAP/Purge Solenoid: Installation: Turbo

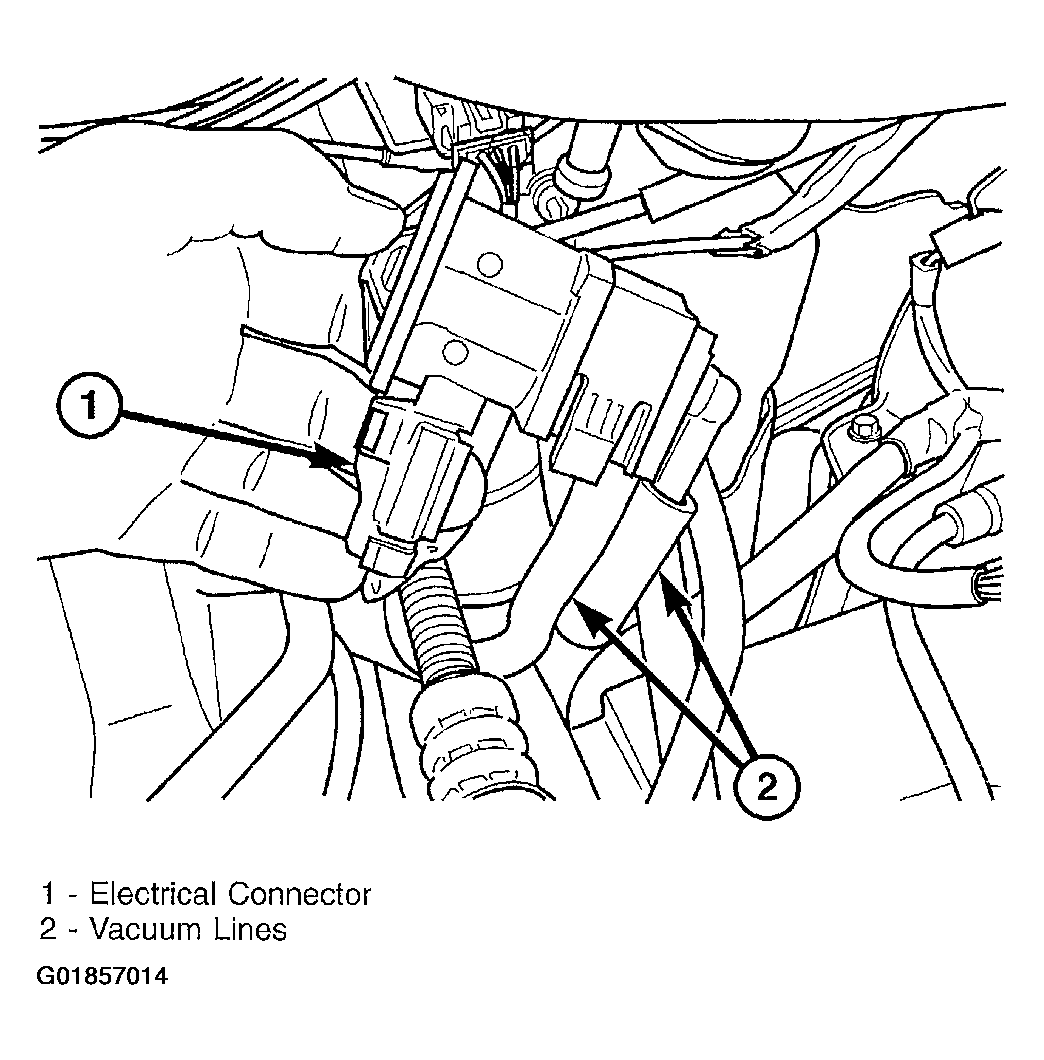

  1. Install the 2 vacuum lines. See Figure.
  2. Connect and lock the electrical connector to the purge solenoid. See Figure.
  3. Install solenoid to the mounting bracket. See Figure.
  4. Connect the negative battery cable.
