*Start And Stall Condition: Testing

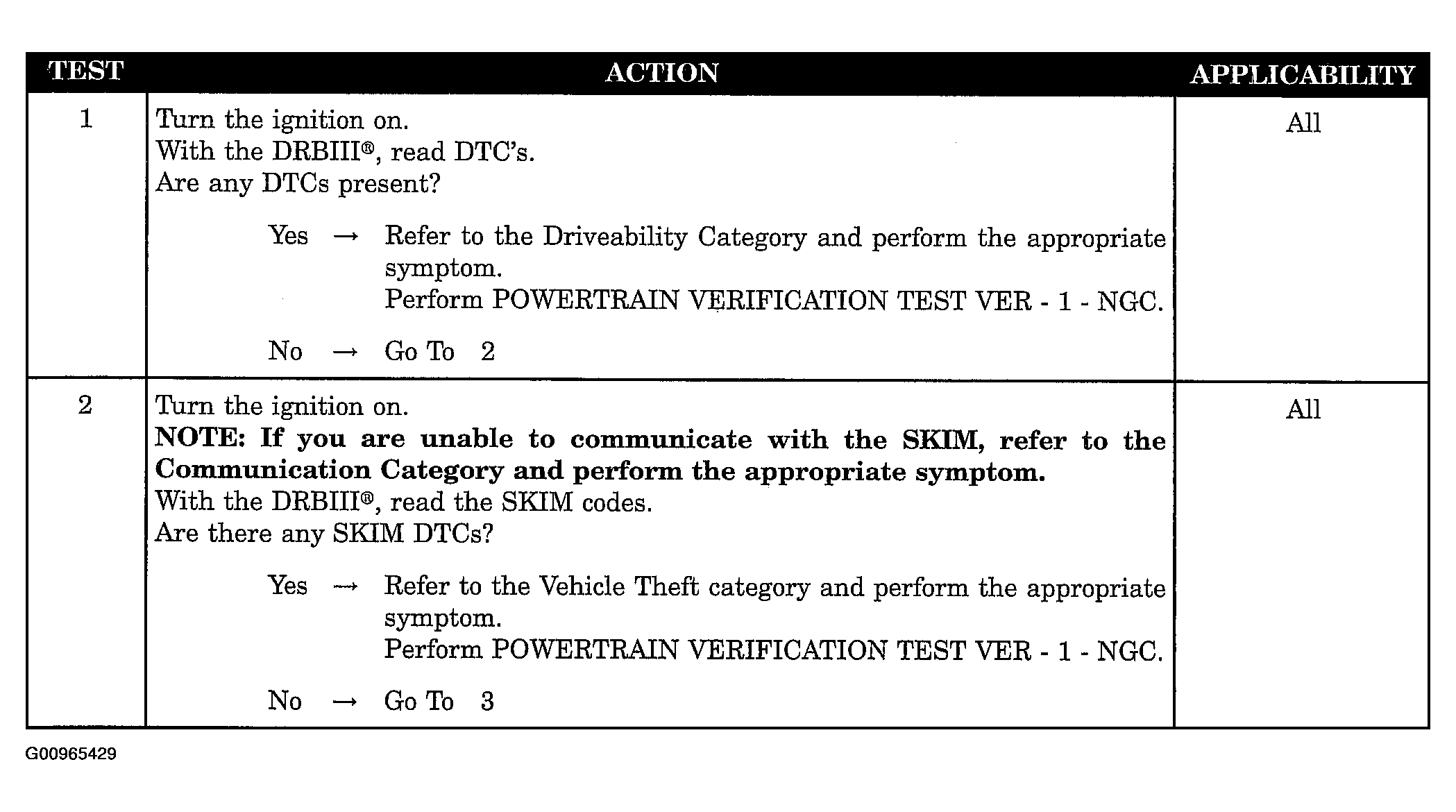

Fig 1: Testing: Start And Stall Condition (1 Of 3)
G00965429Courtesy of DAIMLERCHRYSLER CORP.

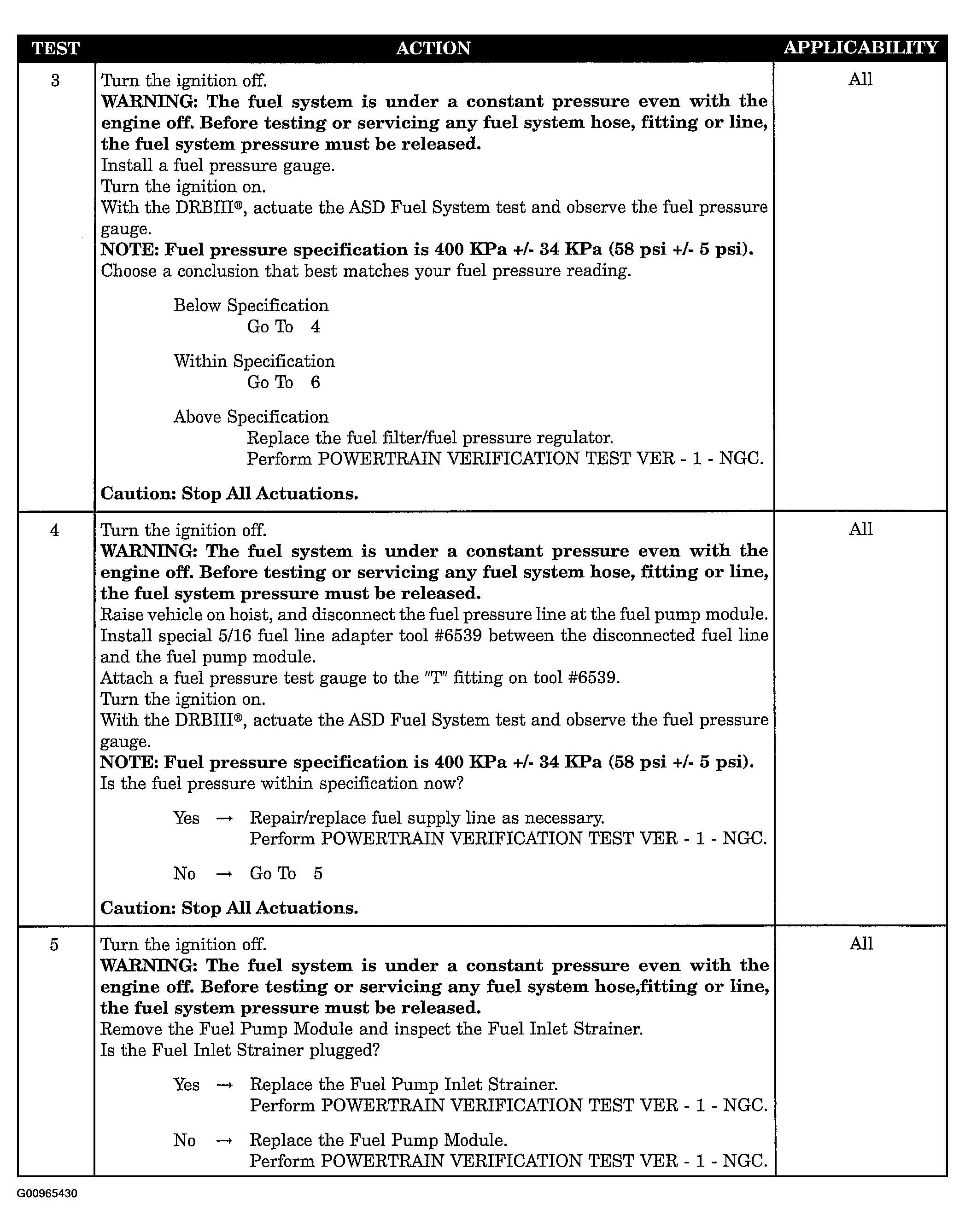

Fig 2: Testing: Start And Stall Condition (2 Of 3)
G00965430Courtesy of DAIMLERCHRYSLER CORP.

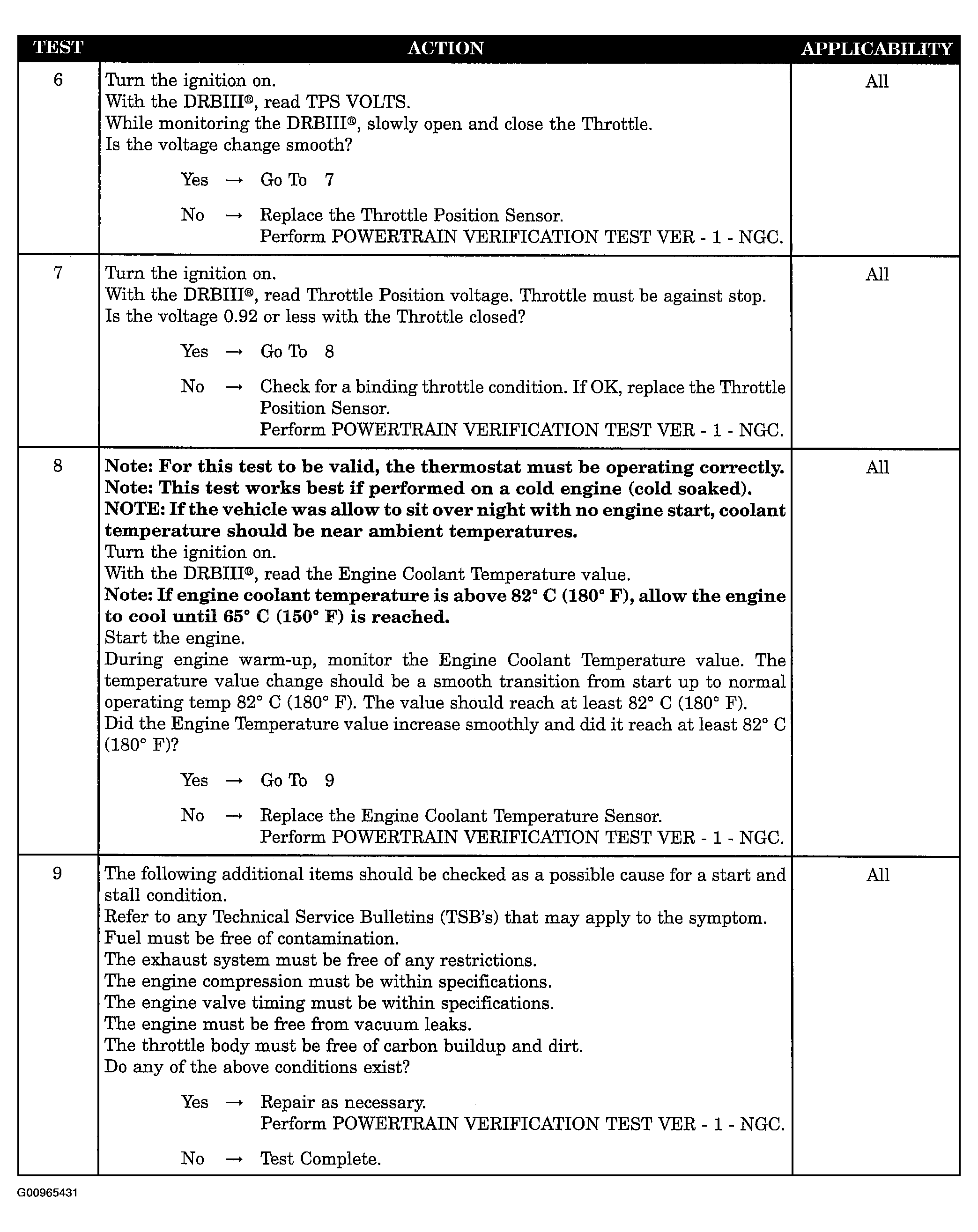

Fig 3: Testing: Start And Stall Condition (3 Of 3)
G00965431Courtesy of DAIMLERCHRYSLER CORP.
