Base System

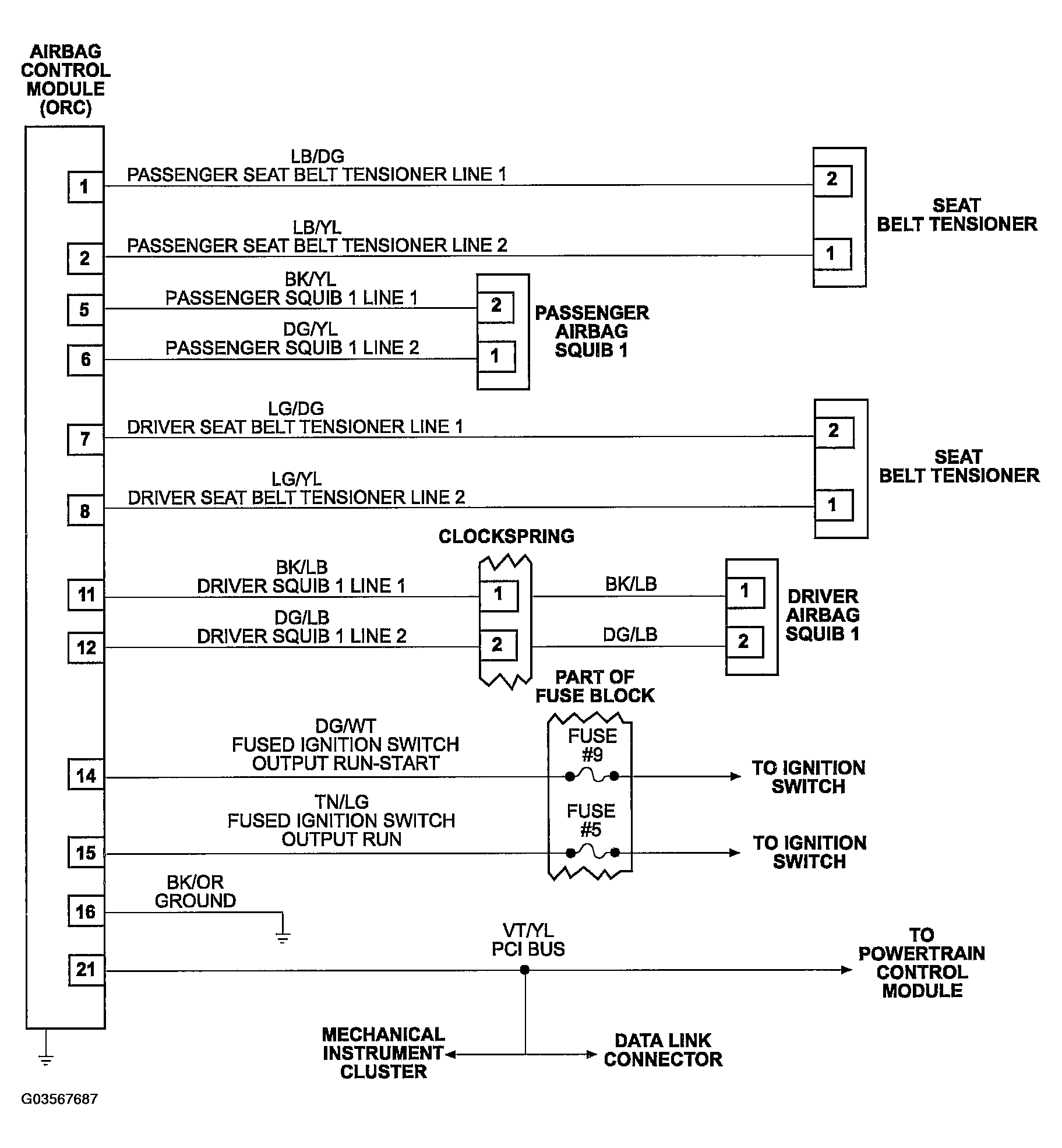

Fig 1: View Of Airbag Schematic Diagram (Base System)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
