Audio System: Notes

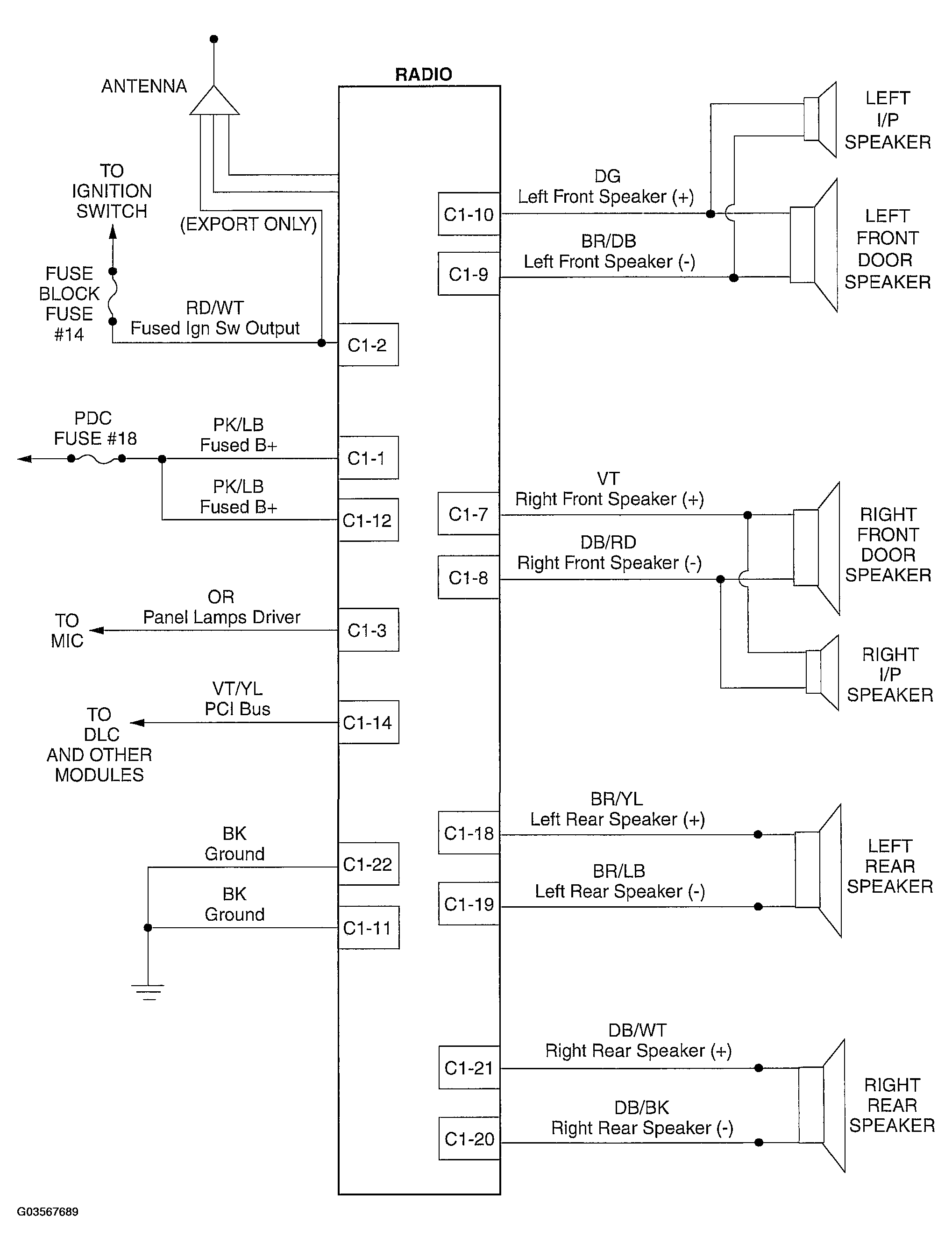

Fig 1: View Of Audio System Schematic Diagram

G03567689

Courtesy of DAIMLERCHRYSLER CORP.
