Liftgate CHMSL Access Panel: Installation

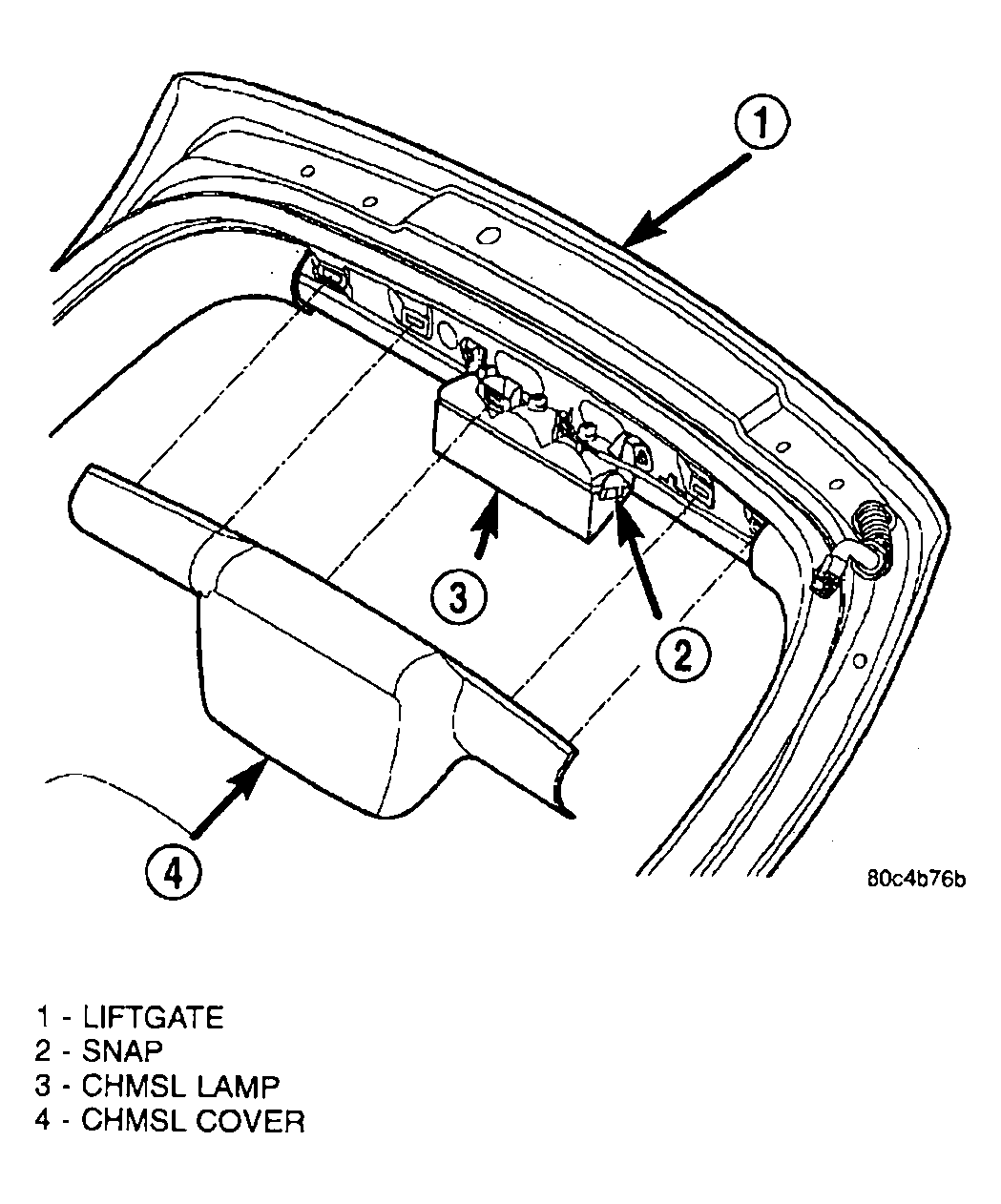

  1. Place CHMSL cover trim in position on vehicle Figure).
  2. Press tabs into position to hold CHMSL cover trim to liftgate.
