C301 Connector End View

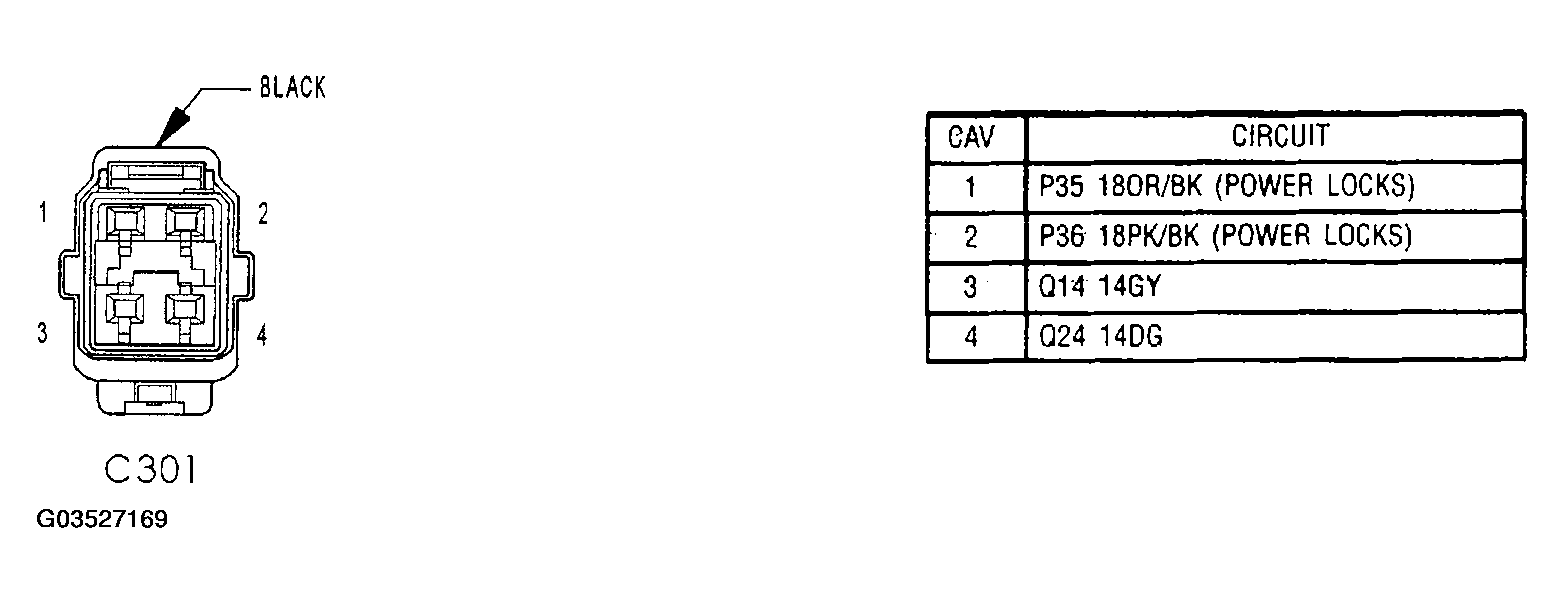

Fig 1: Right Body Side Inline Connector End View (C301)
G03527169Courtesy of DAIMLERCHRYSLER CORP.


Fig 1: Right Rear Door Side Inline Connector End View (C301)
G03527170Courtesy of DAIMLERCHRYSLER CORP.
