Ignition Switch C1 Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition Switch C1 Connector End View

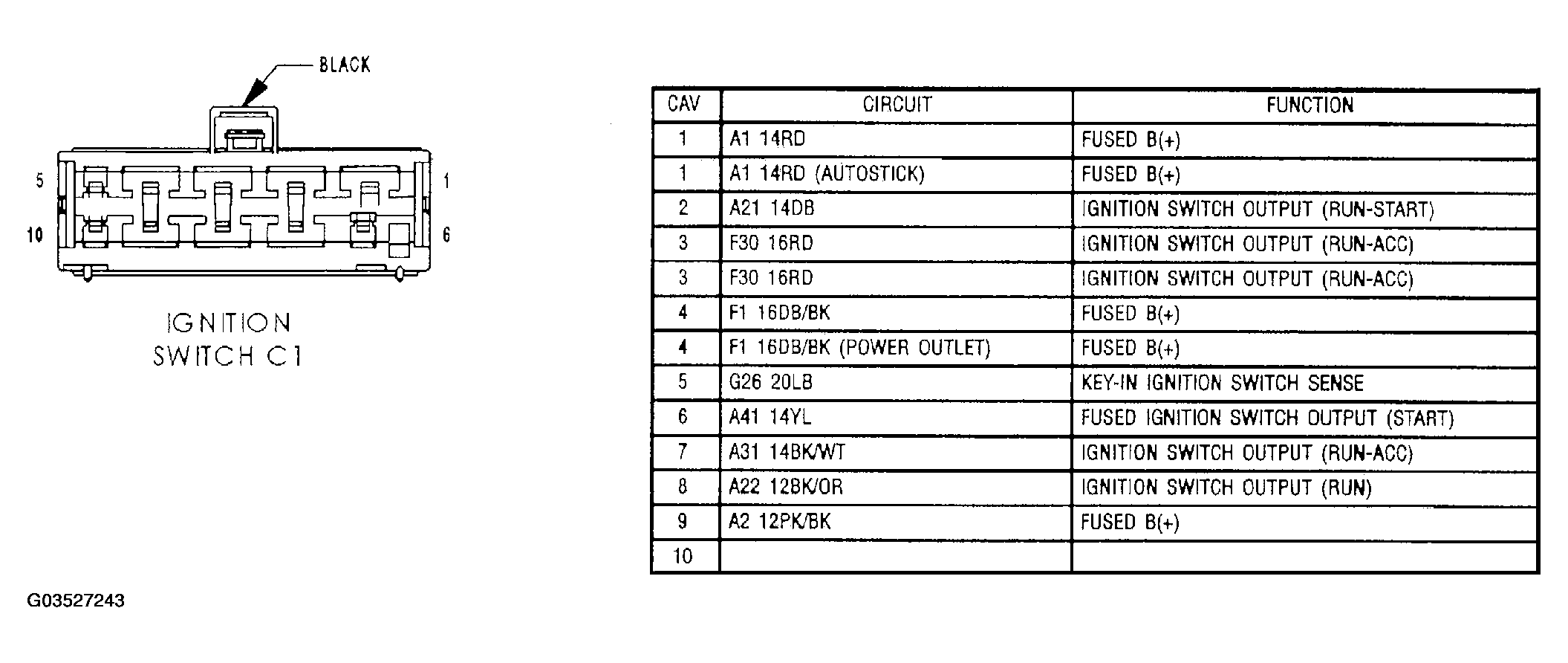

Fig 1: Ignition Switch Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
