Rear View Mirror C2 Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rear View Mirror C2 Connector End View

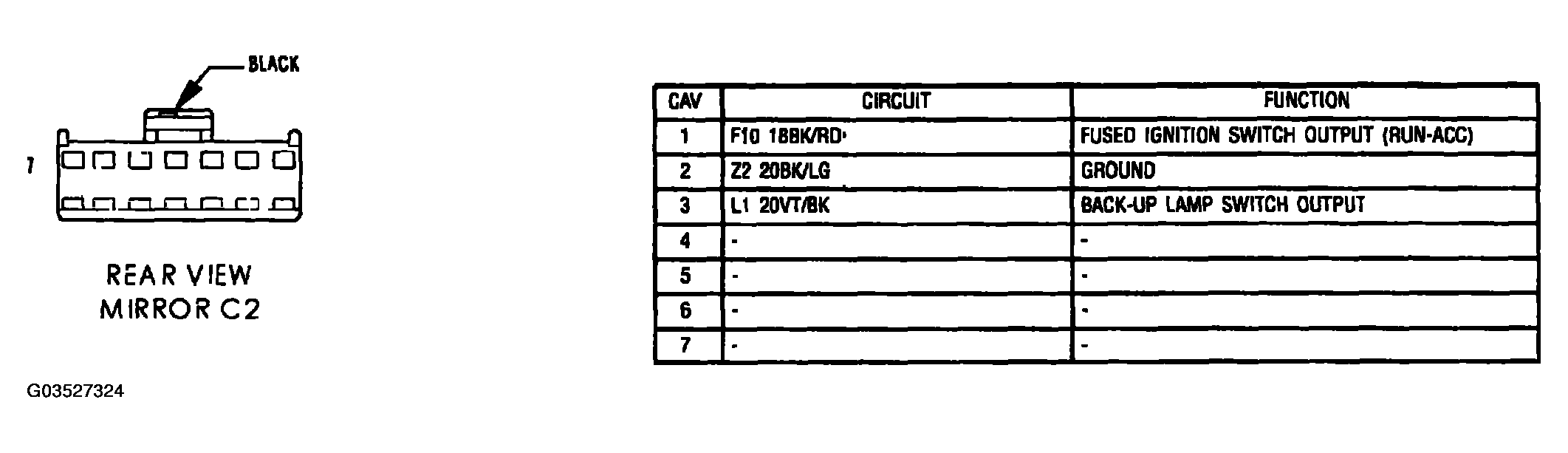

Fig 1: Rearview Mirror Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
