Clutch System - Overhaul: Clutch: Description: Notes

The typical clutch hydraulic system consists of a clutch master cylinder and integral reservoir, a clutch slave cylinder, and an interconnecting fluid line. LHD models have an adjustable pedal pushrod.

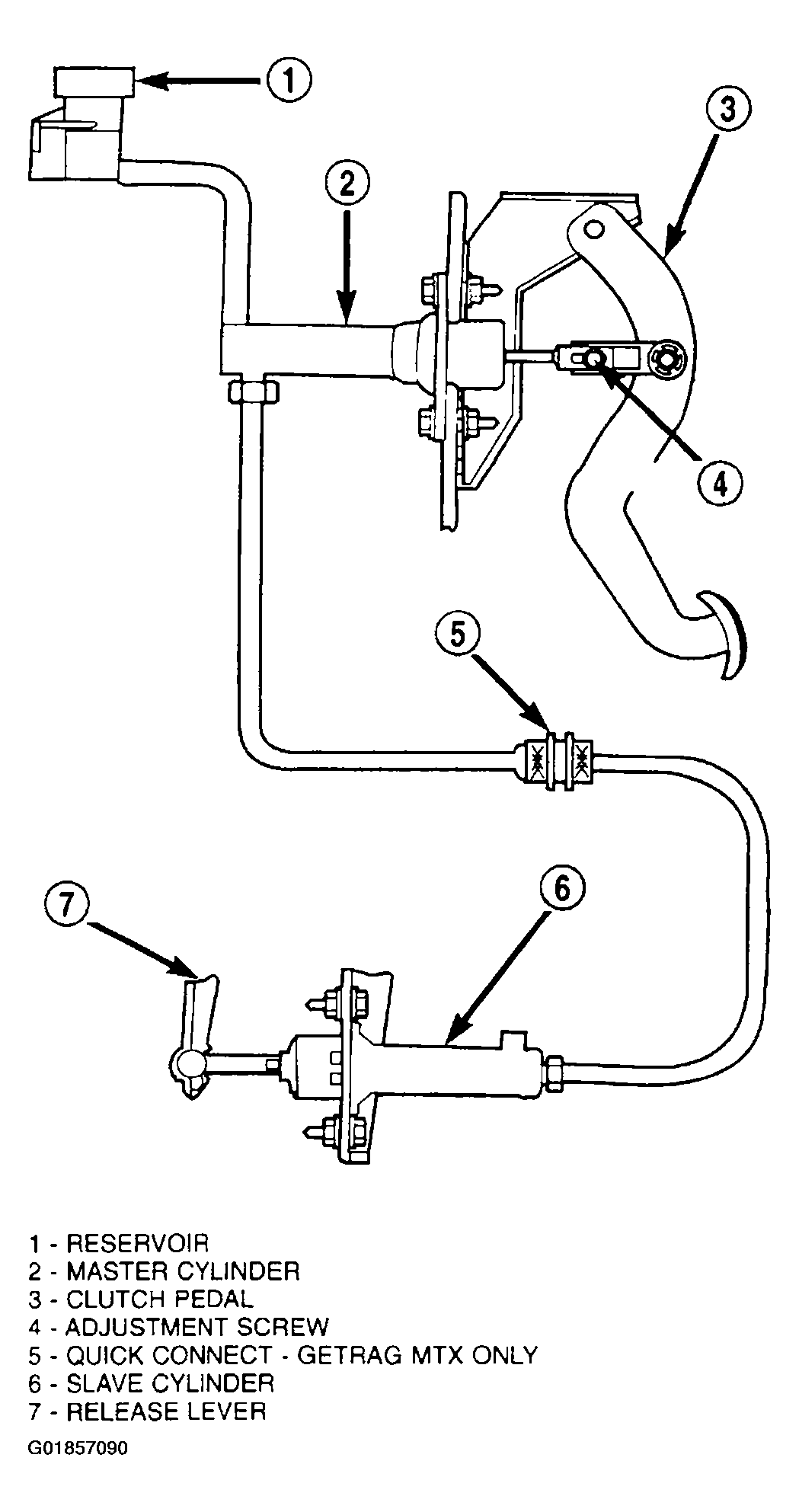

Fig 1: Identifying LHD Clutch Hydraulic System - Typical

Courtesy of DAIMLERCHRYSLER CORP.
