Modular Clutch: Removal

Remove transaxle from vehicle. See appropriate TRANSMISSIONS article.
Remove modular clutch assembly from transaxle input shaft.

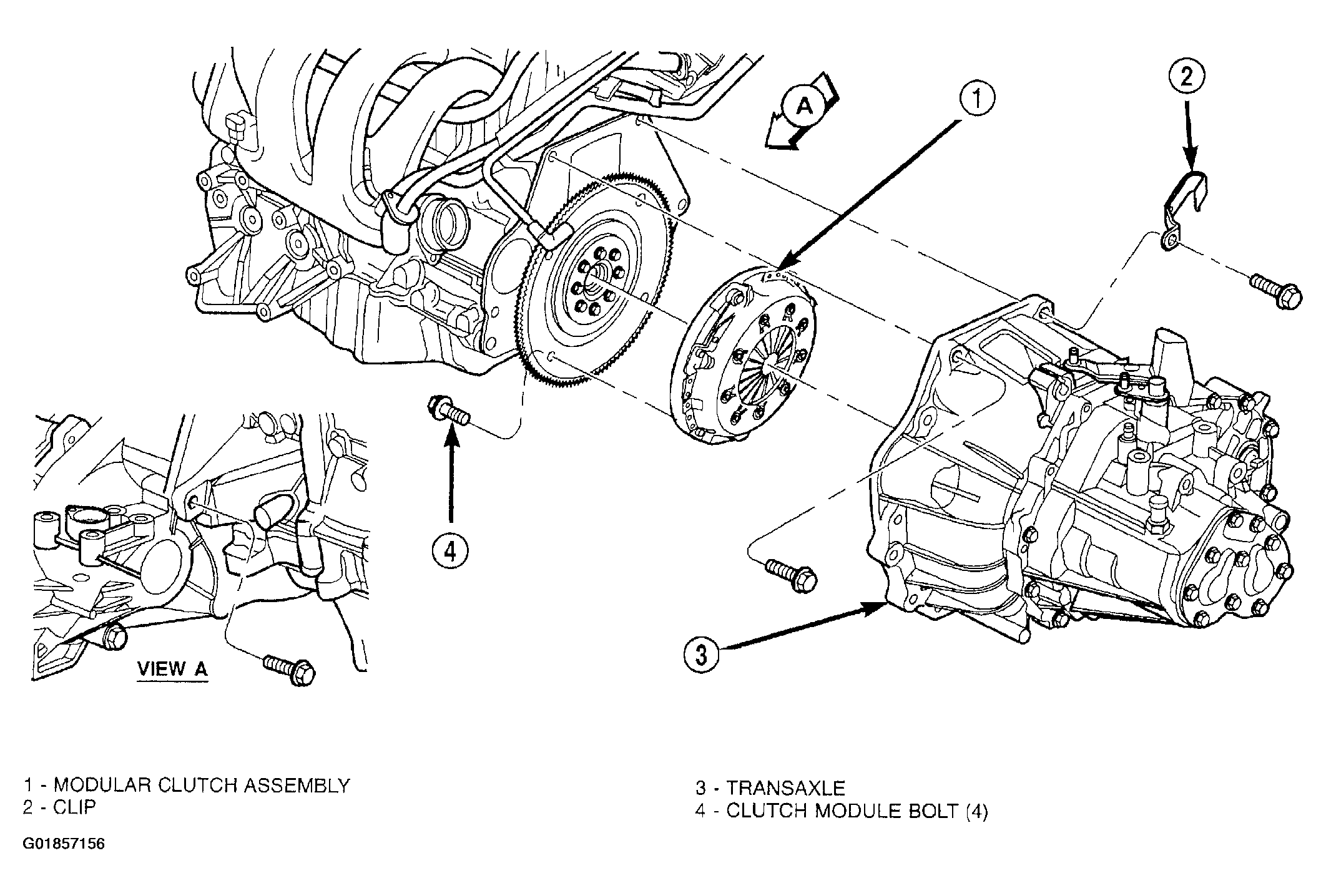

Fig 1: Removing Modular Clutch Assembly - Typical
Courtesy of DAIMLERCHRYSLER CORP.
2.4L Turbo models: Disassemble modular clutch assembly. Remove six (6) pressure plate-to-flywheel bolts. Remove pressure plate and disc from flywheel.

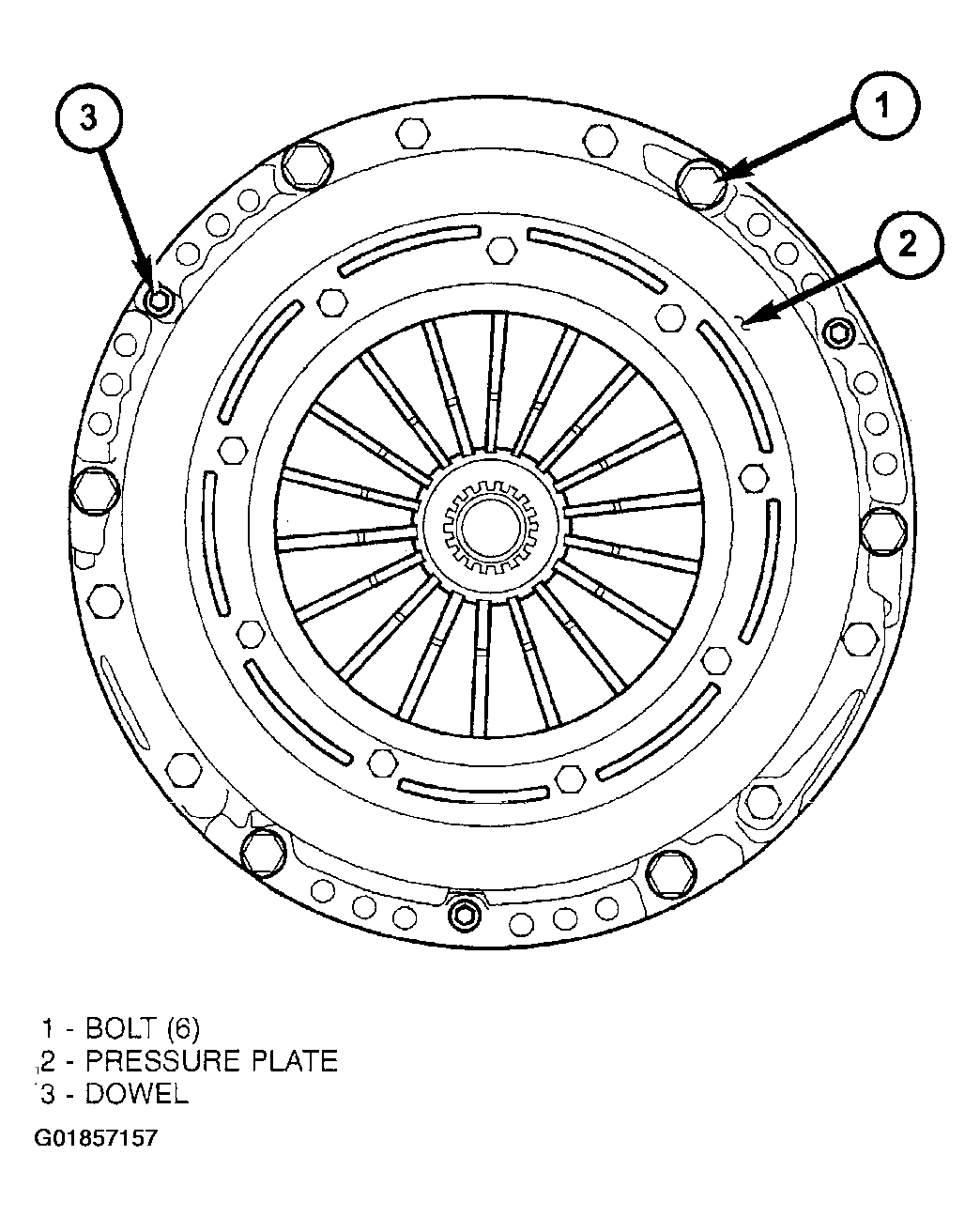

Fig 2: Removing Pressure Plate-To-Flywheel Bolts - Turbo
Courtesy of DAIMLERCHRYSLER CORP.
