Input Speed Sensor Connector End View

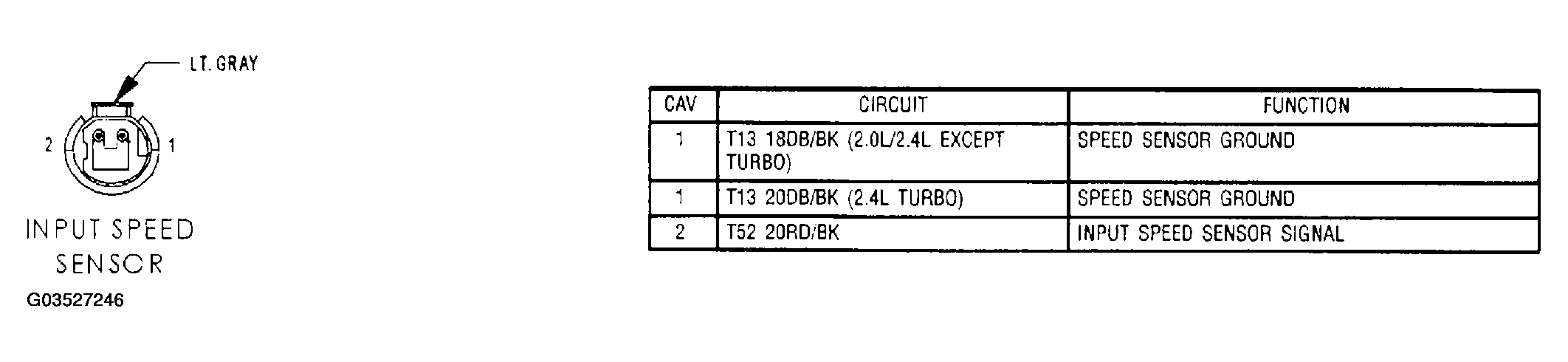

Fig 1: Input Speed Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
