Power Liftgate System: Liftgate

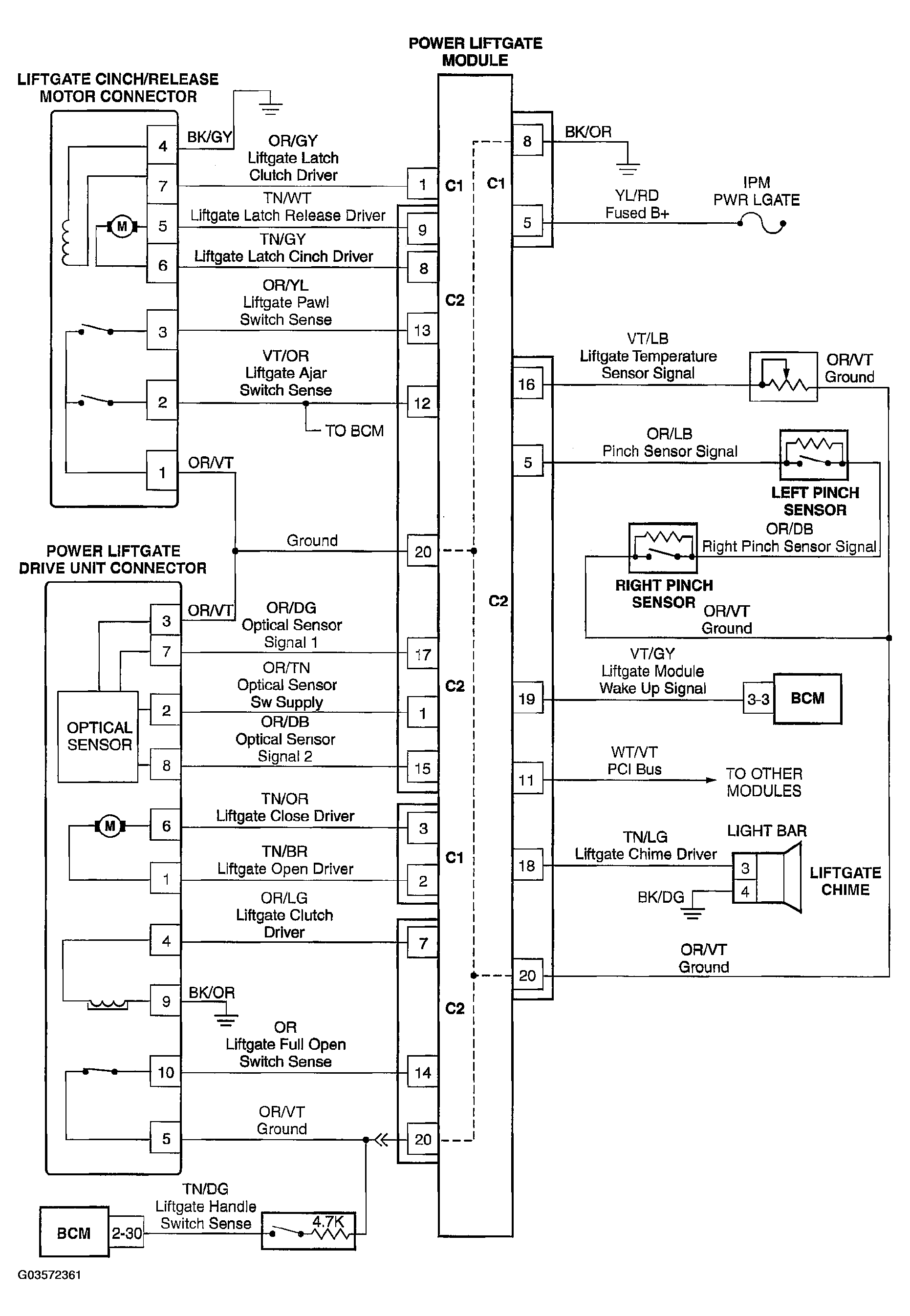

Fig 1: Liftgate - Schematic Diagram
G03572361Courtesy of DAIMLERCHRYSLER CORP.
