Power Window System

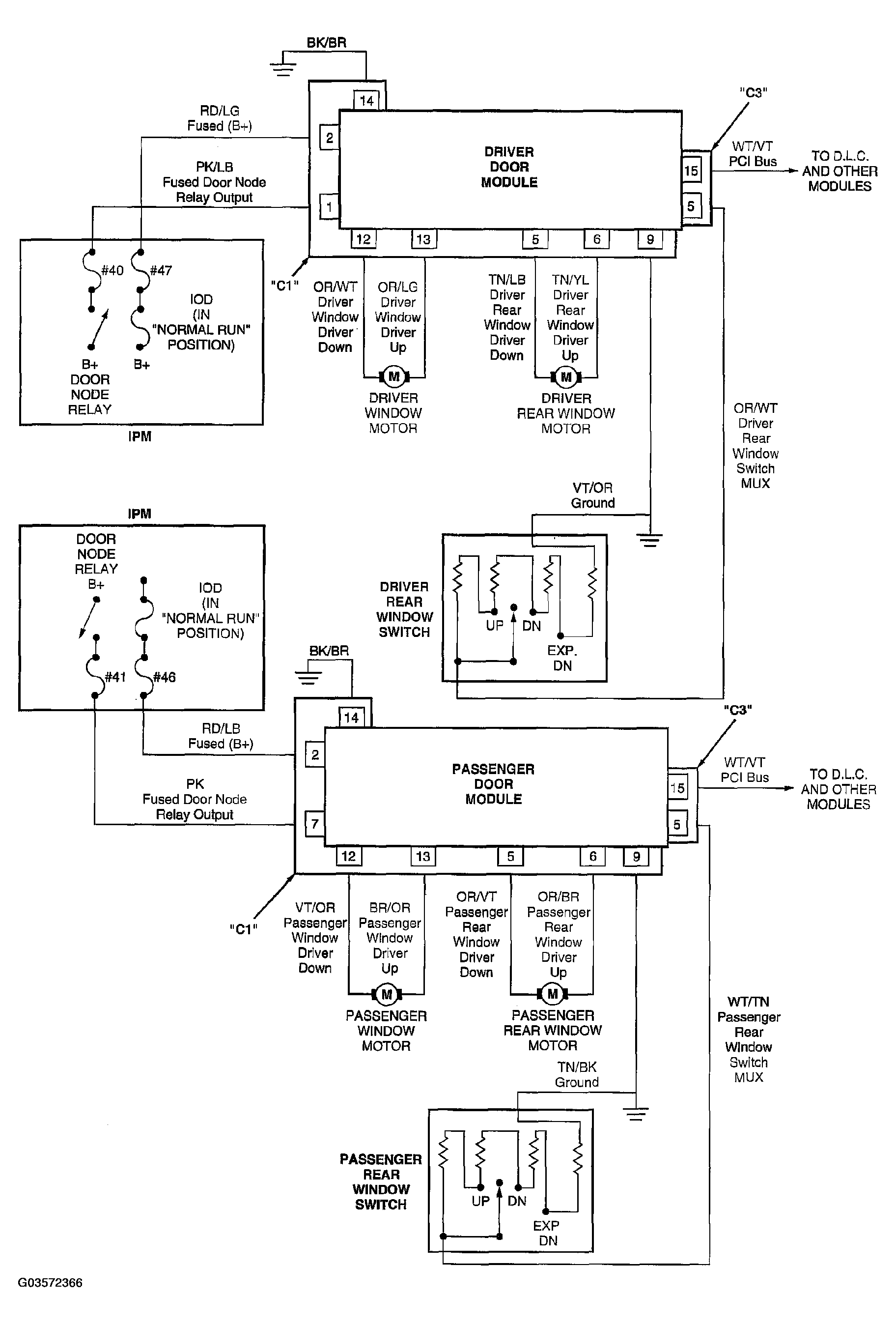

Fig 1: Power Window System - Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
