Installation - Upper

  1. Place upper trim panel into position.

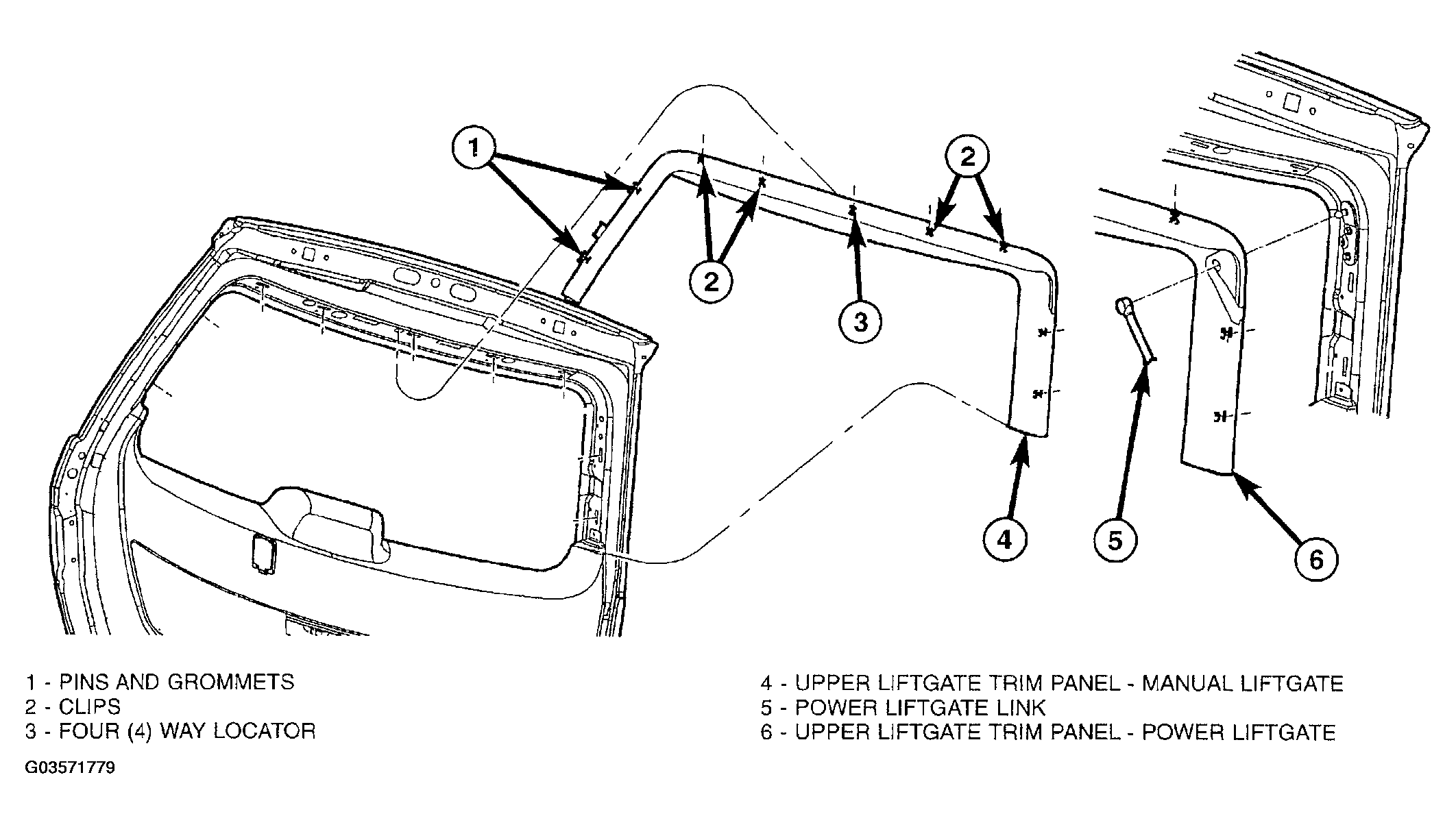

  2. Press the upper trim panel locking tabs into the locked position (Figure ).
  3. Connect power liftgate link onto ball head bracket, if equipped. (Refer to POWER LIFTGATE SYSTEM ).
  4. Close liftgate.
