Front Seat: Installation

  1. Place front seat into vehicle.
  2. Connect wire connectors under seat (Fig 1 ).

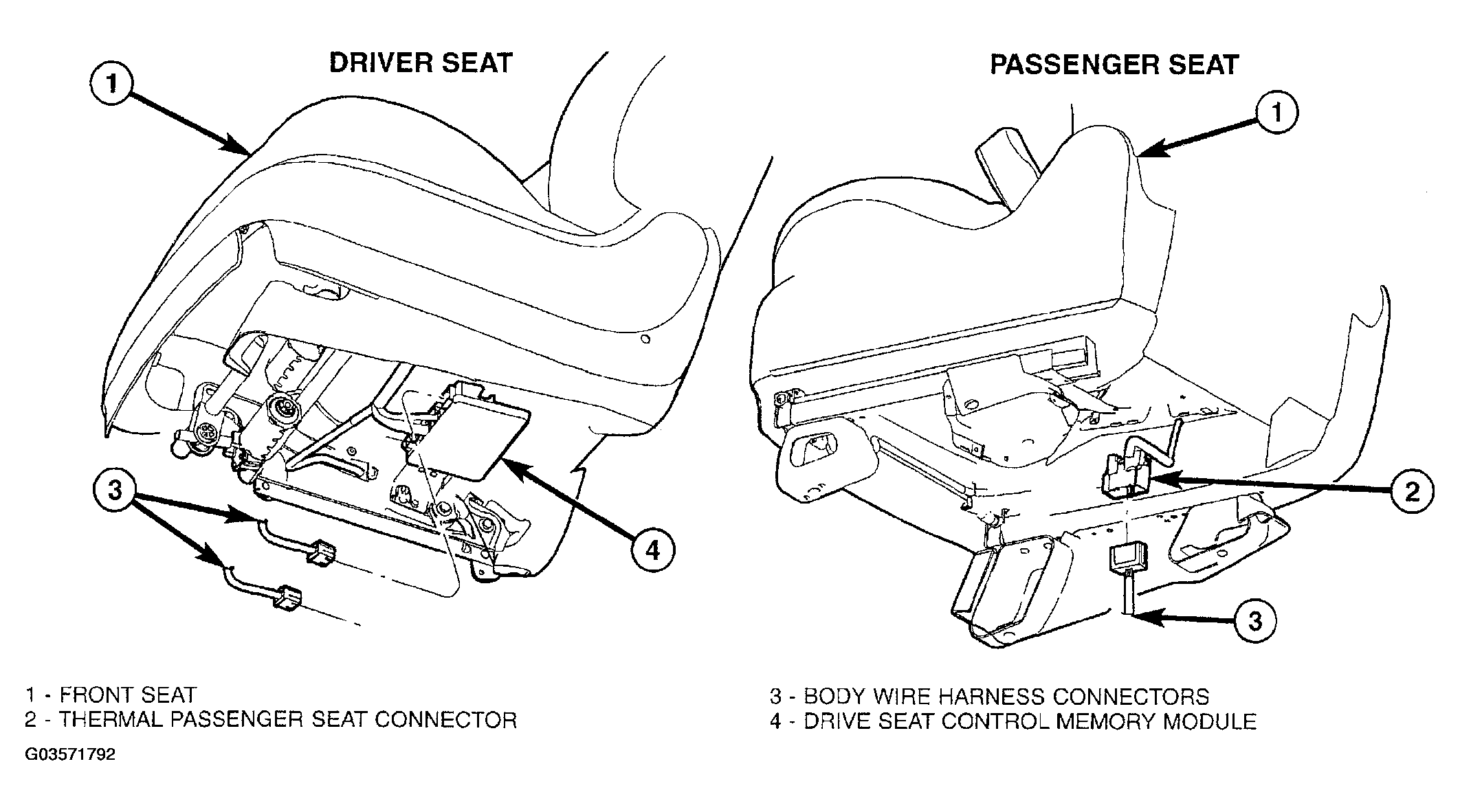

    3. Fig 1: Removing Seat Wire Connectors
    G03571792Courtesy of DAIMLERCHRYSLER CORP.
  3. Place front seat studs into mounting holes.
  4. Raise and support vehicle.

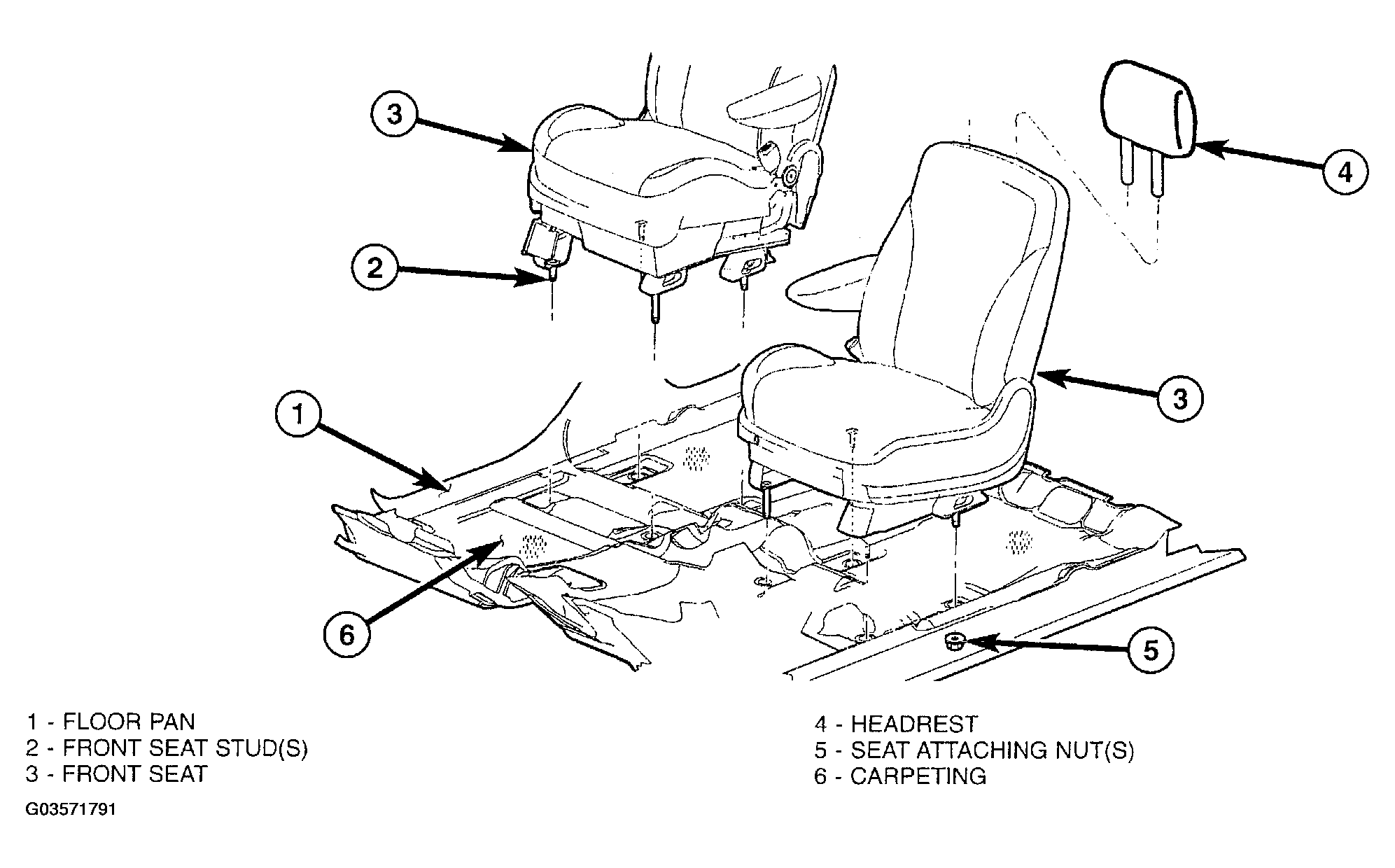

  5. Install four nuts attaching seat to floor pan (Figure ).
  6. Tighten nuts to 68 N.m (50 ft. lbs.) torque.
  7. For right side front seat, install muffler to body heat shield. (Refer to HEAT SHIELDS ).
  8. For left side front seat, install vapor canister. (Refer to VAPOR CANISTER ).
  9. Remove vehicle supports and lower vehicle.
  10. Install front seat headrest. (Refer to INSTALLATION  ).
  11. Connect battery negative cable.
