Recliner Handle: Installation

  1. Place recliner handle in position on spline shaft.

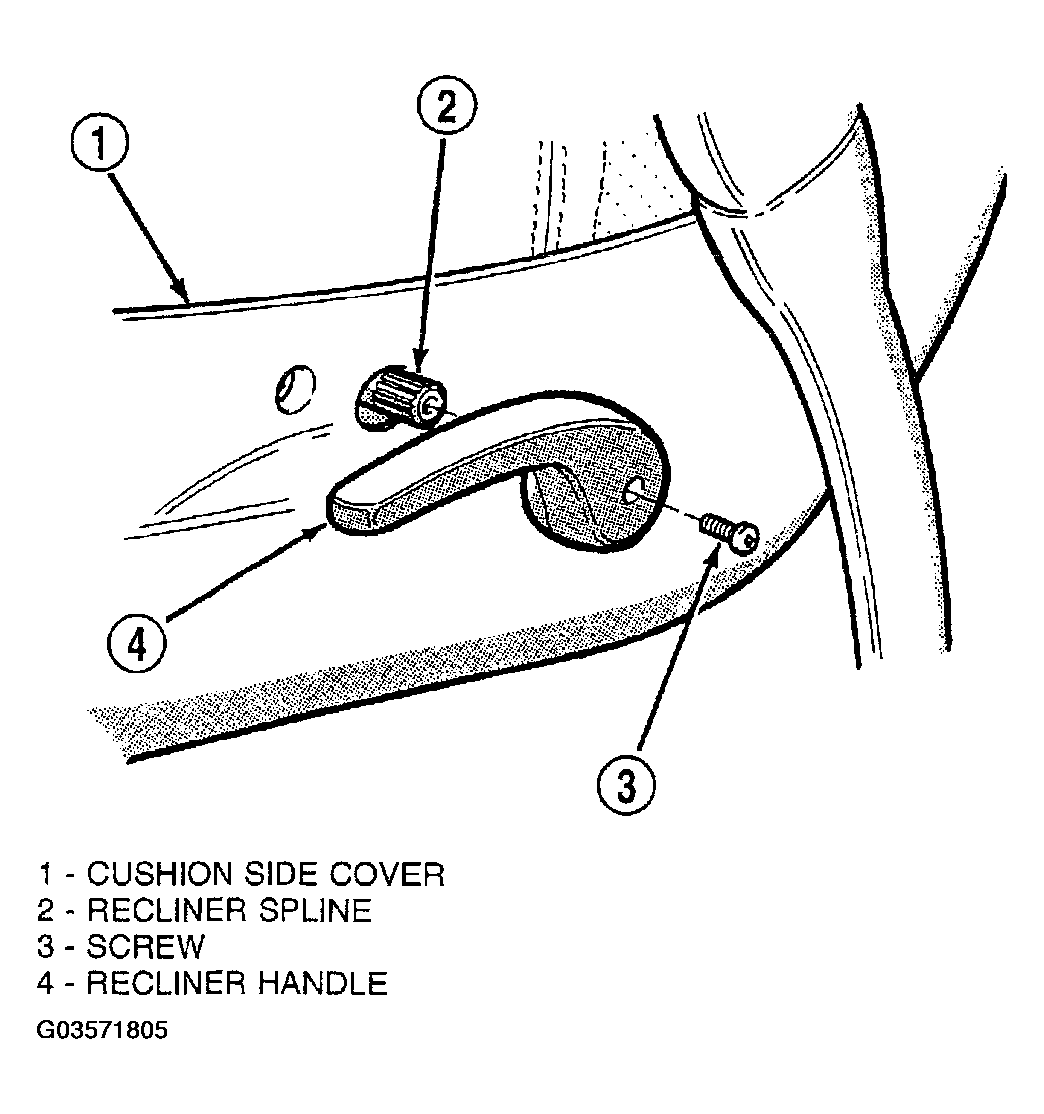

  2. Install screw to hold recliner handle to recliner spline shaft (Figure ).
