Glass Run Lower Channel: Installation

  1. Place door glass run lower channel through front access hole into key hole slots (Fig 1 ).

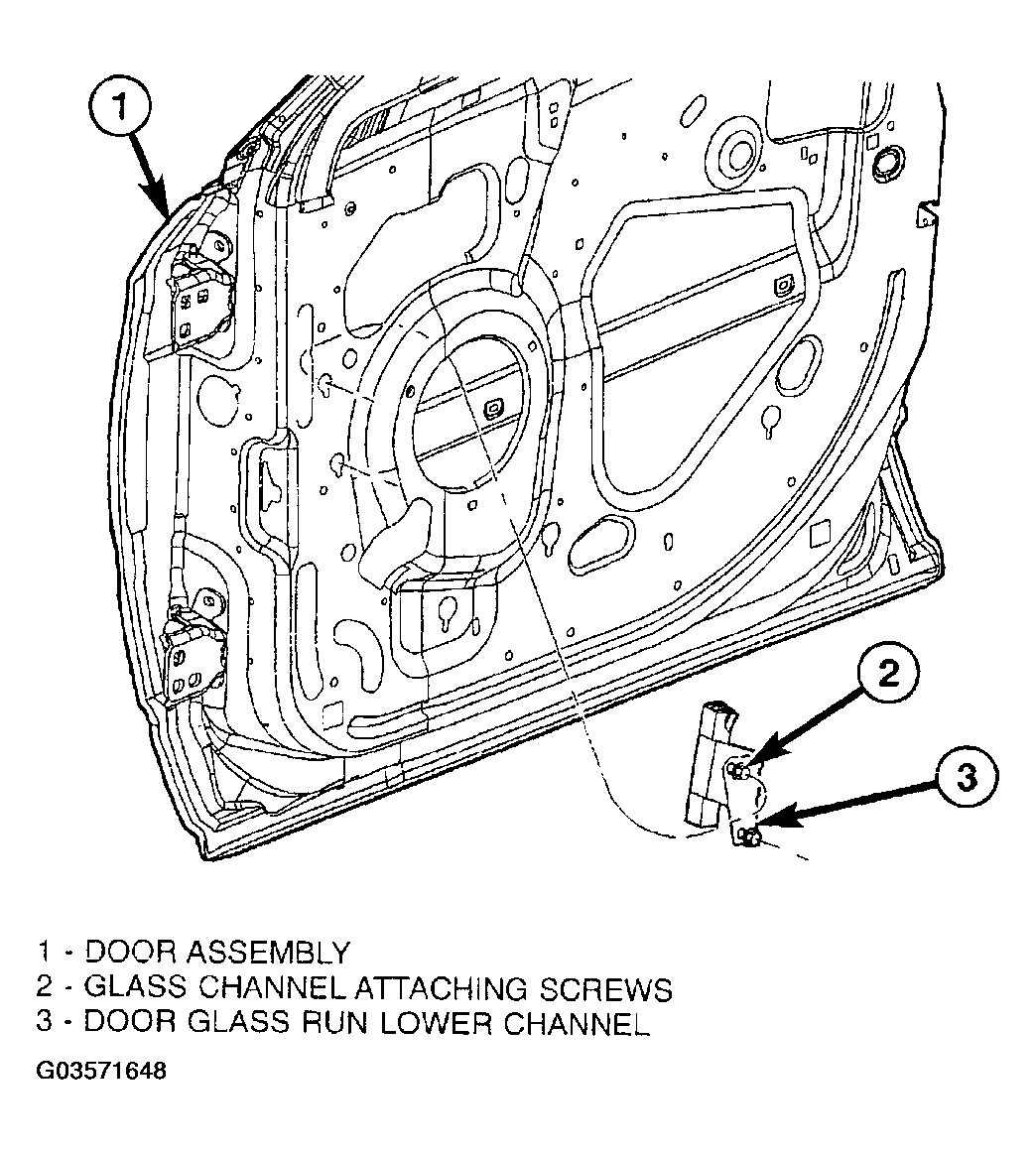

    Fig 1: Identifying Door Glass Run Lower Channel
    G03571648Courtesy of DAIMLERCHRYSLER CORP.
  2. Tighten screws attaching door glass run lower channel to inner door panel to 6 N.m (55 in. lbs.) torque.
  3. Place watershield into position. (Refer to INSTALLATION  ).
  4. Install door trim panel. (Refer to INSTALLATION  ).
