Door System - Rear: Door: Installation
- Steady door on lifting device and place door into position.

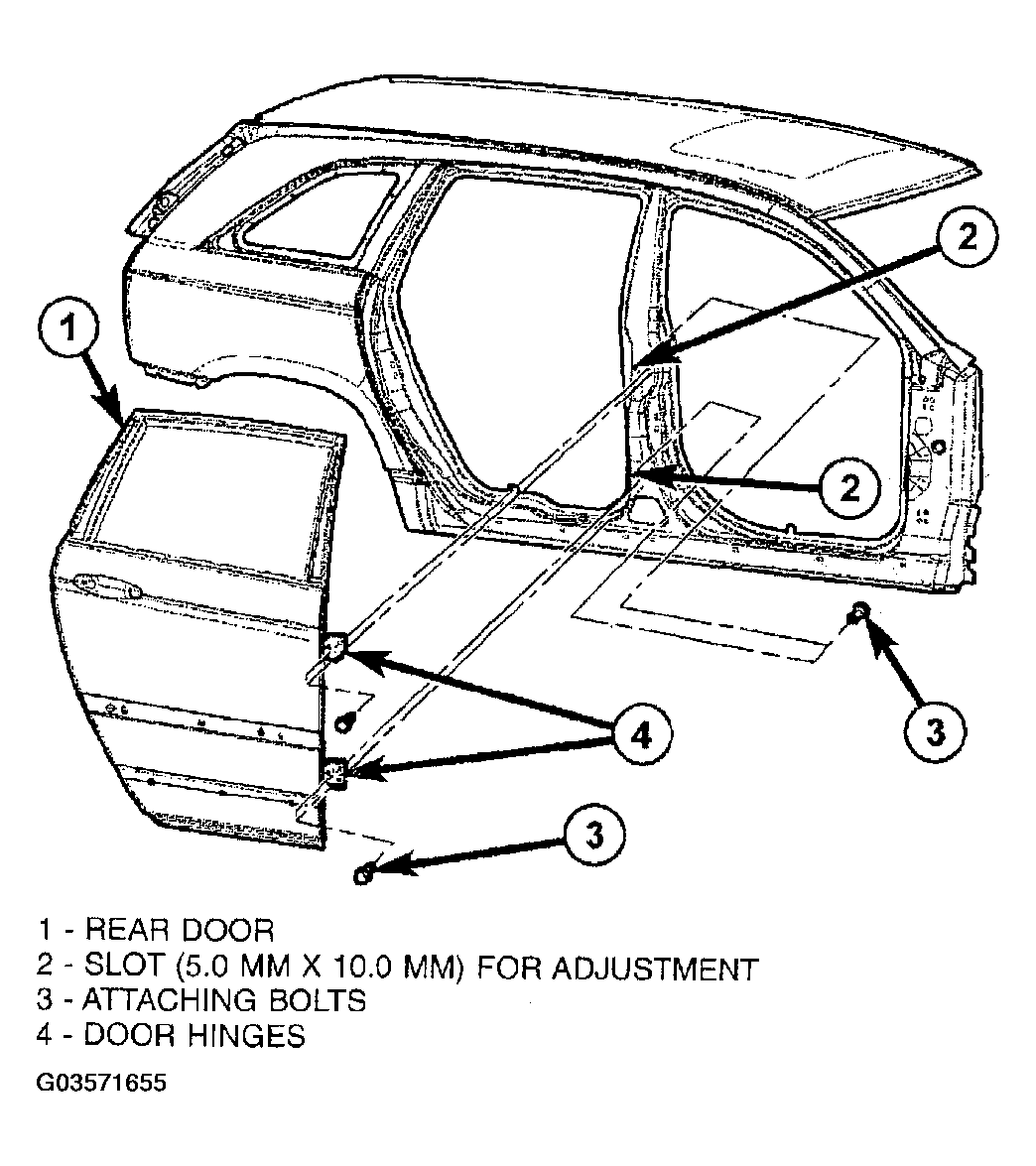

- Loosely install bolts attaching upper hinge to door end frame (Fig 2).
- Loosely install bolts attaching lower hinge to door end frame.

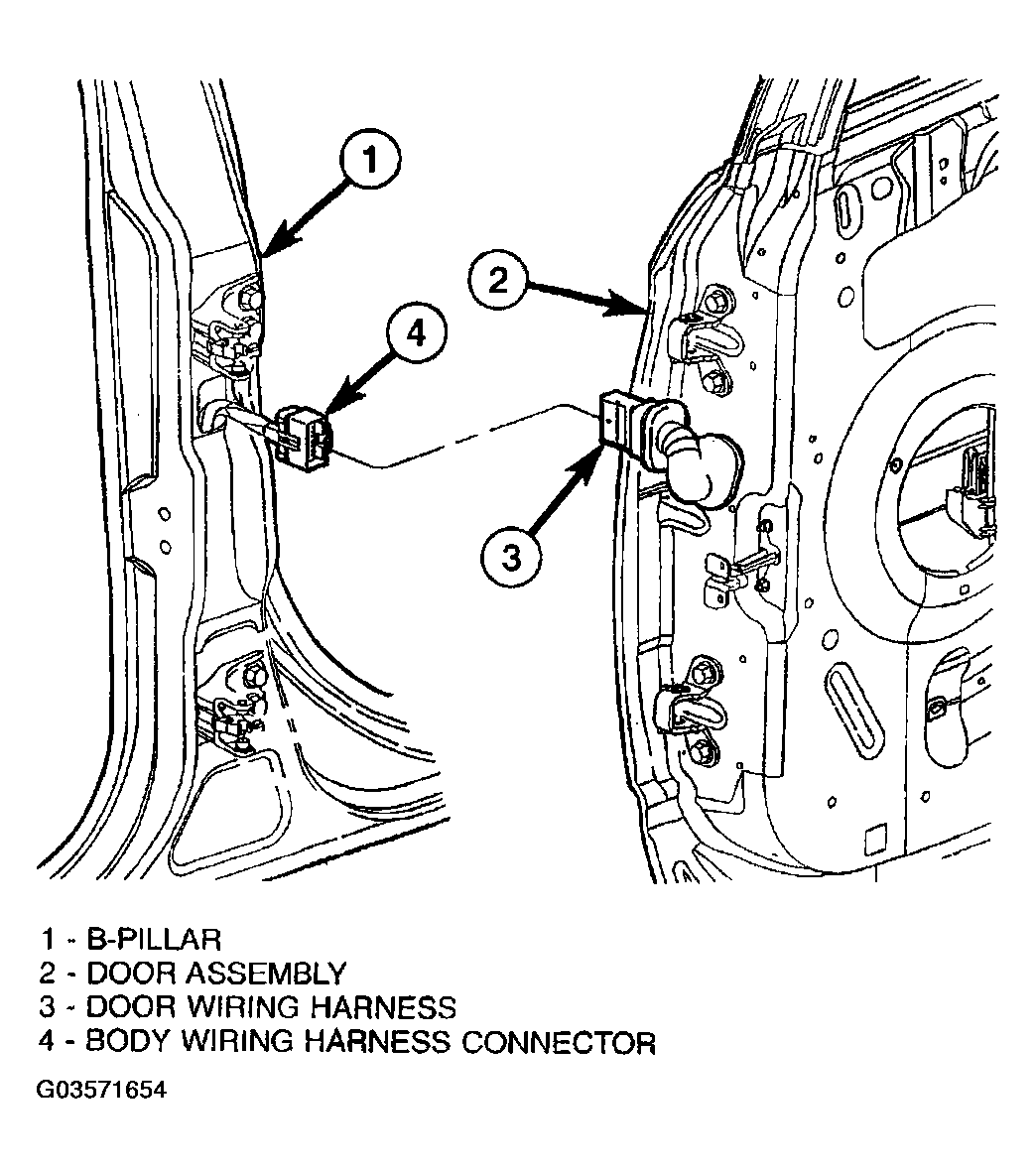

- Connect door harness to body wiring harness (Fig 1).
- Ensure lock tab attaching wire connector halves together is connected.
- Connect positive lock slide on the side of the wire connectors.
- Engage clips attaching door harness wire connector to inner fender brace.

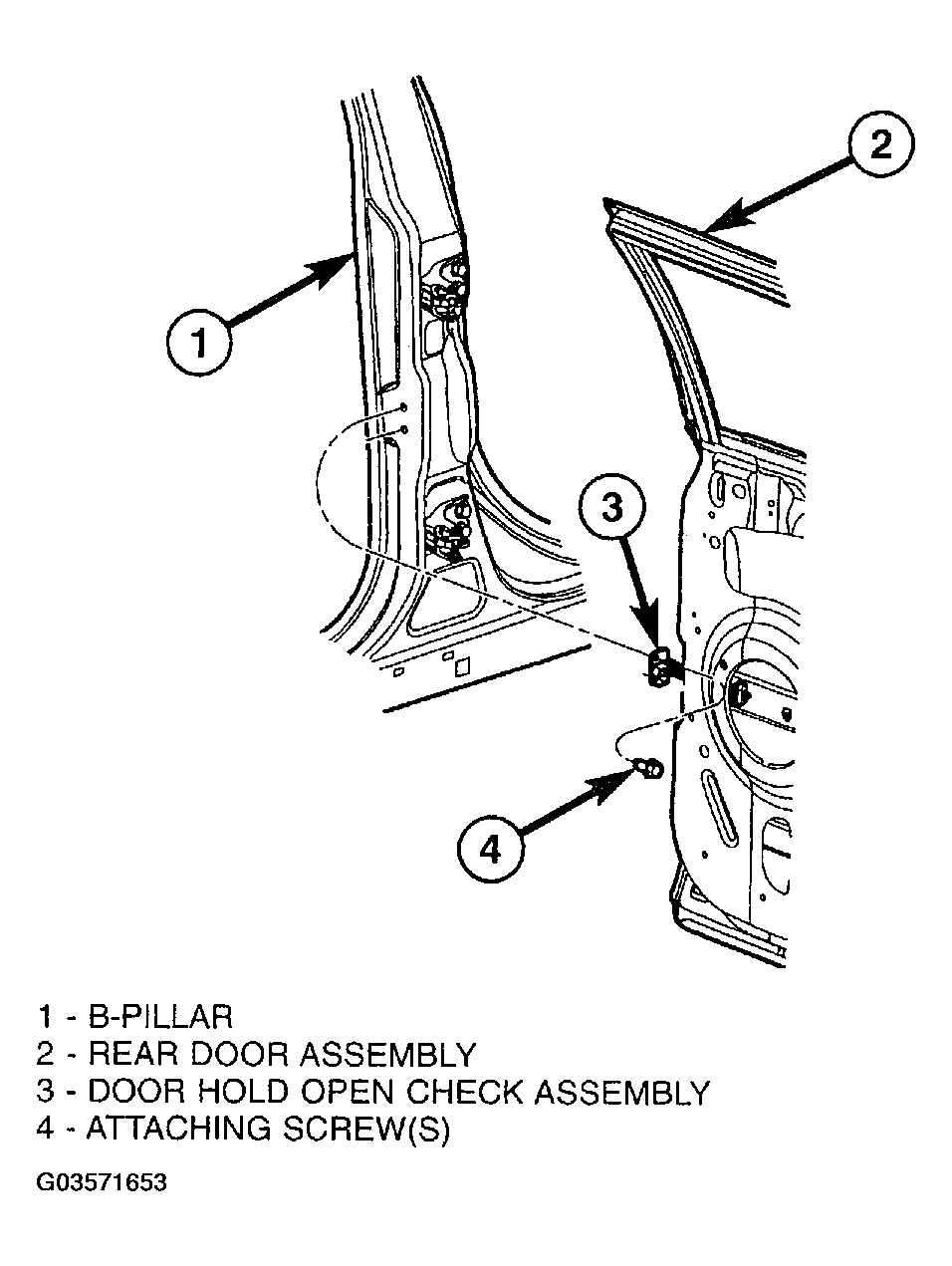

- Install screws attaching door check strap to B-pillar (Figure). (Refer to INSTALLATION ).
- Check door for alignment. (Refer to GAP AND FLUSH
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Install upper and lower B-pillar trim panel. Refer to B-PILLAR LOWER TRIM
) and (Refer to B-PILLAR UPPER TRIM
).
- Tighten hinge bolts. (Refer to INSTALLATION ).
