Exhaust Gas RECIRCULATION System: Tube: Installation
- Inspect rubber silicone seals on intake manifold end of EGR tube.

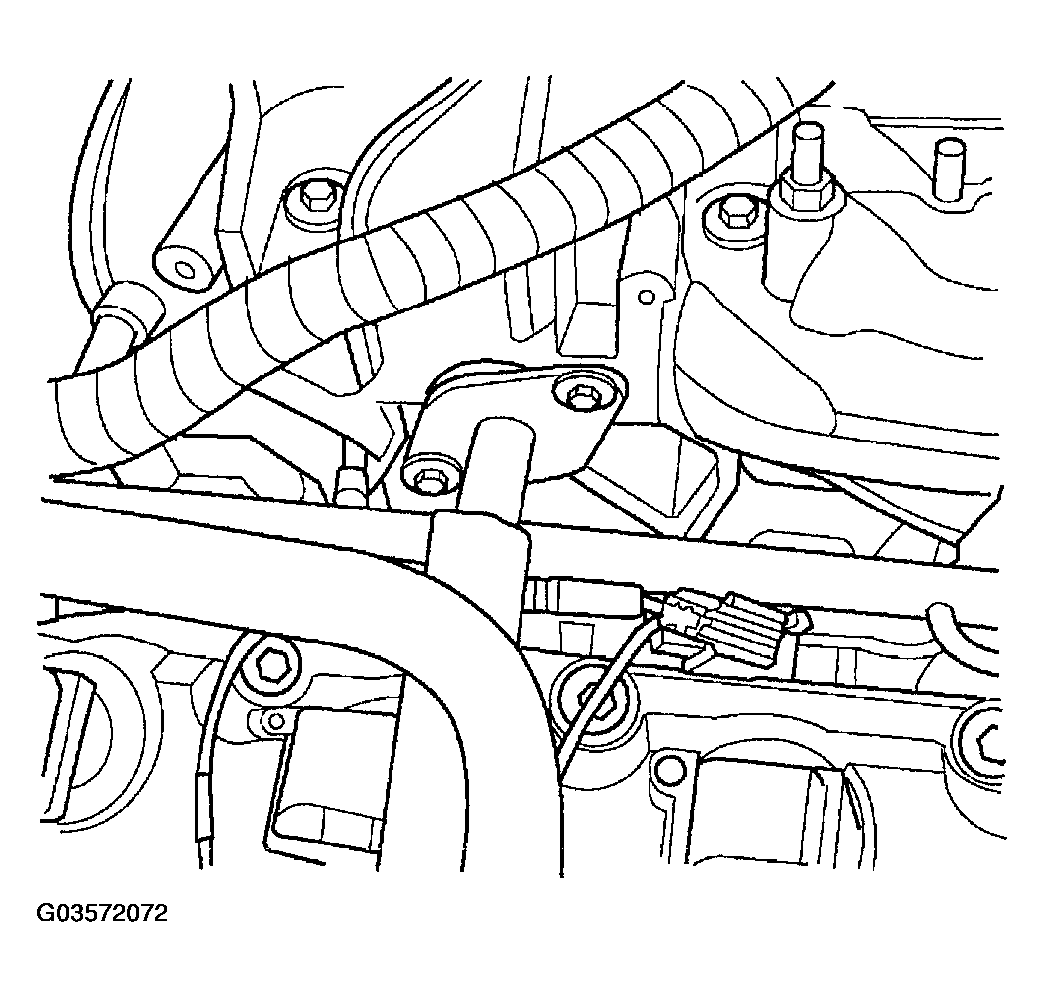

- Install upper tube into the intake manifold (Figure ), being careful that the silicone rubber seals are correctly installed and undamaged (Fig 1 ).

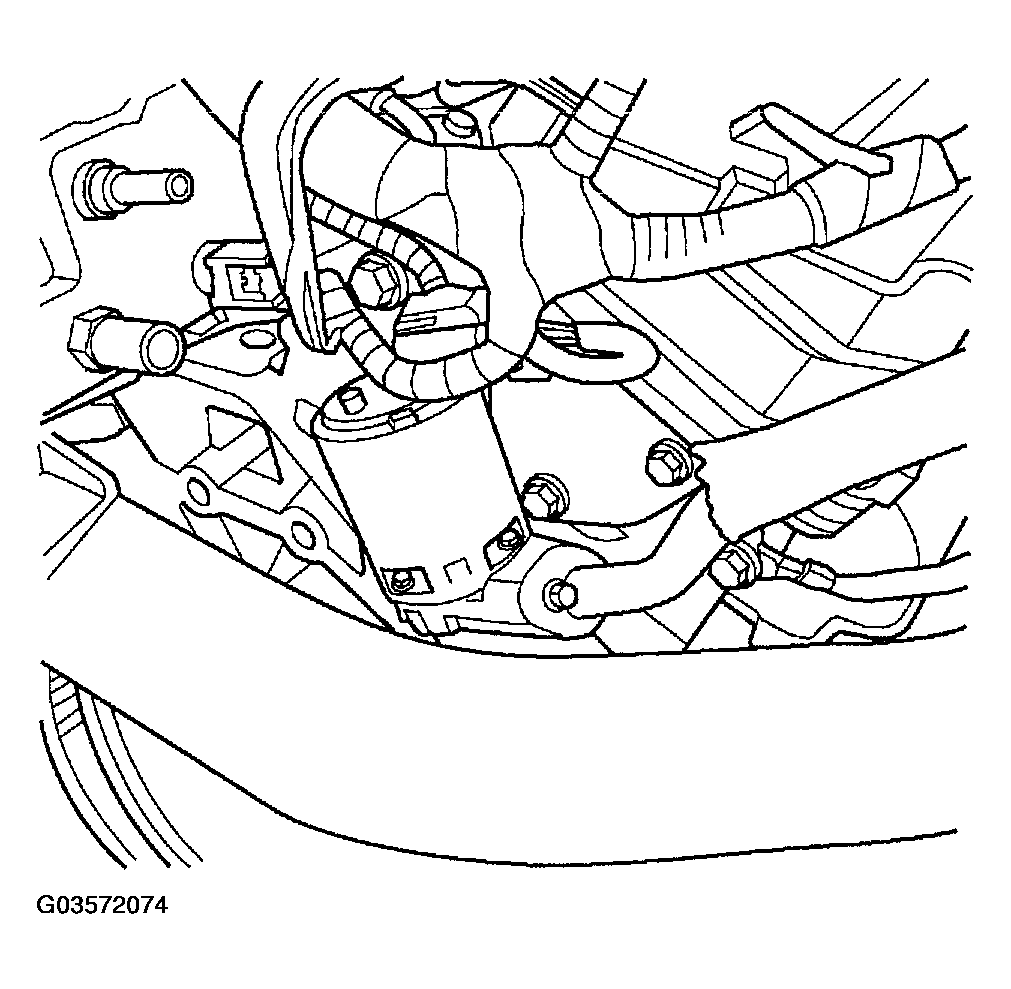

- Tighten the EGR upper tube to EGR valve bolts to 11 N.m (95 in. lbs.) torque (Figure ).

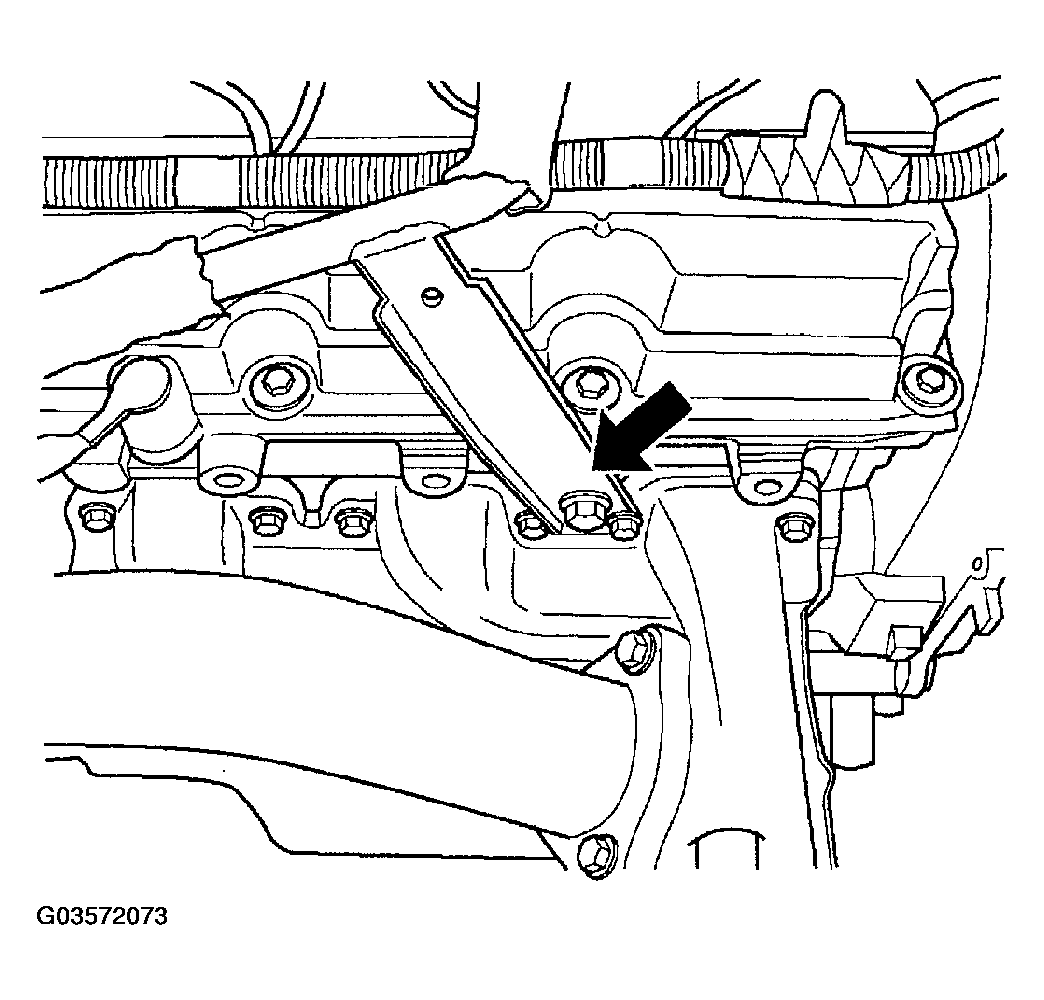

- Install the EGR tube bracket bolt and tighten (Figure ).
