Powertrain Control Module C4 - Black/Green 38 Way

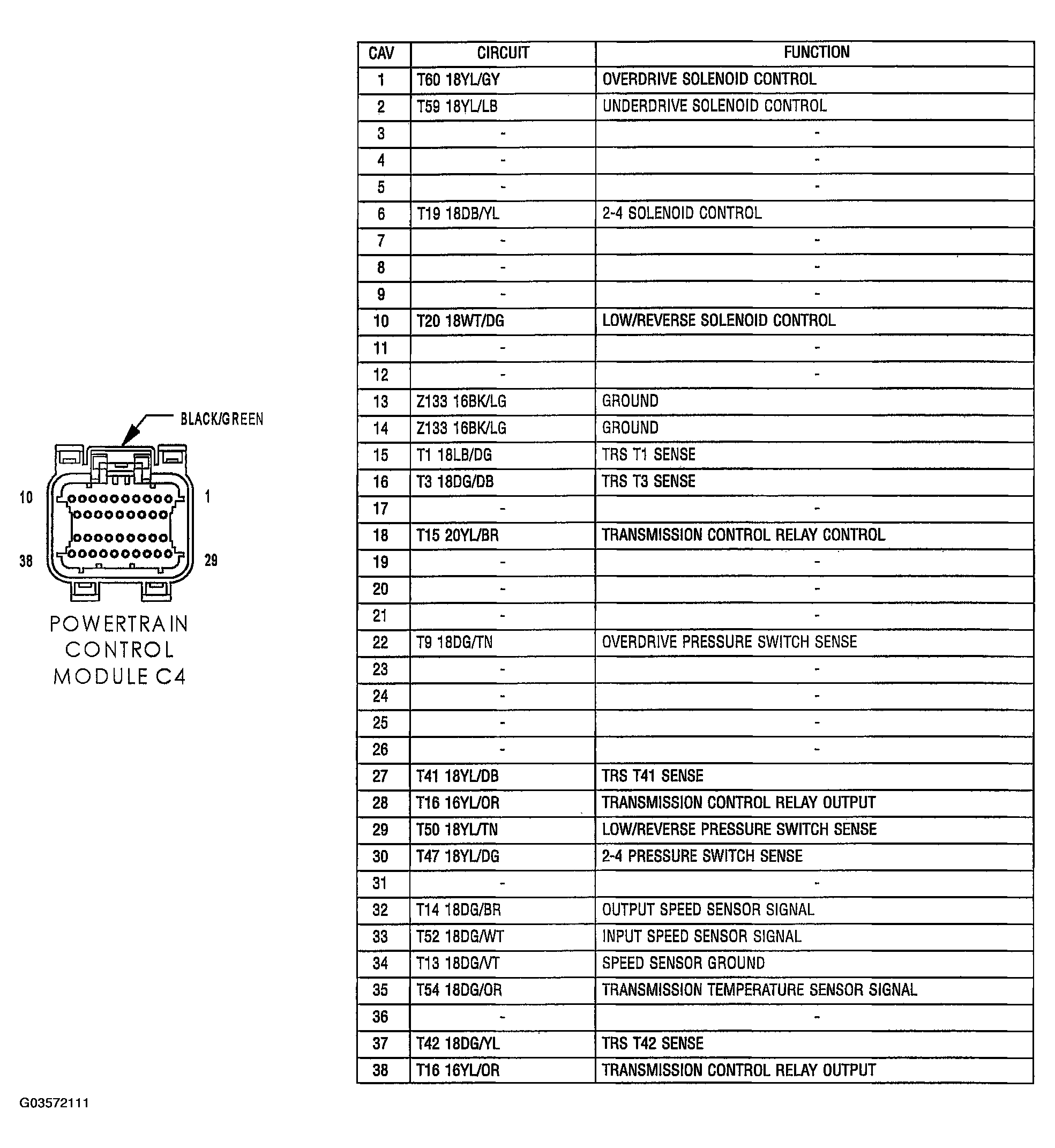

Fig 1: Identifying Powertrain Control Module C4 - Black/Green 38 Way Connectors
G03572111Courtesy of DAIMLERCHRYSLER CORP.
