Output Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Raise vehicle on hoist.
- Remove rear driveline module. (Refer to REMOVAL
)

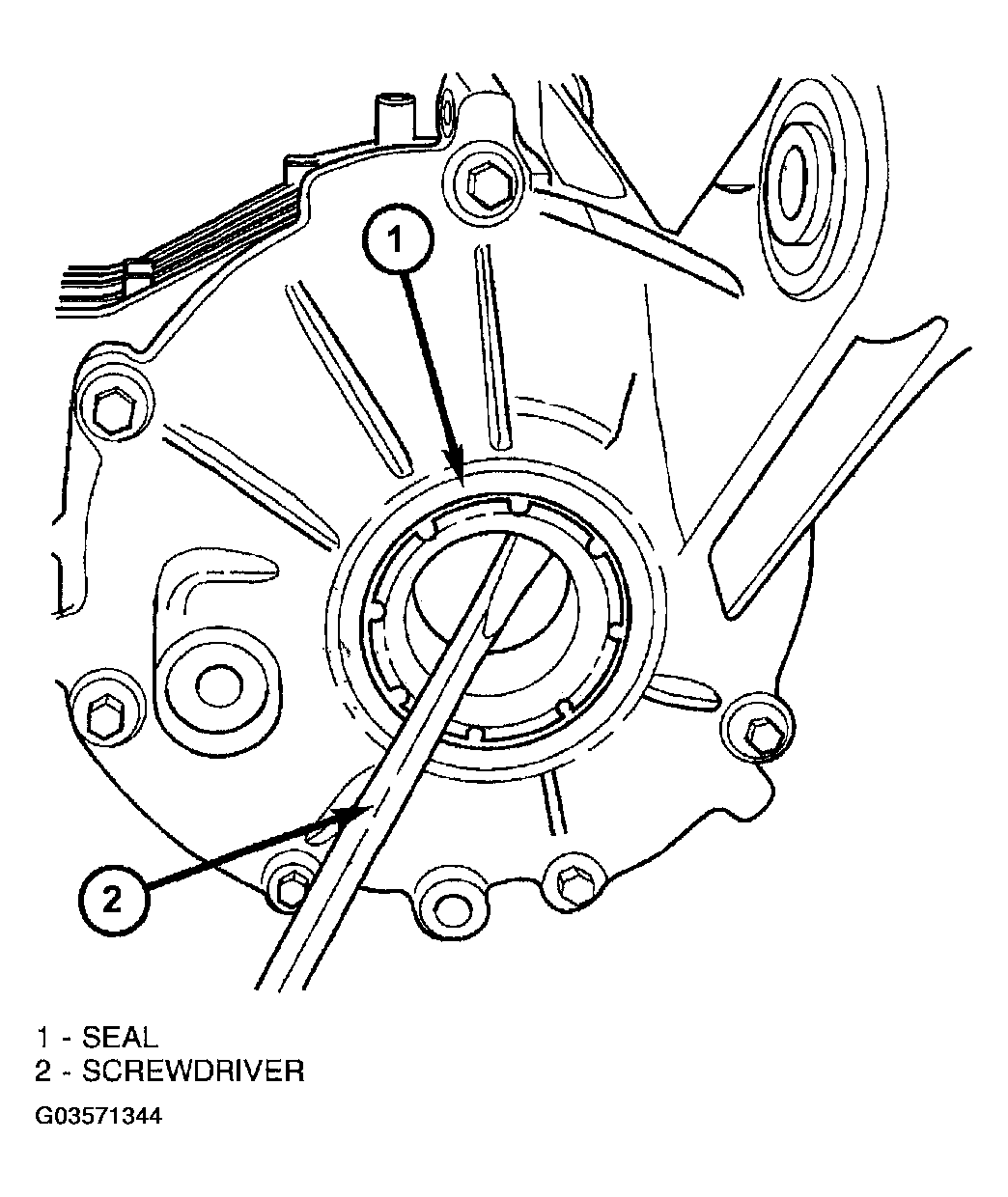

- Use suitable screwdriver to remove output seal (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
