Body Control Module

Body Control Module C1:






Body Control Module C2:

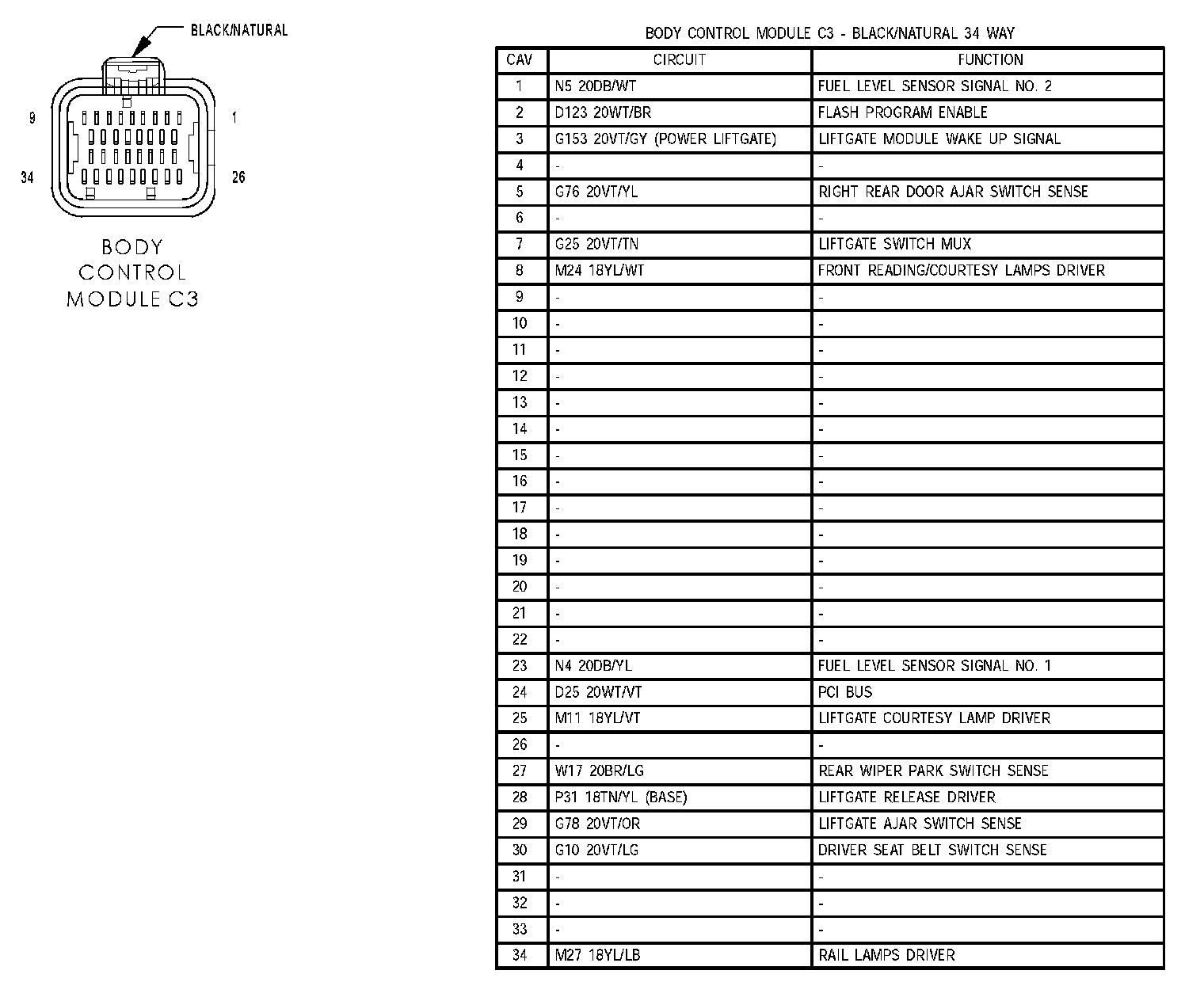

Body Control Module C3:






Body Control Module C4:

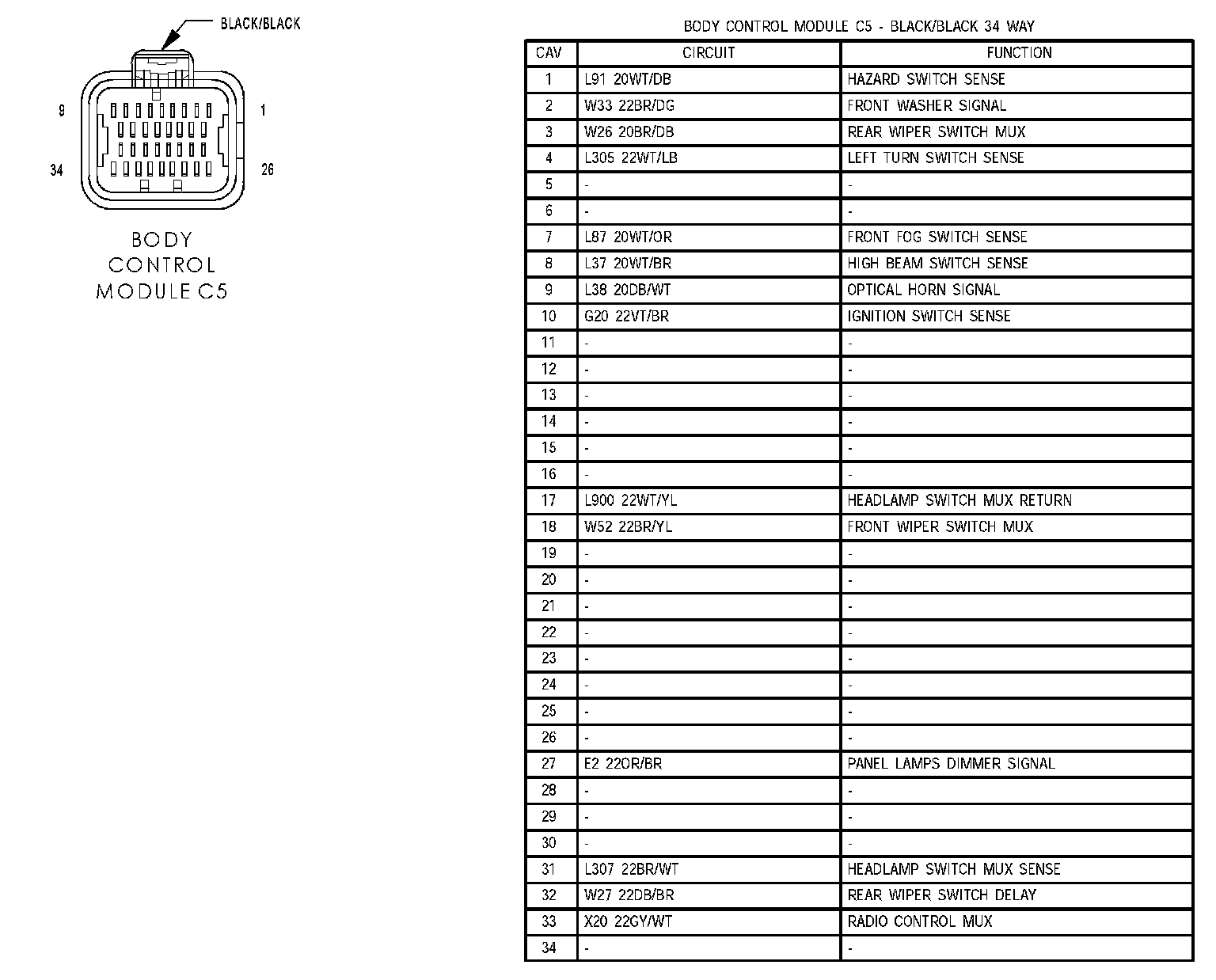

Body Control Module C5:
