Door Module

Door Module Driver C1:






Door Module Driver C2:






Door Module Driver C3:






Door Module-Passenger C1:






Door Module-Passenger C2:

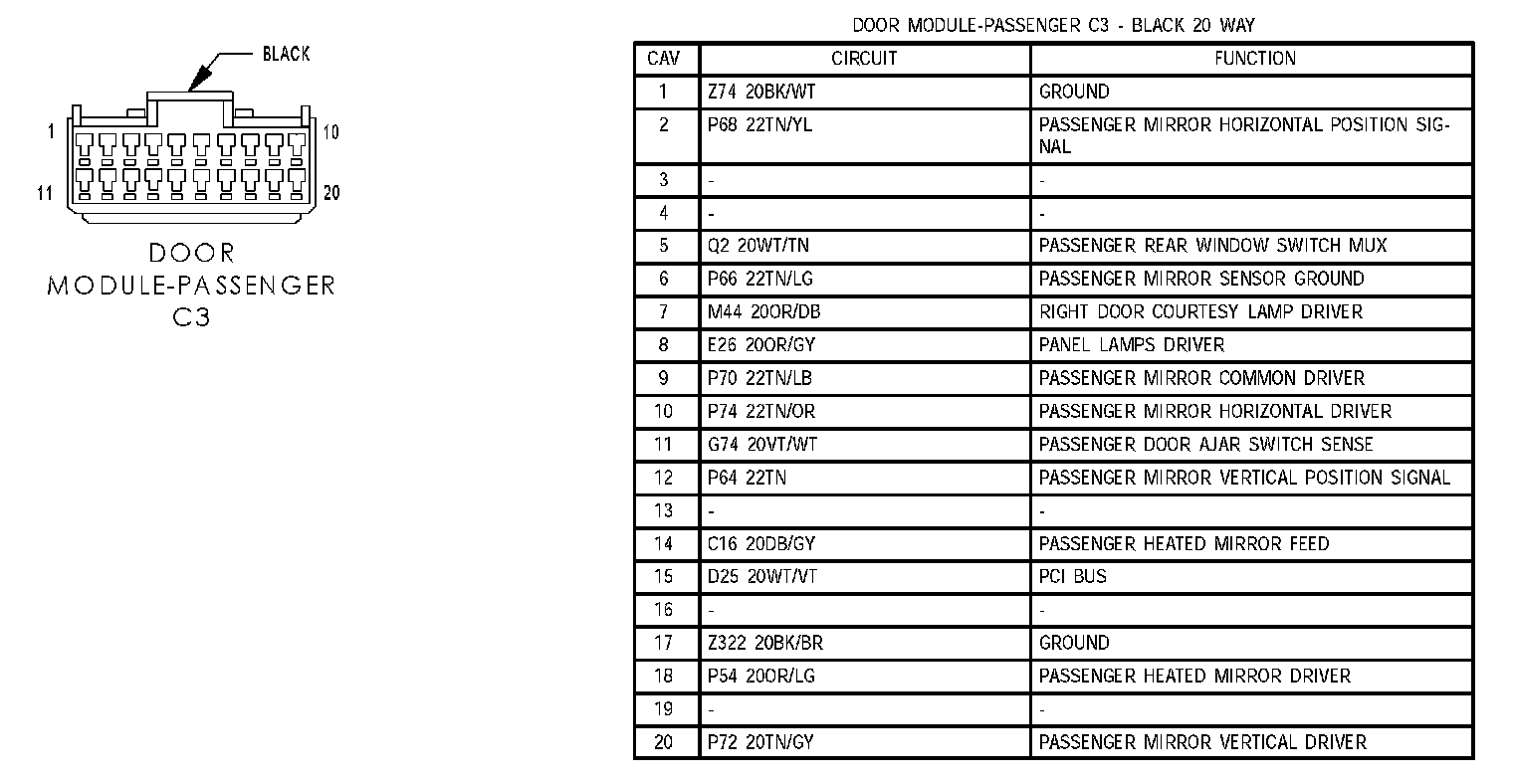

Door Module-Passenger C3:
