Door Module: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the front door.

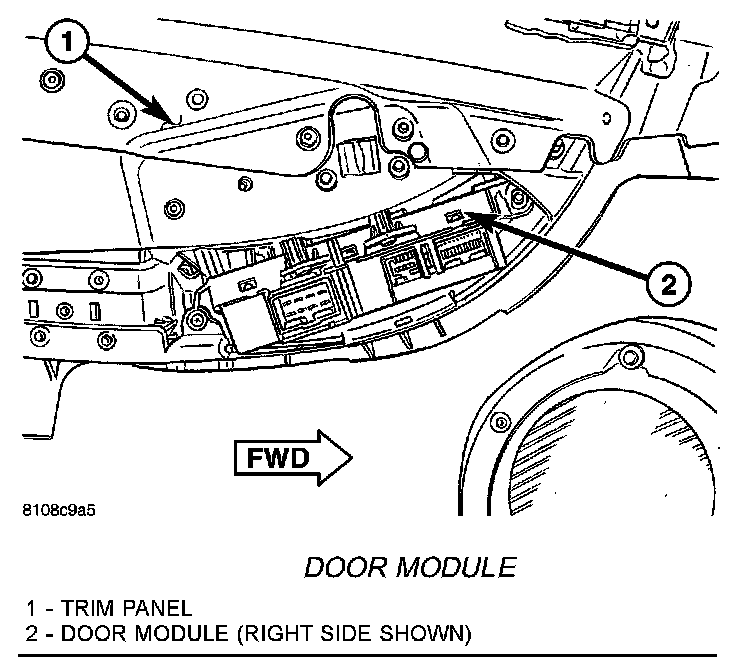

Door Module:

3. Remove the mounting fasteners.
4. Remove the door module from the front door trim panel.

INSTALLATION
1. Position the door module onto the front door trim panel.
2. Install the door module to the back of the front door trim panel. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Install the trim panel onto the front door.
4. Connect the battery negative cable.
