Installation

INSTALLATION
1. Install driveline module to transmission jack. Secure module to jack.

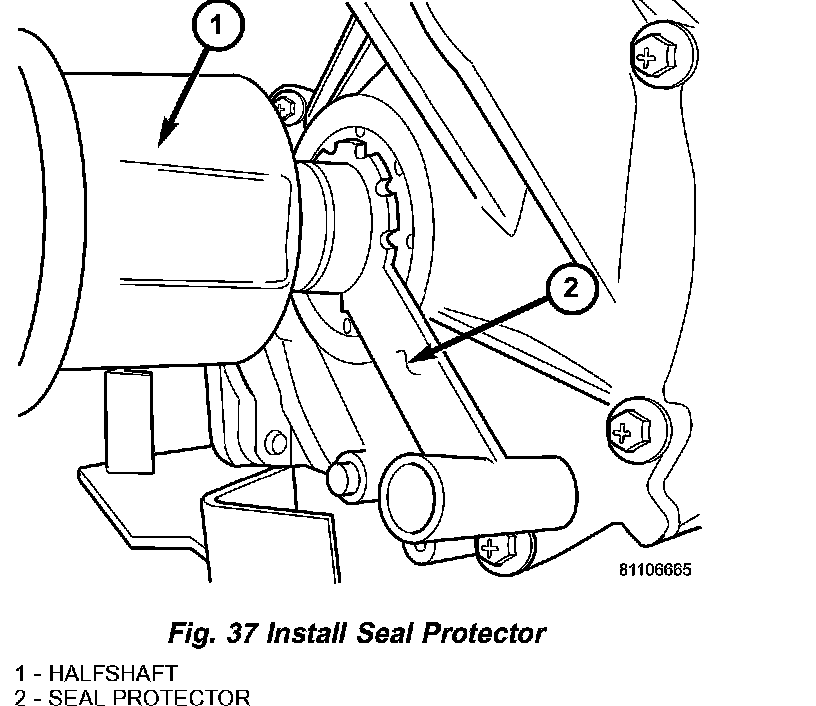

2. Using Tool 9099, load halfshafts to differential, one side at a time (Fig. 37).
3. Index and install propeller shaft to driveline module flange. Install, but do not tighten, three (3) propeller shaft-to-driveline module bolts.

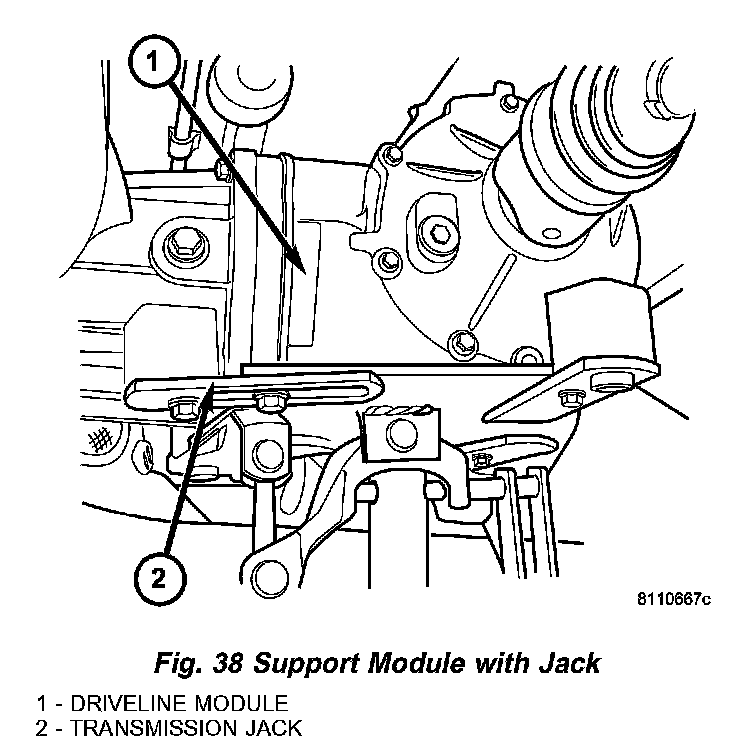

4. Raise driveline module into position (Fig. 38).

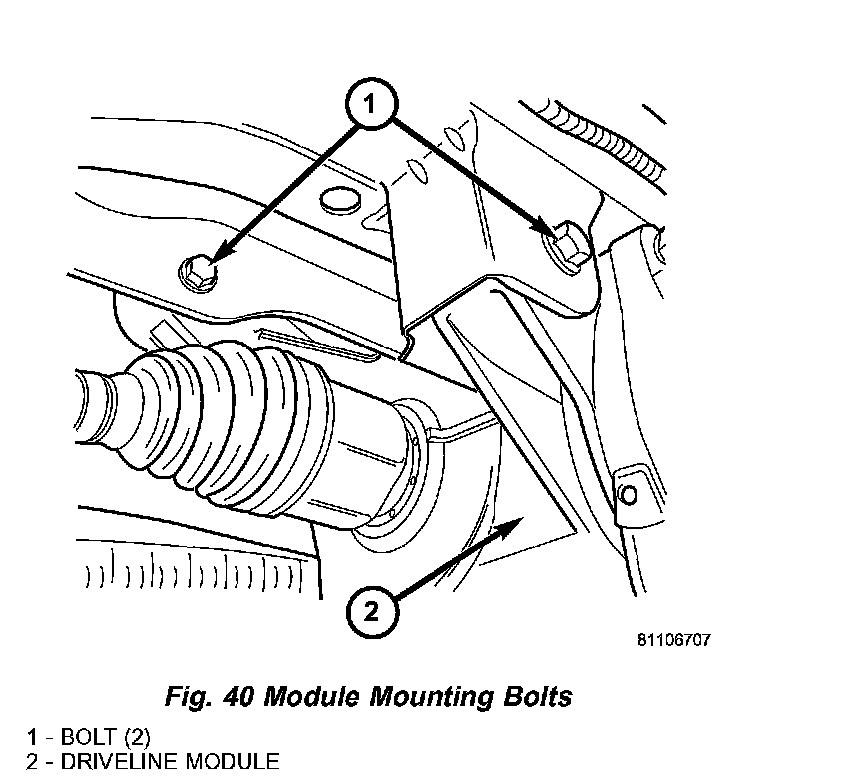

5. Install and torque module-to-cradle bolts to 102 Nm (75 ft. lbs.) (Fig. 39) (Fig. 40).
6. Torque propeller shaft-to-driveline module bolts to 54 Nm (40 ft. lbs.)
7. Raise exhaust system into position and install hanger/brackets.
8. Fill differential with 0.7L (0.74 qts.) of Mopar Gear and Axle Lubricant (75W-90).
9. Fill overrunning clutch housing with 0.58L (0.61 qts.) of Mopar ATF +4.
