Disassembly And Assembly

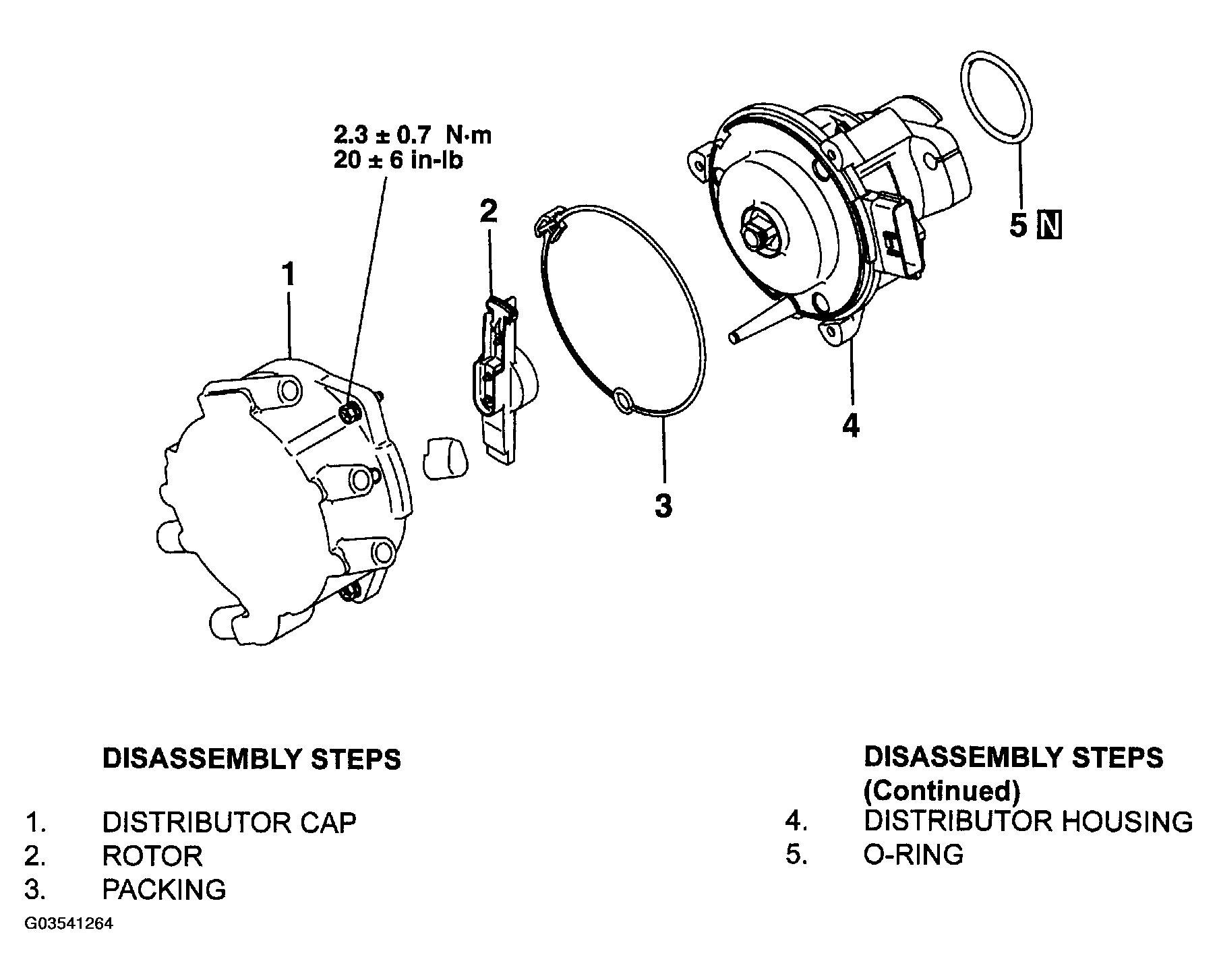

Fig 1: Exploded View Of Distributors
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
