Magnetic Switch Return Test

CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent the coil from burning.
  1. Disconnect the field coil wire from the M-terminal of the magnetic switch. See Fig 1 and Fig 2.
  2. Connect a 12-volt battery between the M-terminal and body.
    WARNING: Be careful not to get your fingers caught when pulling out the pinion.
  3. Pull the pinion out and release. If the pinion quickly returns to its original position, everything is operating properly. If it doesn't, replace the magnetic switch.

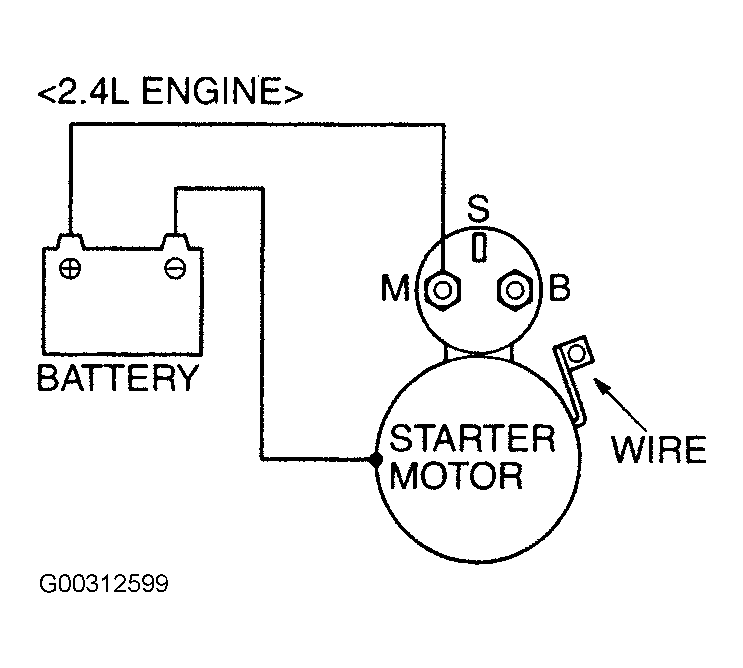

    Fig 1: 2.4L Engine M-terminal
    G00312599Courtesy of CHRYSLER CORP.

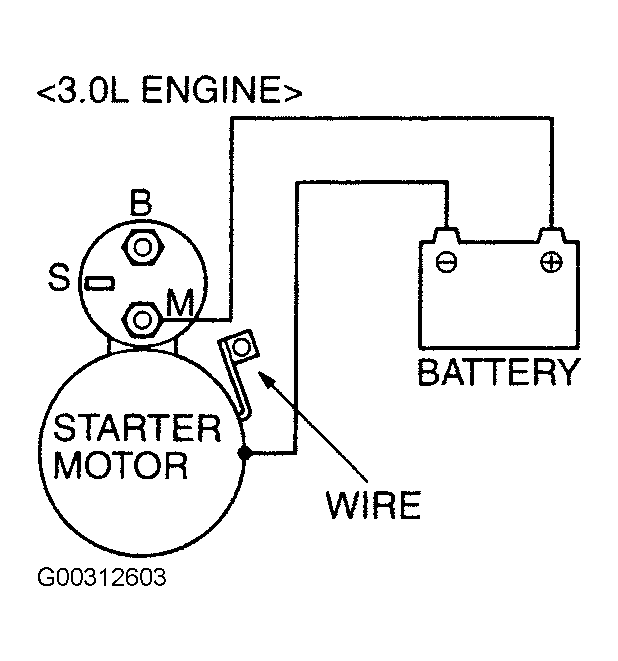

    Fig 2: 3.0L Engine M-terminal
    G00312603Courtesy of CHRYSLER CORP.
